File:Amiga A501 RAM and clock board layout (Commodore 312604).png
Size of this preview: 799 × 600 pixels. Other resolution: 2,200 × 1,652 pixels.
Original file (2,200 × 1,652 pixels, file size: 214 KB, MIME type: image/png)
Summary
edit.png&action=edit§ion=1){kind=link}

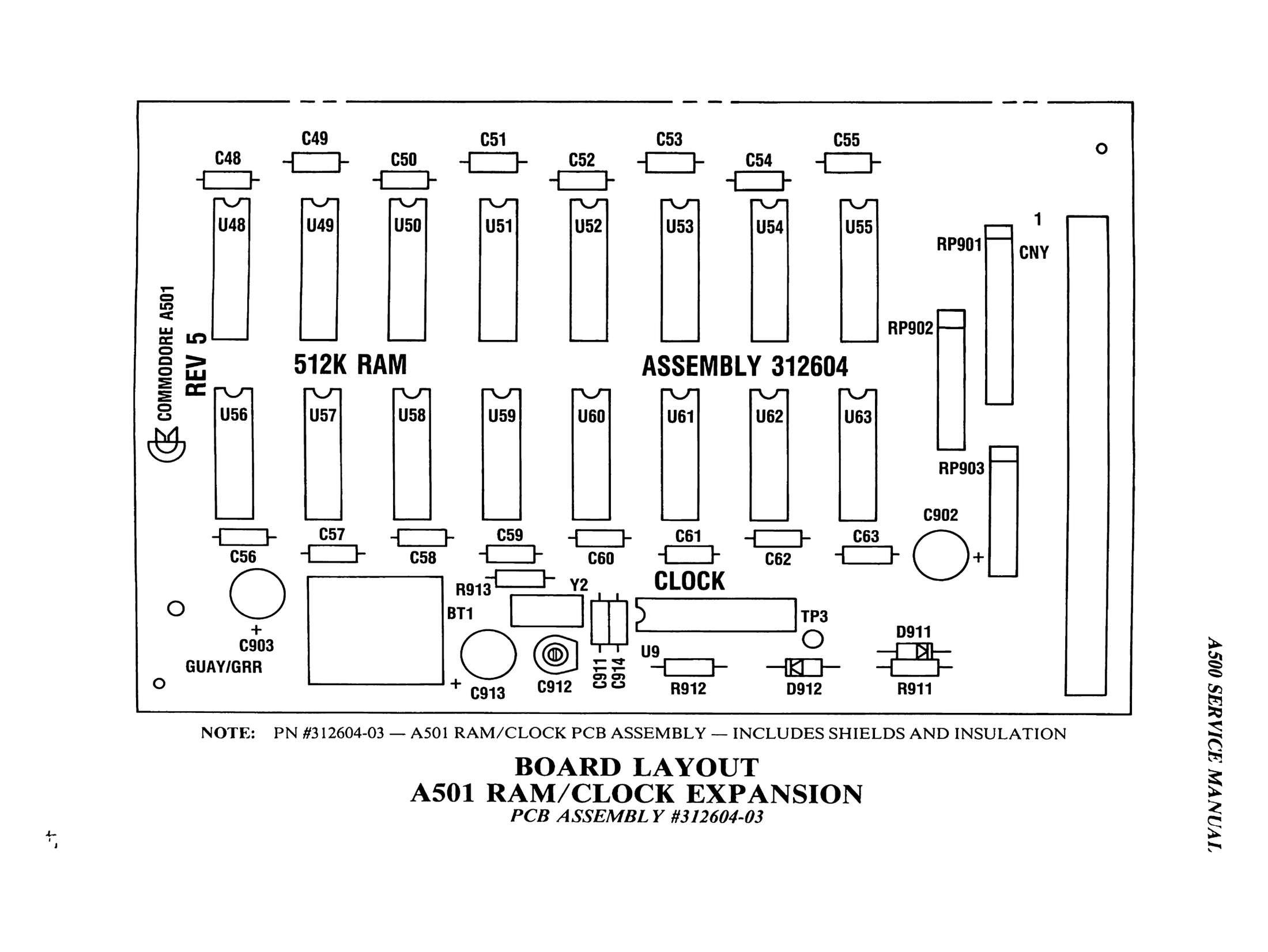

Commodore's board layout for the A501 512K RAM and clock expansion, assembly 312604, showing the RAM, the clock chip U9 and the battery position BT1 on the silkscreen.
Source
edit.png&action=edit§ion=2){kind=link}
Rendered from PDF page 55 of the A500 Service Manual, PN-314981-04, October 1990 (Amiga 500 Service Manual (314981-04)), hosted on this wiki.
Author
edit.png&action=edit§ion=3){kind=link}
Commodore Business Machines.
Licence
edit.png&action=edit§ion=4){kind=link}
Copyright Commodore. Hosted for preservation and repair reference, with the source cited.
