File:Amstrad PCW9256 CPU PCB layout.png
Size of this preview: 424 × 599 pixels. Other resolution: 1,556 × 2,200 pixels.
Original file (1,556 × 2,200 pixels, file size: 1.21 MB, MIME type: image/png)
Summary
[edit | edit source]

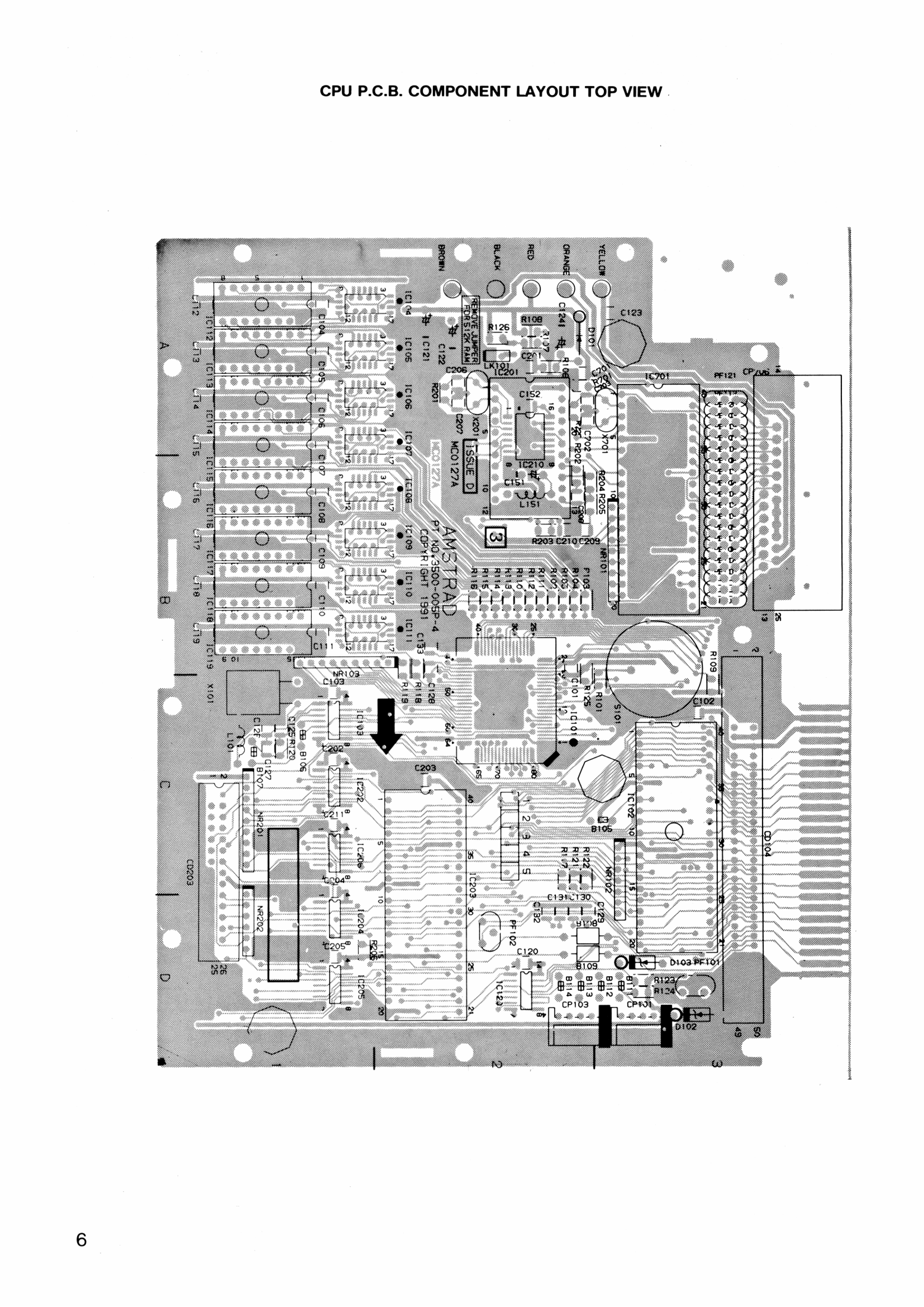

Component layout of the PCW9256 CPU board (MC0127), top view.
Source
[edit | edit source]
Rendered at 200 dpi from the hosted File:Amstrad PCW 9256 Service Manual.pdf (Amstrad, PCW9256 Personal Computer Word Processor Service Manual), PDF page 6, printed page 6, with the contrast increased.
Author
[edit | edit source]
Amstrad plc.
Licence
[edit | edit source]
Copyright Amstrad plc. Hosted for preservation and repair reference, with the source cited.
