File:Apple Studio Display 17-inch CRT exploded view (Service Source).png
Size of this preview: 401 × 599 pixels. Other resolution: 1,241 × 1,853 pixels.
Original file (1,241 × 1,853 pixels, file size: 580 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

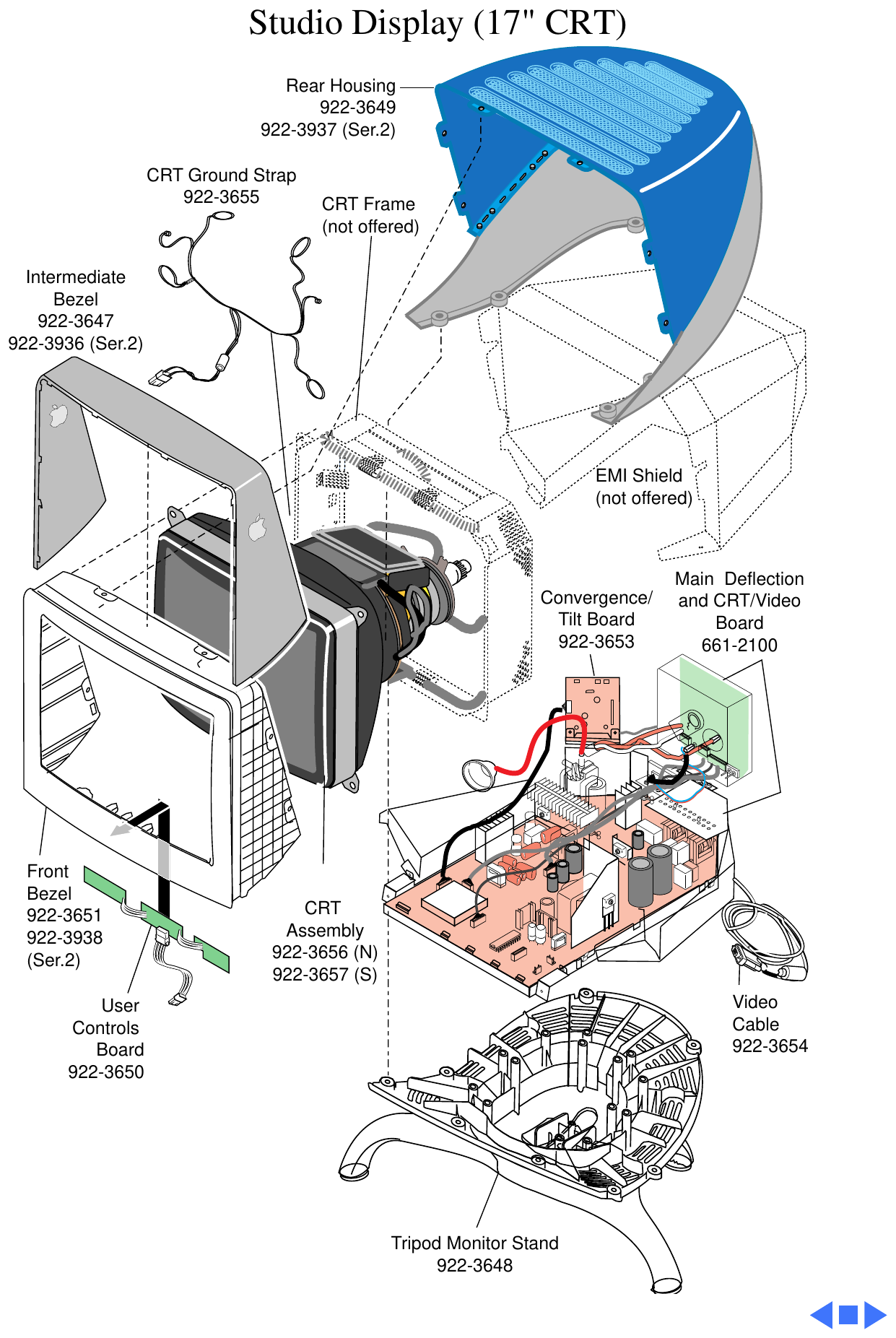

Apple's exploded view of the Studio Display (17-inch CRT) with service part numbers for the housings, boards, cables and tripod stand.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:Studio display 17.pdf, Exploded View (PDF page 128).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Figure reproduced from Apple's service documentation for repair reference, with the source cited.
