File:Apple Two-Page Monochrome Monitor exploded view (Service Source).png
Size of this preview: 395 × 599 pixels. Other resolution: 1,257 × 1,907 pixels.
Original file (1,257 × 1,907 pixels, file size: 276 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

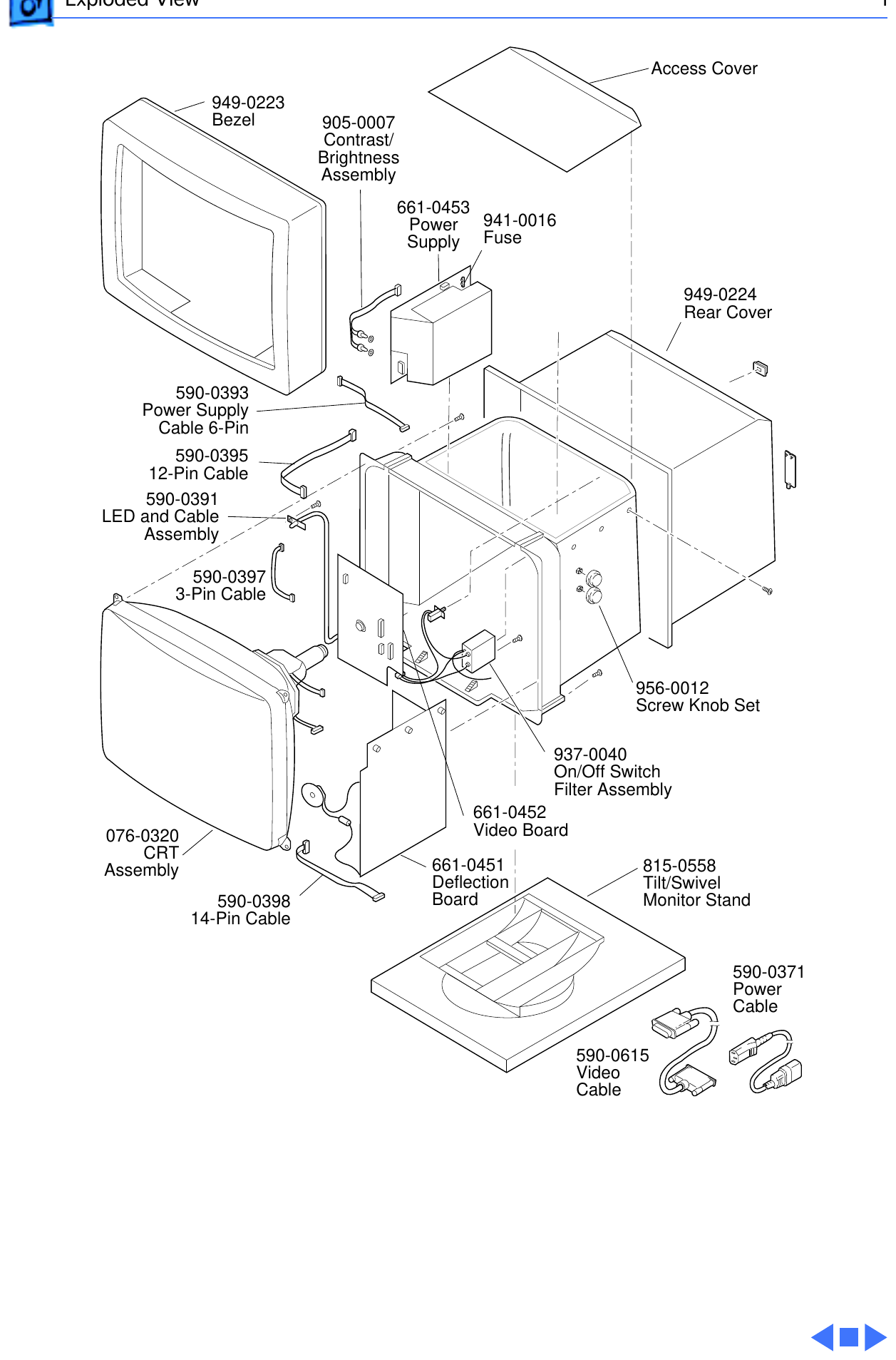

Apple's exploded view of the Apple Two-Page Monochrome Monitor with service part numbers.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:Twopage monochrome monitor.pdf, Exploded View (PDF page 98).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Figure reproduced from Apple's service documentation for repair reference, with the source cited.
