File:Atari 810 rear board silkscreen (field service manual).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

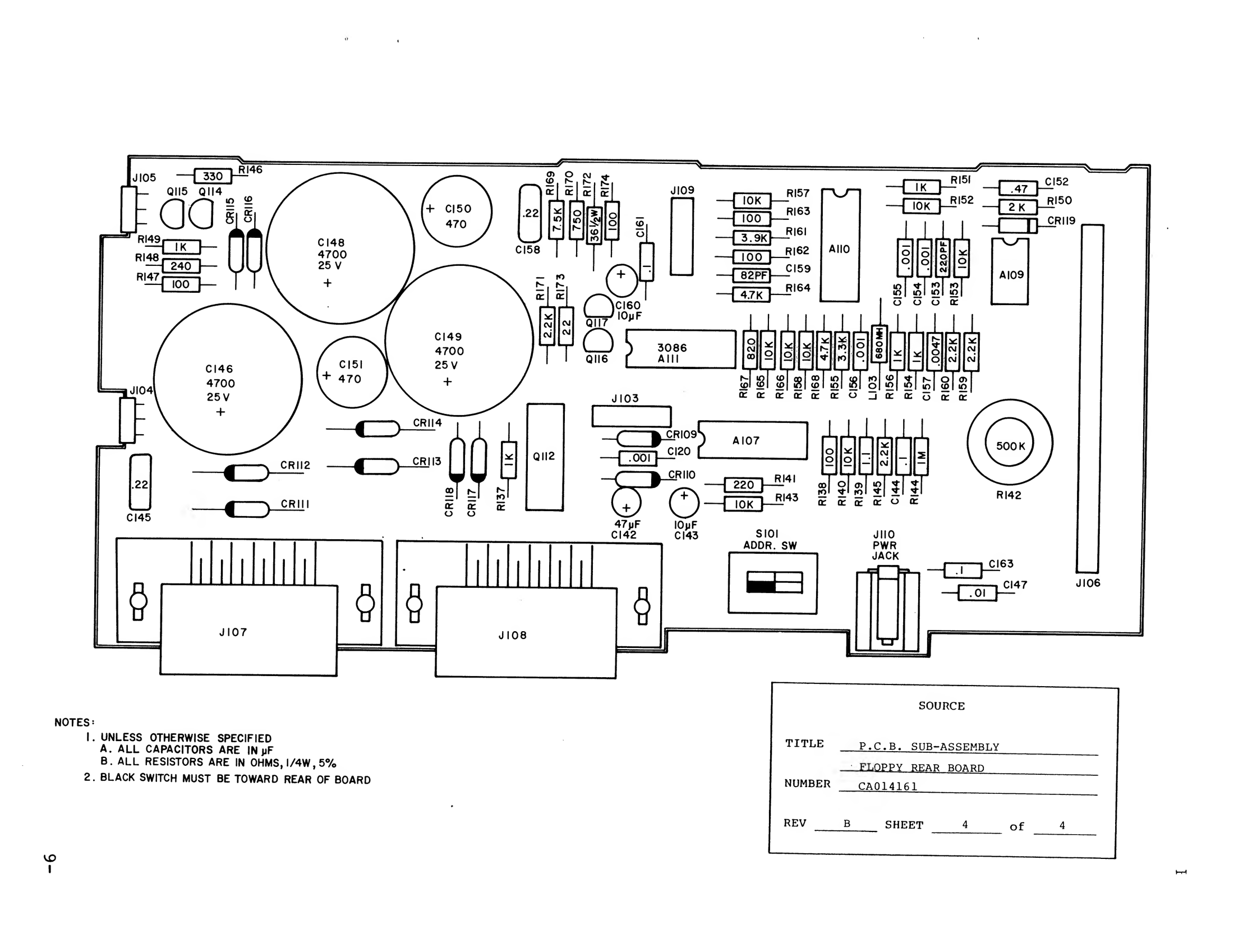

Silkscreen drawing of the Atari 810 floppy rear board, P.C.B. sub-assembly CA014161, Rev. B, sheet 4 of 4, from the appendix of the Atari 810 Disk Drive Field Service Manual (FS015854 Rev. 1). It shows the position and value of every component, including the electrolytic capacitors C142, C143, C146, C148, C149, C150, C151 and C160 and the speed control R142.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered at 300 dpi from File:Atari 810 Disk Drive Field Service Manual FS015854 Rev 1.pdf, page 150 of the PDF, rotated to read horizontally, converted to greyscale and downscaled, 2026-10-04.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Atari, Inc. Reproduced from the service manual for repair reference.
