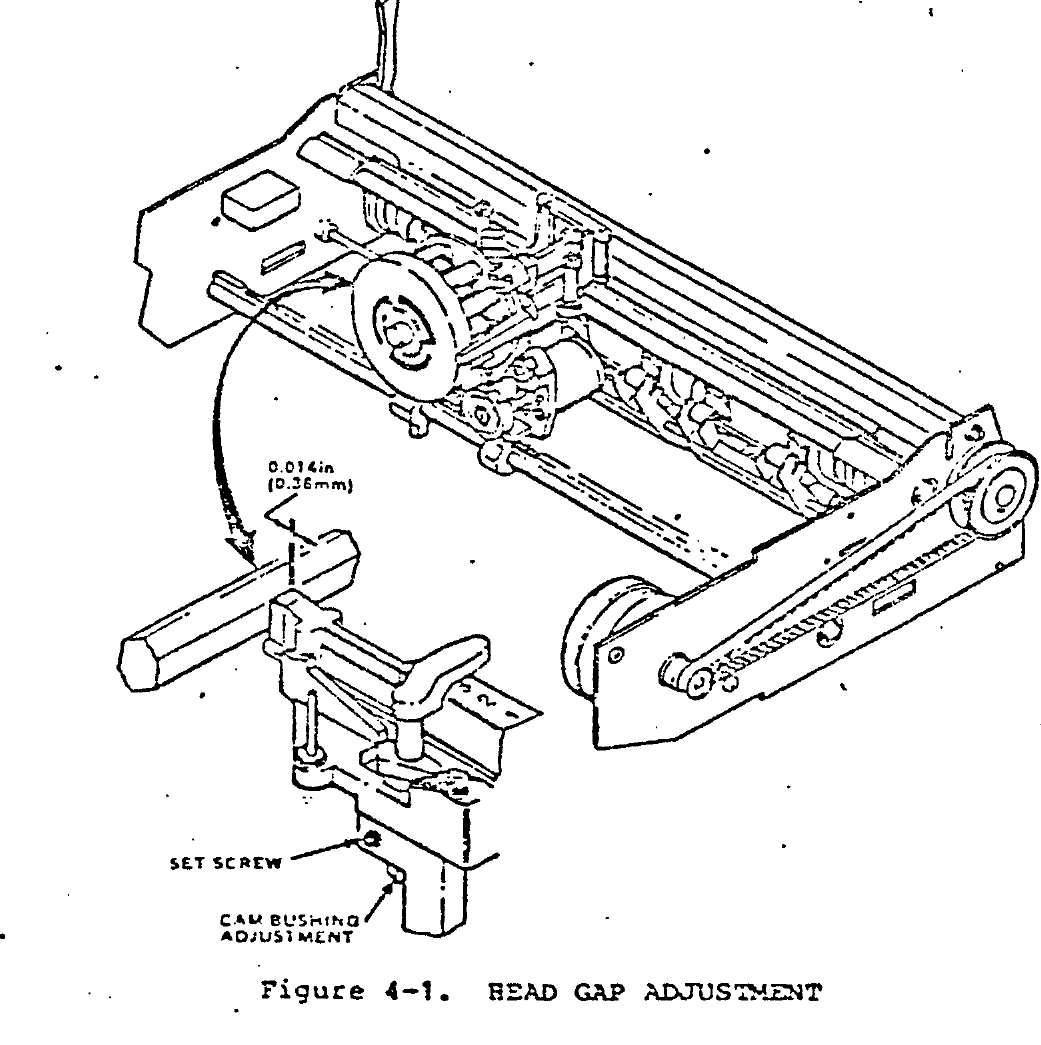

Figure 4-1 of the Atari 825 Printer Field Service Manual, "Head Gap Adjustment": the print mechanism with the 0.014 in (0.36 mm) gap between print head nose and platen, the set screw and the cam bushing adjustment under the head carriage.
