File:Atari 850 power supply schematic (service manual figure A3-1).png
Size of this preview: 800 × 530 pixels. Other resolution: 1,780 × 1,180 pixels.
Original file (1,780 × 1,180 pixels, file size: 75 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

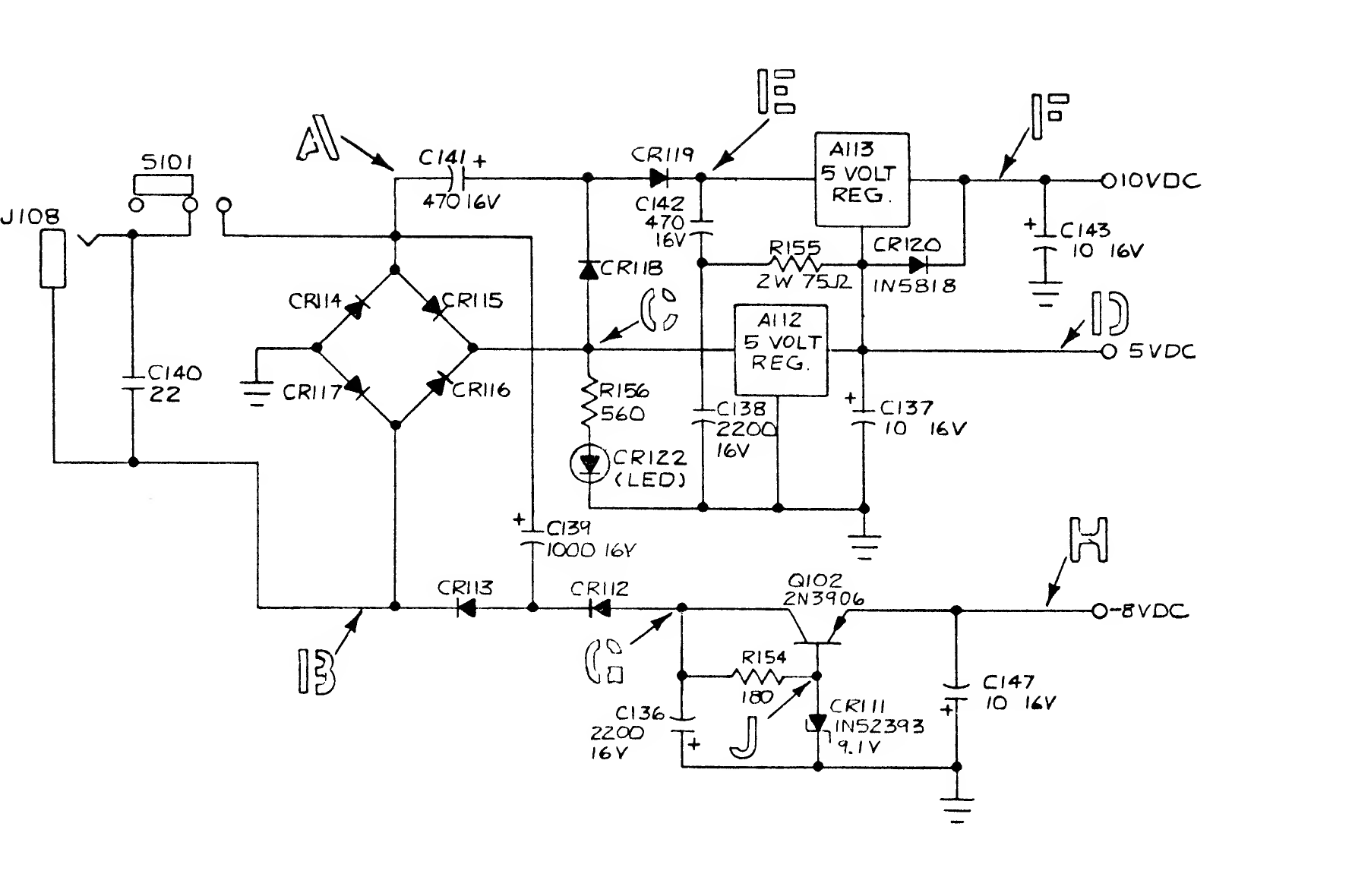

Figure A3-1 of Atari's 850 Interface Module Service Manual (CS 400/800-S004-B), page A3-2: schematic of the 850's on-board power supply, with test points A to J, the bridge rectifier CR114 to CR117, the regulators A112 (+5 V) and A113 (+10 V), the -8 V pass transistor Q102 and zener CR111, and the electrolytic capacitors C136 to C143 and C147.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered at 300 dpi from File:Atari 850 Interface Module Service Manual CS400-800-S004-B.pdf, page 50 of the PDF, cropped to the drawing and converted to greyscale, 2026-10-04.
