File:Atari 850 power supply test points (service manual figure A3-2).png
Size of this preview: 551 × 600 pixels. Other resolution: 1,273 × 1,386 pixels.
Original file (1,273 × 1,386 pixels, file size: 310 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

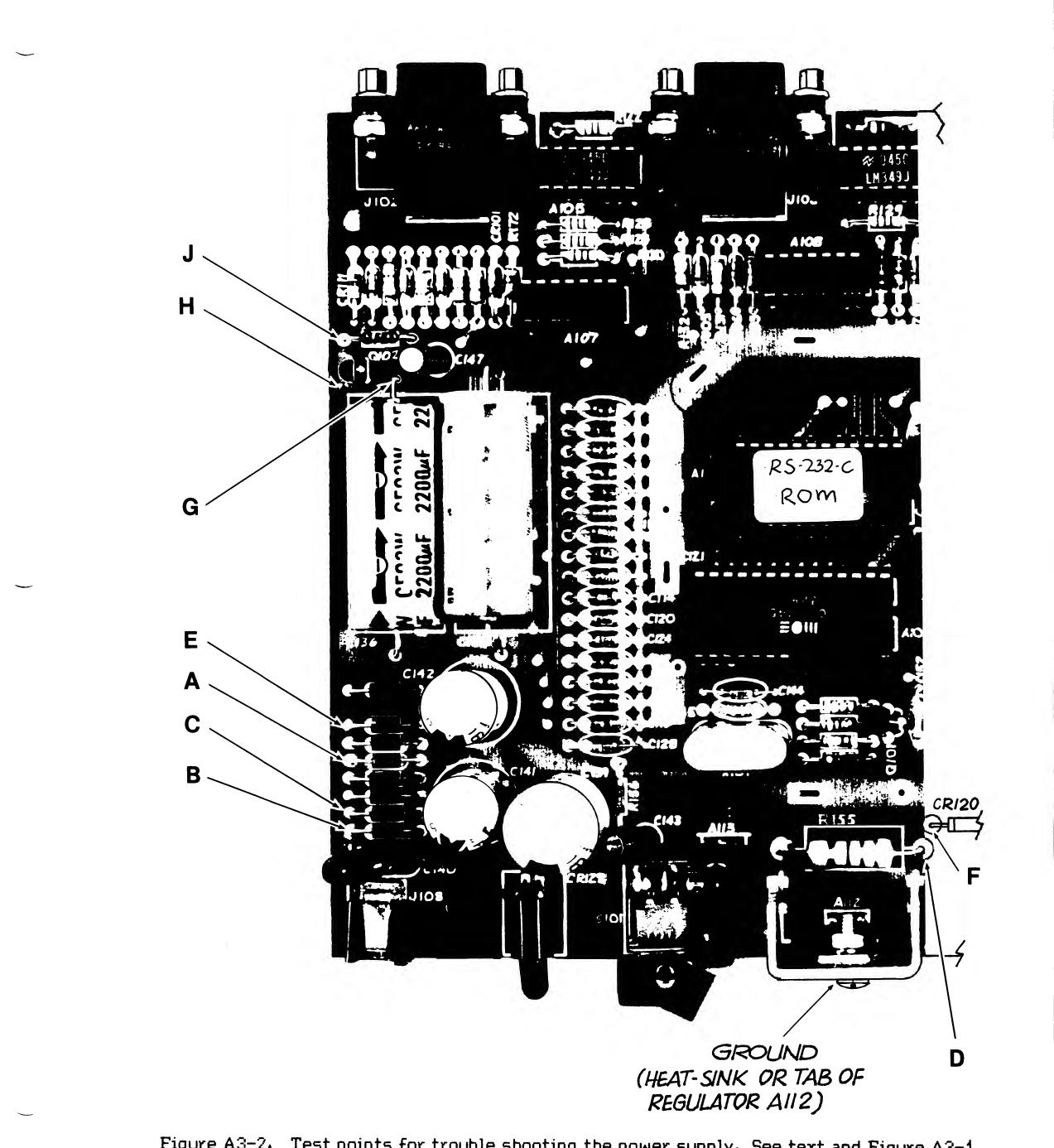

Figure A3-2 of Atari's 850 Interface Module Service Manual (CS 400/800-S004-B), page A3-3: photograph of the 850 board with the power supply test points A to J marked, the two axial 2,200 µF capacitors, C141, C142 and the regulator A112 on its heatsink.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered at 150 dpi from File:Atari 850 Interface Module Service Manual CS400-800-S004-B.pdf, page 51 of the PDF, cropped and converted to greyscale, 2026-10-04.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Atari, Inc. Reproduced from the service manual for repair reference.
