File:Atari CX30 paddle controller schematic (2600 field service manual figure 7-4).png
Appearance
Size of this preview: 800 × 373 pixels. Other resolution: 1,509 × 704 pixels.
Original file (1,509 × 704 pixels, file size: 27 KB, MIME type: image/png)
Summary

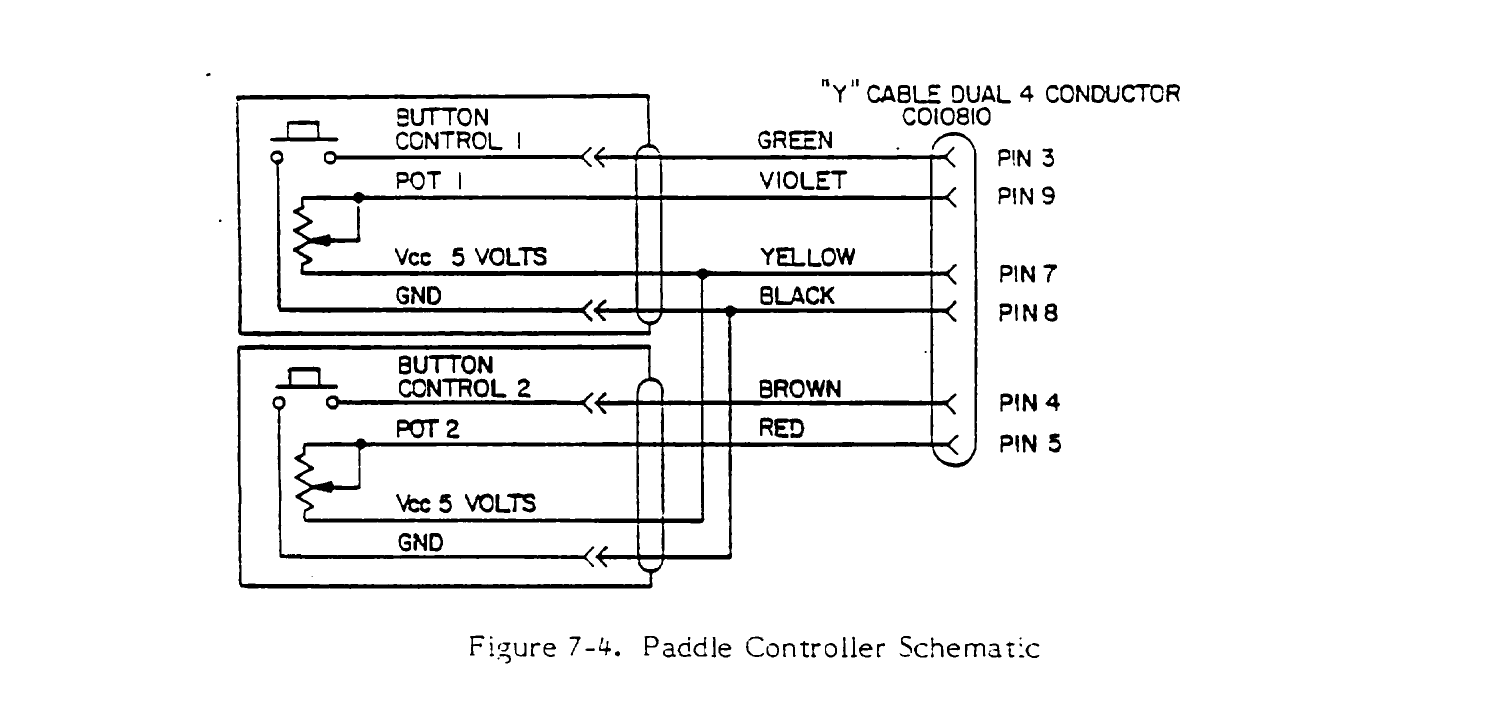

[edit | edit source]Figure 7-4 of Atari's 2600/2600A Domestic (M/N) VCS Field Service Manual, "Paddle Controller Schematic": the two paddles of a CX30 pair on the dual four-conductor Y cable C010810, with the wire colours and controller plug pins (button 1 green to pin 3, pot 1 violet to pin 9, +5 V yellow to pin 7, ground black to pin 8, button 2 brown to pin 4, pot 2 red to pin 5).
Source
[edit | edit source]Rendered at 200 dpi from File:Atari 2600 and 2600A Field Service Manual.pdf, PDF page 131 (manual page 7-5), cropped and converted to greyscale, 2026-10-06.
Author
[edit | edit source]Atari, Inc.
Licence
[edit | edit source]Copyright Atari, Inc. Reproduced from the service manual for repair reference.
