File:Atari CX85 schematic (field service manual figure 2).png
Size of this preview: 749 × 600 pixels. Other resolution: 1,804 × 1,445 pixels.
Original file (1,804 × 1,445 pixels, file size: 679 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

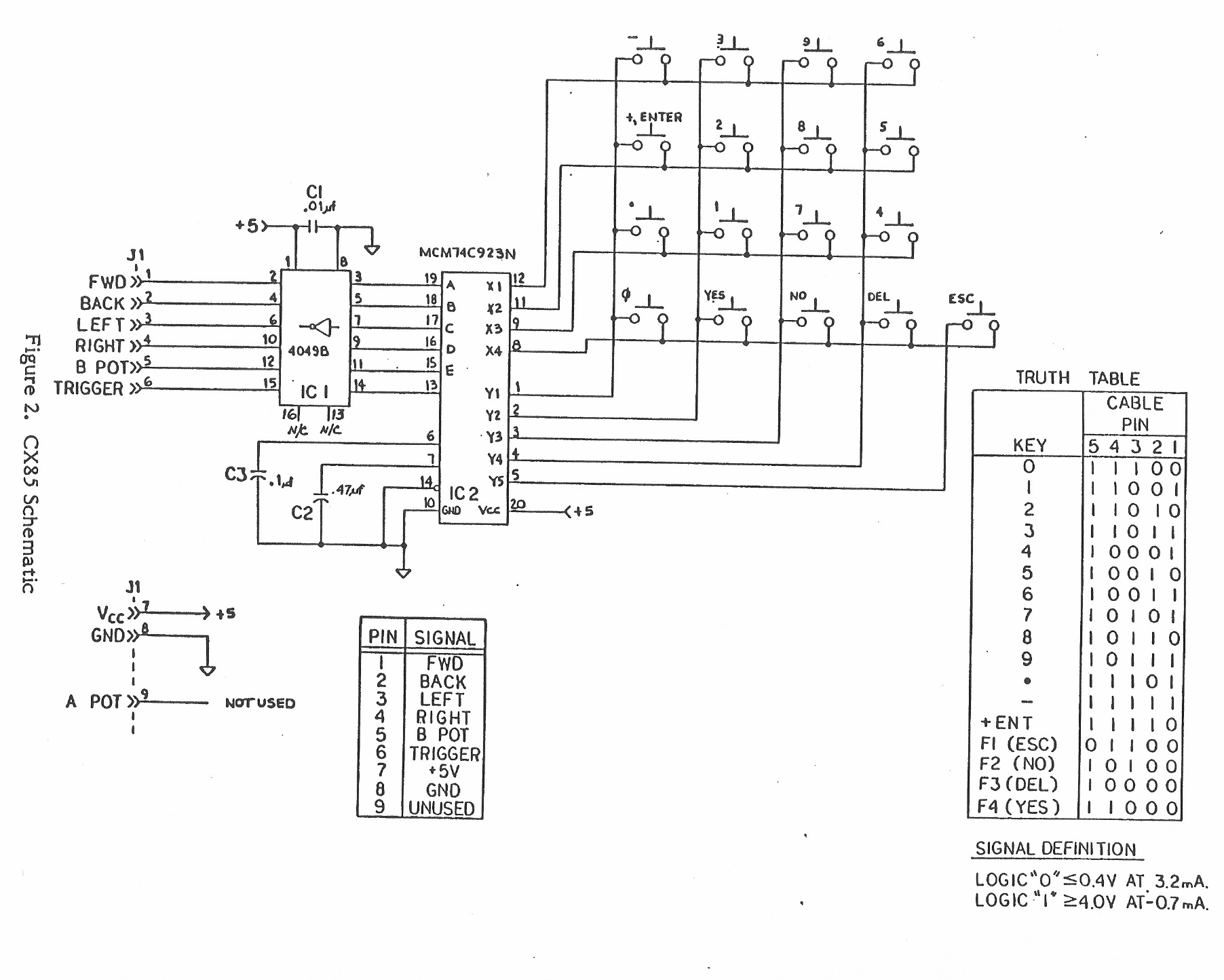

Figure 2, "CX85 Schematic", from Atari's CX85 Numeric Keypad Field Service Manual FD100176 (November 1982), p. 5: the key matrix, the MCM74C923N encoder (IC2), the 4049B inverter (IC1), C1 to C3, the cable pinout, the key truth table and the logic-level definitions. Rendered at 200 dpi from PDF page 9 of the hosted manual, rotated to landscape and cropped.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:Atari CX85 Numeric Keypad Field Service Manual FD100176.pdf, PDF p. 9.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright 1982 Atari, Inc. Reproduced from the service manual for repair reference, with the source cited.
