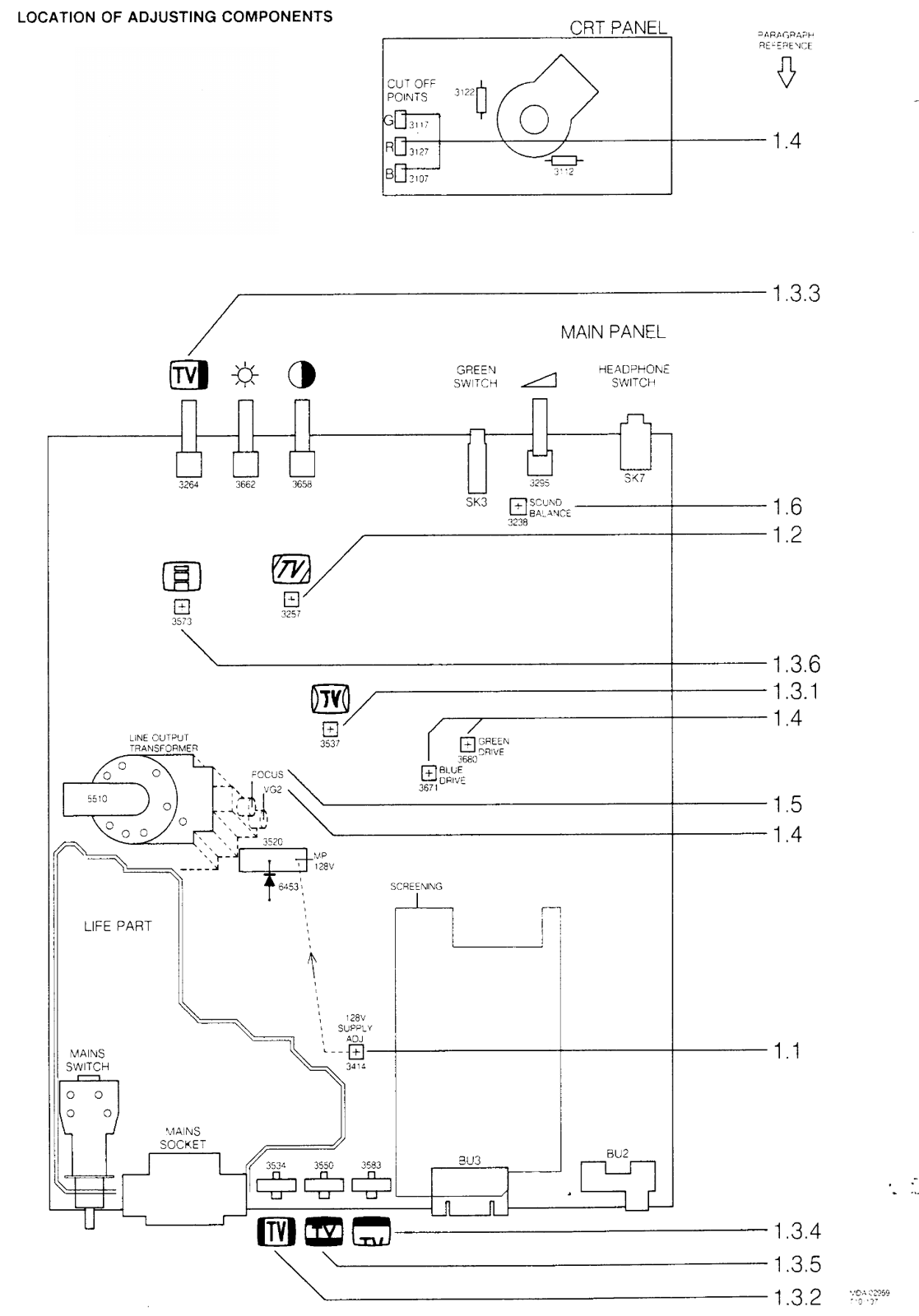

"Location of adjusting components" from the Atari SC1435 service manual: the main panel and CRT panel with the presets keyed to the adjustment paragraphs (1.1 to 1.6), including the +128 V supply preset 3414 and its measuring point at 3520 and 6453, the line output transformer's FOCUS and VG2 knobs, the cut-off presets 3107, 3117 and 3127, the green and blue drive presets 3680 and 3671, and the "life part" (mains-connected) area. Rendered at 200 dpi from PDF page 22.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from File:Atari SC1435 Service Manual.pdf, PDF page 22.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Philips Consumer Electronics for Atari
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright reserved by the publisher (Consumer Electronics, Netherlands). Hosted for preservation and repair reference, with the source cited.
