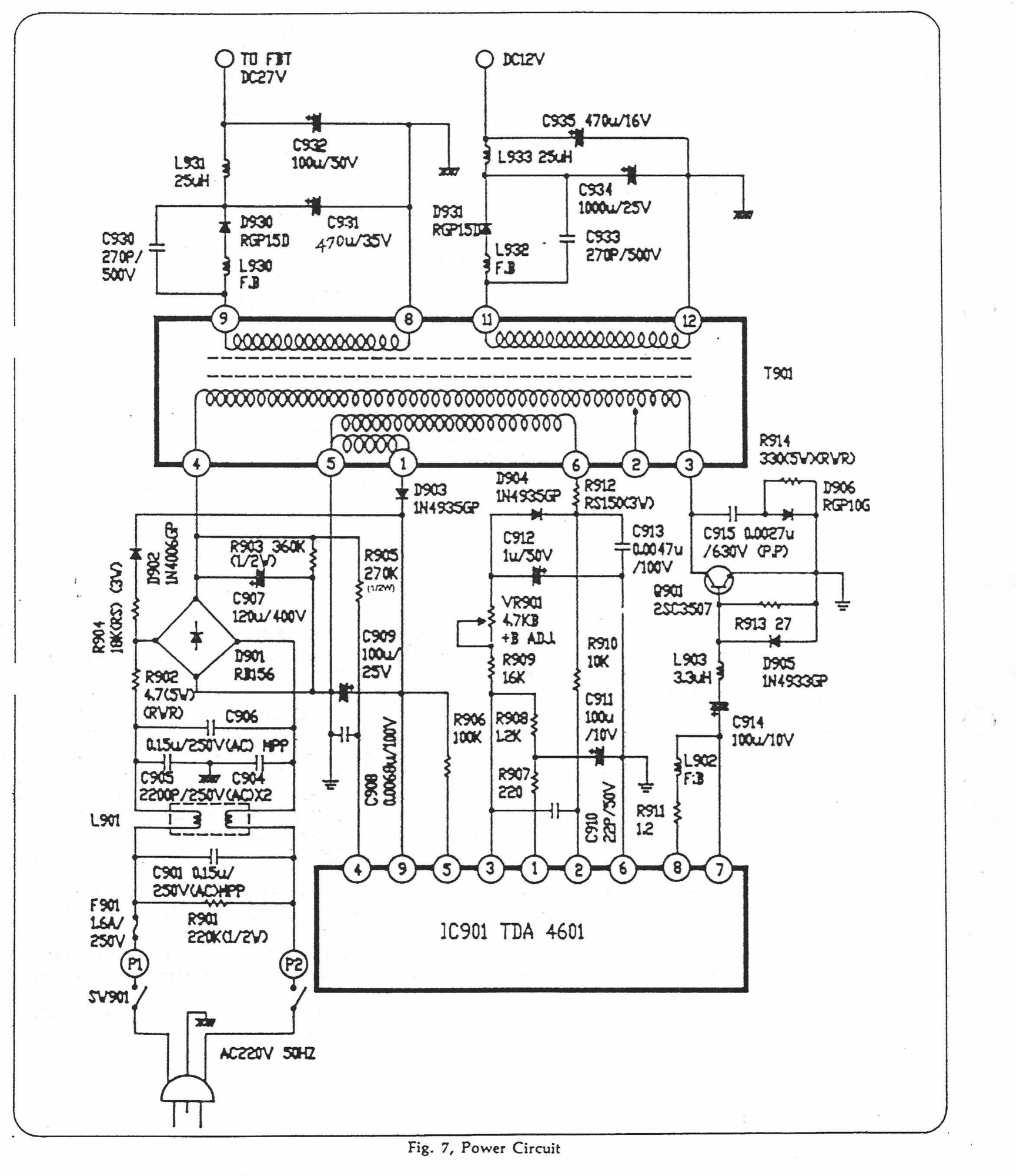

Fig. 7, Power Circuit, from Atari's service manual for the SM124 on chassis MT-21: the TDA4601 switch-mode supply with the fuse F901 (1.6 A 250 V), the bridge D901 (RB156), the mains reservoir C907 (120 µF 400 V), the switching transistor Q901 (2SC3507), the B+ preset VR901 and the 27 V and 12 V outputs. Cropped from page 8 of File:Atari SM124 Service Manual (MT-21 chassis).pdf.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Atari, SM124 Service Manual, chassis MT-21, P/N 483-351A, p. 8. Scan from Internet Archive item SM124_Service_Manual_MT-21.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari Corp.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Atari Corp. Used here for repair reference, with the source cited.
