File:Coleco Pac-Man Mini-Arcade board 75721 Rev. E.jpg
Summary
[edit | edit source]

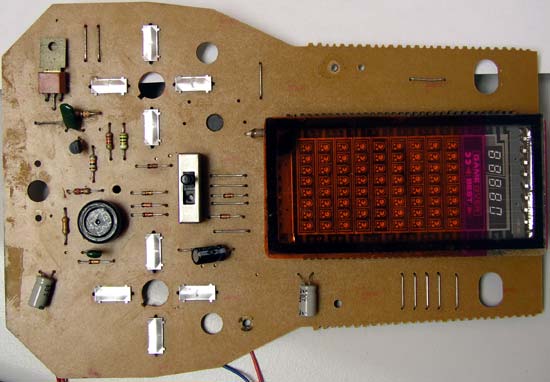

The component side of a later Coleco Pac-Man Mini-Arcade board, marked 75721 Rev. E on the solder side, with the round black transformer used on this revision, the slide switch, the joystick leaf switches and the vacuum fluorescent display.
Source
[edit | edit source]
Rik Morgan, Handheld Museum, "Coleco Game Repair (Pac Man, Ms. Pac Man, Donkey Kong, Frogger & Galaxian)", board-variation page: https://www.handheldmuseum.com/Coleco/ColecoRepair/PacMan_RevE1.jpg (retrieved 2026-10-06). Uploaded unchanged.
Author
[edit | edit source]
Rik Morgan (Handheld Museum)
Licence
[edit | edit source]
Copyright Rik Morgan. Not freely licensed. Used on this wiki to illustrate the repair it comes from, with credit and a link to the original page.
