File:DEC H7821-00 power supply main board capacitor locations (Malte Dehling).png
Size of this preview: 800 × 270 pixels. Other resolution: 2,146 × 723 pixels.
Original file (2,146 × 723 pixels, file size: 62 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

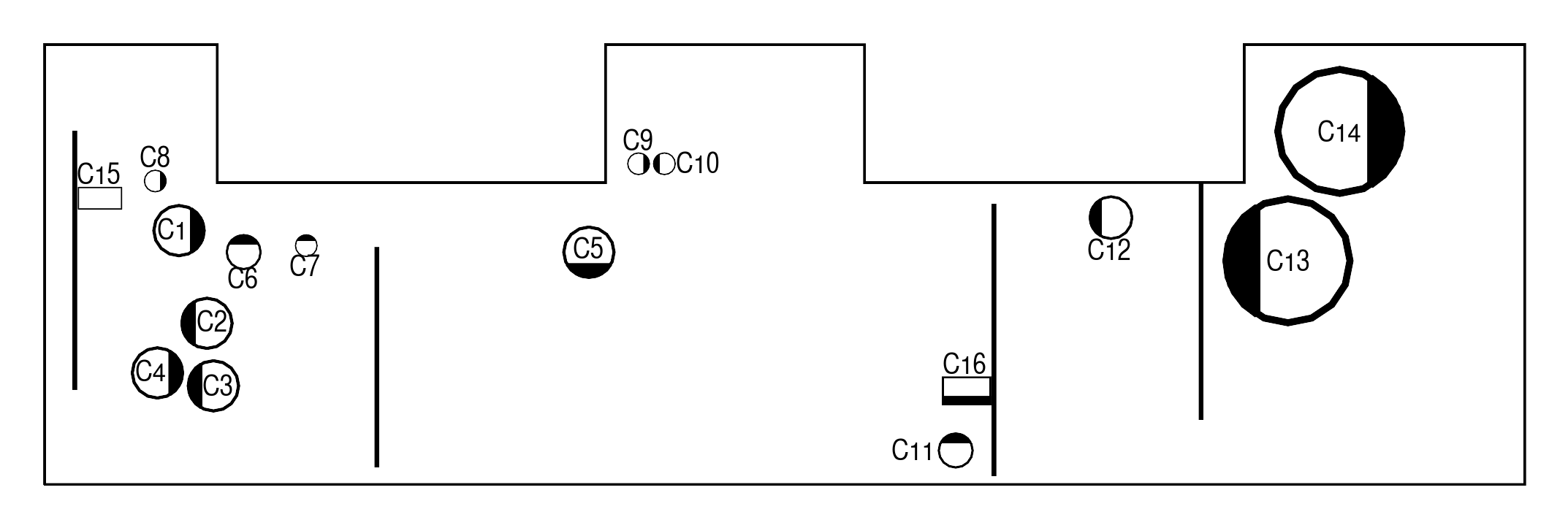

Capacitor location drawing, component side up, of the main circuit board of the DEC H7821-00 power supply. The same board is the first of the two boards in the H7822-00. Designators C1 to C16 are Malte Dehling's own; C15 and C16 sit on small daughterboards. Rendered from his SVG to PNG.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
https://github.com/mdehling/vs3100-psu-repair (img/h7821-00.svg, retrieved 2026-10-01).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Malte Dehling.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
No licence is stated in the repository. Credited to the author and used for repair reference.
