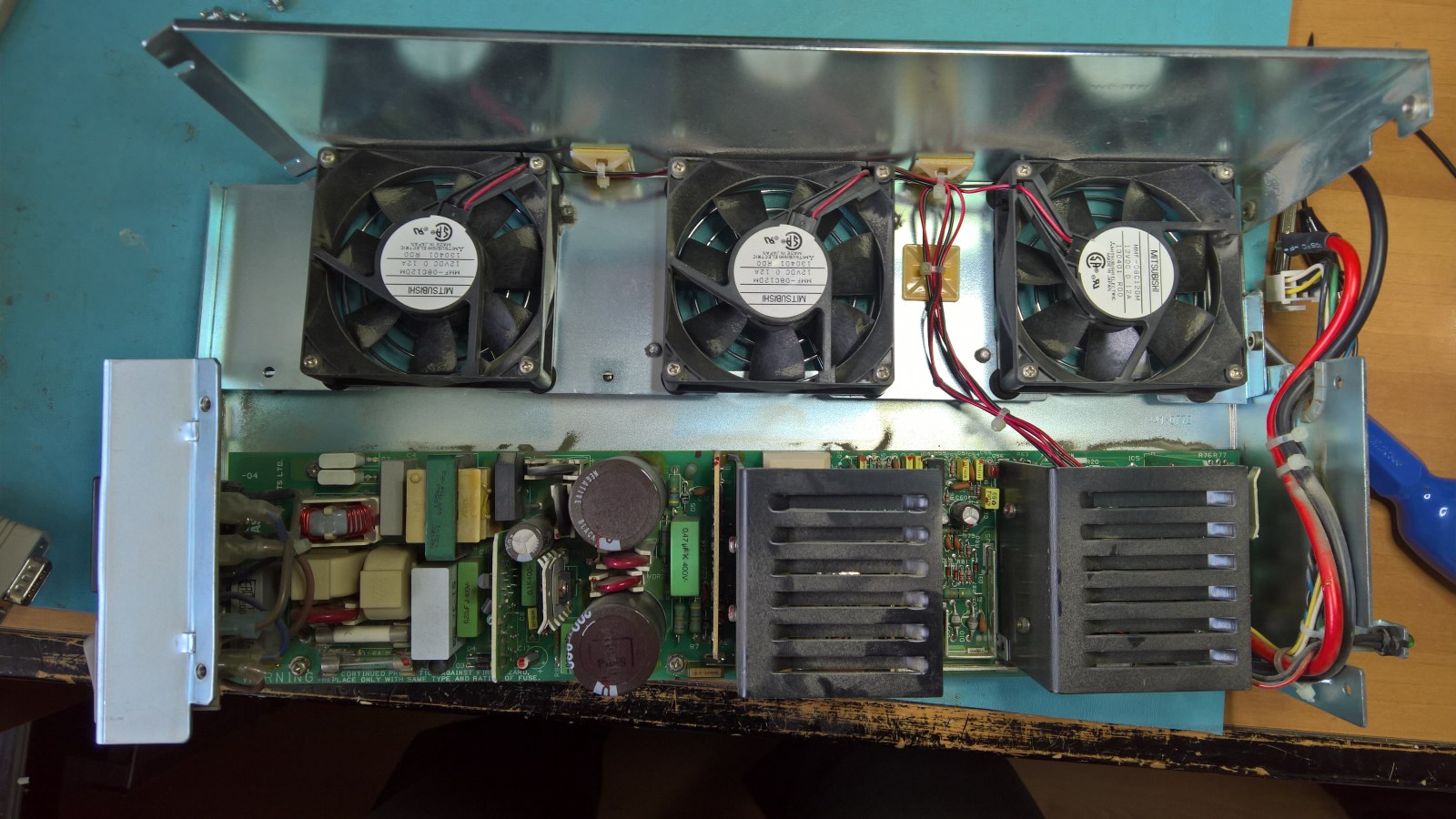

An H7878 power supply from a DECstation 5000/240 opened for inspection: the three fans in the removable panel at the top, the board with its input capacitors and finned heat sinks below.
