File:Mac IIcx Recap Guide.jpg
Size of this preview: 681 × 599 pixels. Other resolution: 2,048 × 1,802 pixels.
Original file (2,048 × 1,802 pixels, file size: 1.45 MB, MIME type: image/jpeg)

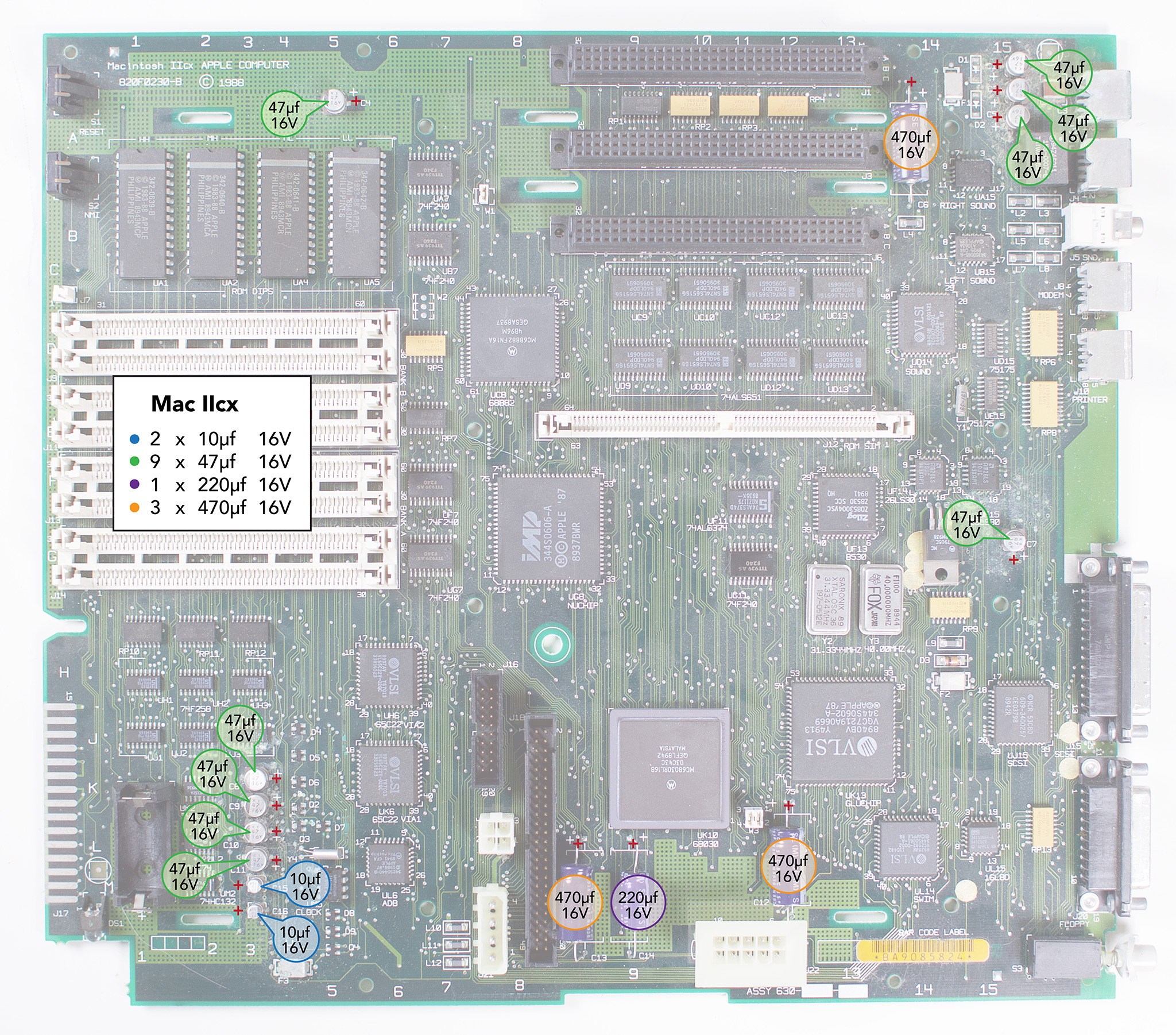

Macintosh IIcx logic board 820F0230-B with every electrolytic capacitor marked with its value, working voltage and positive terminal. Source: Recap-a-Mac, reproduced here so the figures cited on this wiki can be checked.
Licensing
[edit | edit source]
Photograph and annotations by Recap-a-Mac (branchus creations). Reproduced with attribution for repair reference; copyright remains with the author.
