File:Mac LC 575 Recap Guide.jpg
Size of this preview: 798 × 600 pixels. Other resolution: 2,048 × 1,539 pixels.
Original file (2,048 × 1,539 pixels, file size: 989 KB, MIME type: image/jpeg)

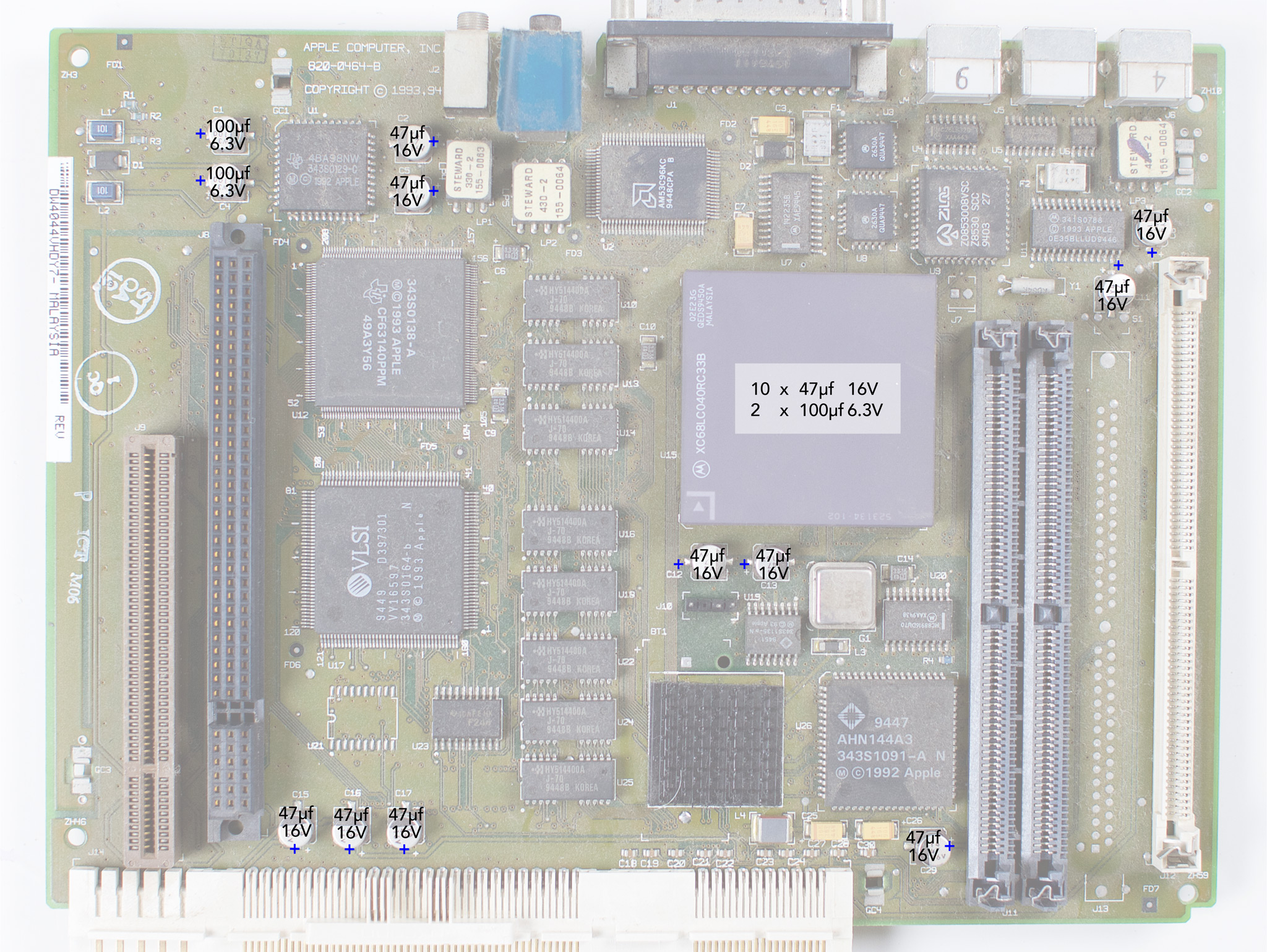

Macintosh LC 575 logic board (Apple part 820-0464-B) with every surface-mount electrolytic capacitor marked with its value, working voltage and positive terminal. The board carries twelve SMD electrolytics: ten 47 µF 16 V and two 100 µF 6.3 V.
Source: Recap-a-Mac — Macintosh LC575. Copyright remains with Recap-a-Mac (Branchus Creations); reproduced here as a repair reference. No explicit licence is stated on the source site.
