File:Macintosh Portable 820-0219 logic board recap guide (Recap-a-Mac).jpg
Summary
[edit | edit source].jpg&veaction=edit§ion=1){kind=link}
.jpg&action=edit§ion=1){kind=link}

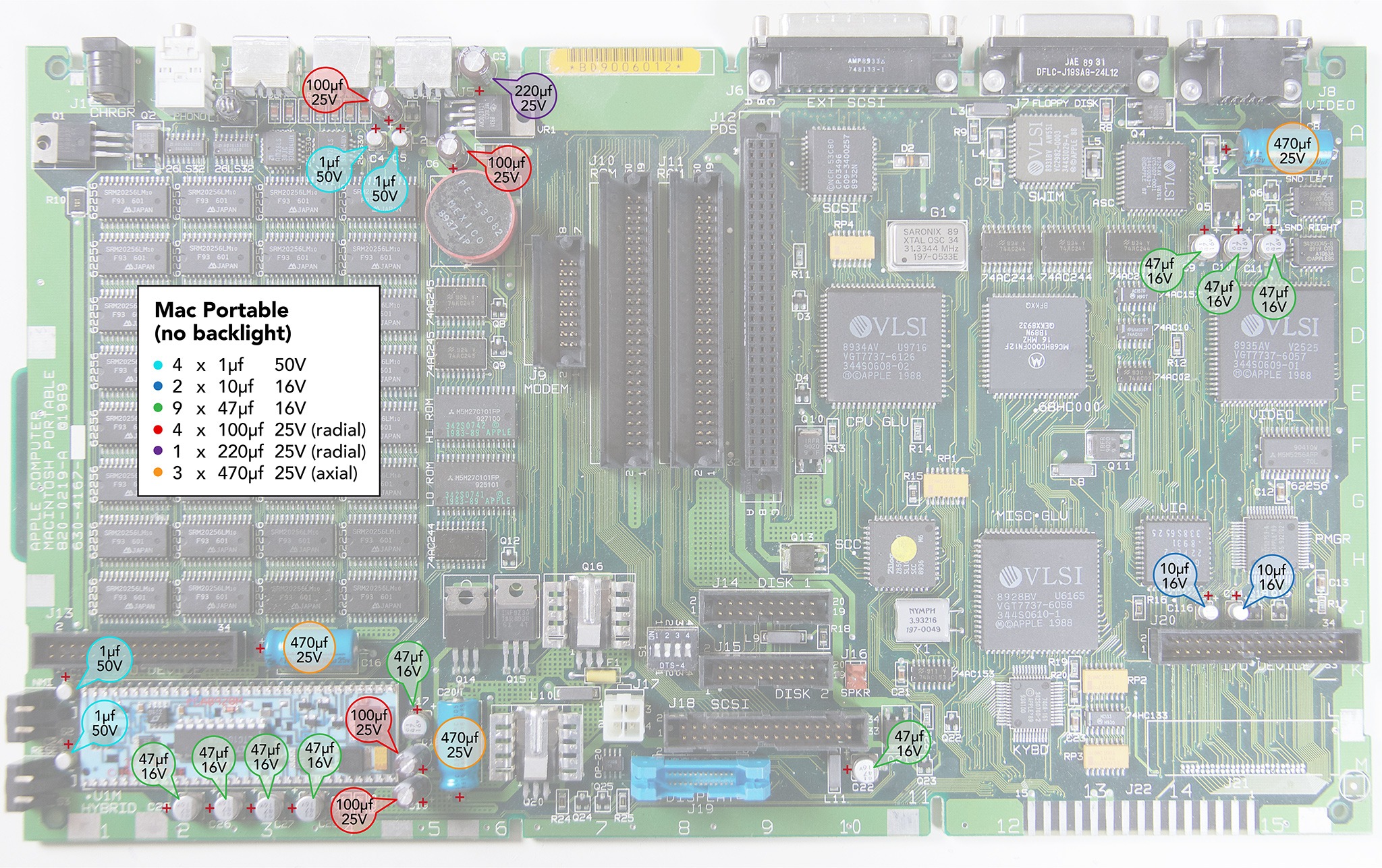

Recap-a-Mac's annotated photograph of the non-backlit Macintosh Portable logic board (820-0219-A), marking the electrolytic capacitors to replace by value and voltage: four 1 µF 50 V, two 10 µF 16 V, nine 47 µF 16 V, four 100 µF 25 V radial, one 220 µF 25 V radial and three 470 µF 25 V axial.
Source
[edit | edit source].jpg&veaction=edit§ion=2){kind=link}
.jpg&action=edit§ion=2){kind=link}
Recap-a-Mac, "Macintosh Portable (no backlight)", https://recapamac.com.au/macintosh-portable-no-backlight/ (image https://recapamac.com.au/wp-content/uploads/2023/03/portable_no_backlight_recap.jpg, retrieved 2026-10-02).
Author
[edit | edit source].jpg&veaction=edit§ion=3){kind=link}
.jpg&action=edit§ion=3){kind=link}
Recap-a-Mac (recapamac.com.au).
Licence
[edit | edit source].jpg&veaction=edit§ion=4){kind=link}
.jpg&action=edit§ion=4){kind=link}
Copyright Recap-a-Mac. No licence stated at the source. Used with credit for repair reference.
