File:Panasonic FZ-1 power supply schematic.png
Size of this preview: 800 × 572 pixels. Other resolution: 2,000 × 1,431 pixels.
Original file (2,000 × 1,431 pixels, file size: 303 KB, MIME type: image/png)
Summary
[edit | edit source]

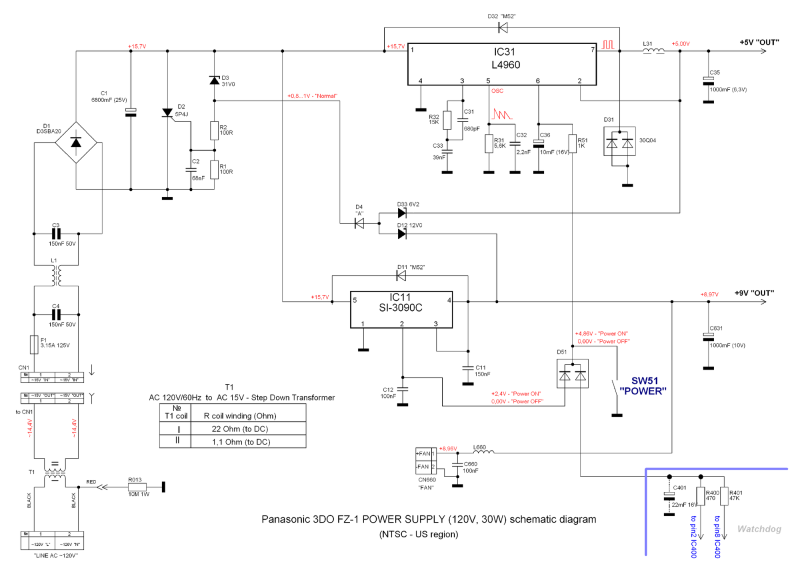

Community drawing of the FZ-1 power supply section (NTSC US, 120 V, 30 W) with measured voltages, rendered from the hosted PDF.
Source
[edit | edit source]
Rendered from File:Panasonic FZ-1 Power Supply Schematic NTSC US.pdf (3DO Development Repo).
Author
[edit | edit source]
Not recorded on the drawing.
Licence
[edit | edit source]
Community drawing; no licence stated at the source. Hosted for repair reference, with the source cited.
