File:PowerBook 150 exploded view (Service Source).png
Size of this preview: 431 × 599 pixels. Other resolution: 1,033 × 1,435 pixels.
Original file (1,033 × 1,435 pixels, file size: 152 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

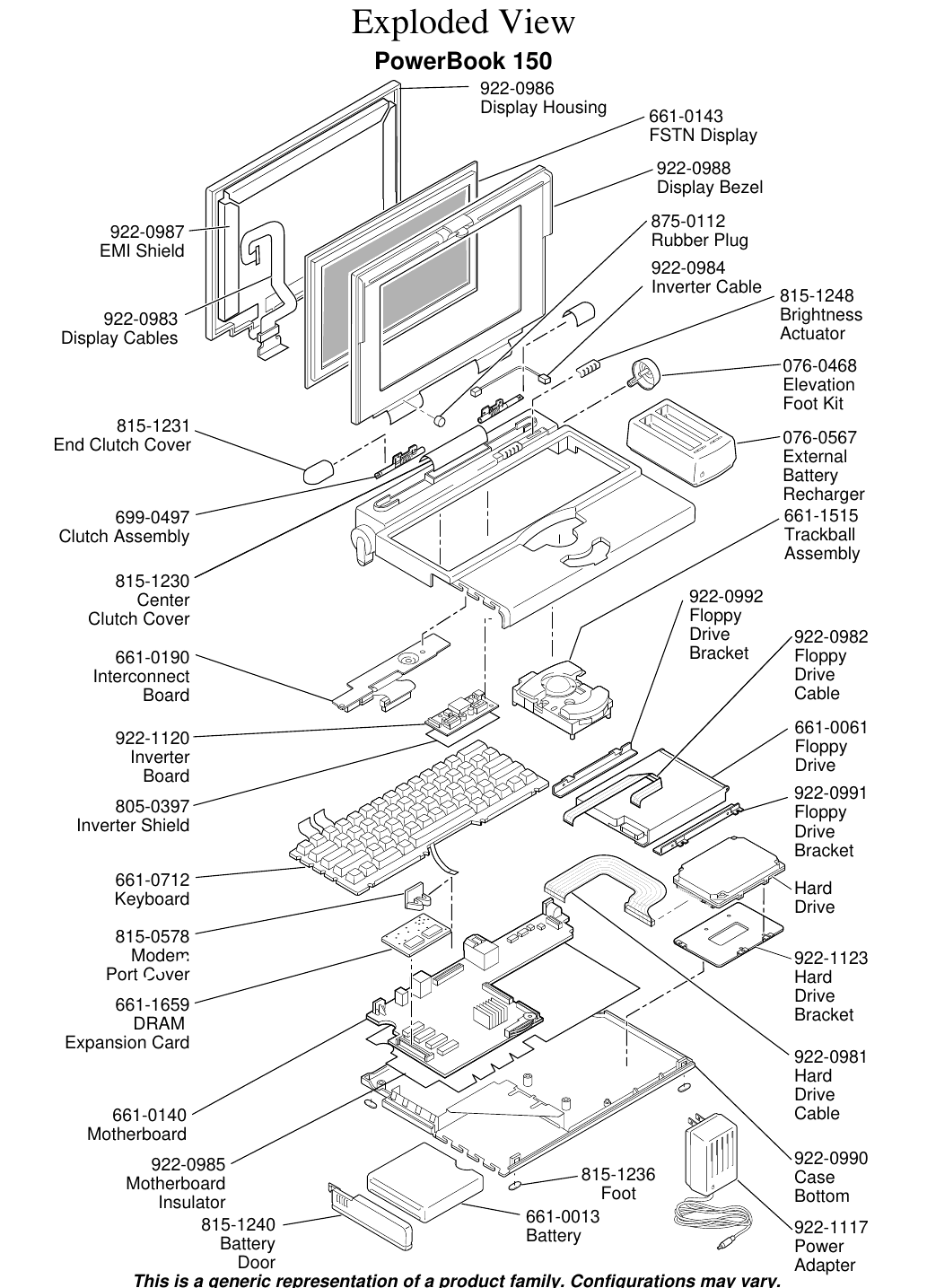

Apple's exploded view of the PowerBook 150 with service part numbers (motherboard 661-0140, interconnect board 661-0190, inverter board 922-1120, FSTN display 661-0143, battery 661-0013, DRAM expansion card 661-1659, power adapter 922-1117).
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from Apple's Service Source, File:PowerBook 150 Service Source.pdf, PDF page 120. Original PDF: http://applerepairmanuals.com/the_manuals_are_in_here/PowerBook_150.pdf (retrieved 2026-10-02)
