File:PowerBook 165c and 180c exploded view (Service Source).png
Size of this preview: 472 × 600 pixels. Other resolution: 1,200 × 1,525 pixels.
Original file (1,200 × 1,525 pixels, file size: 420 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

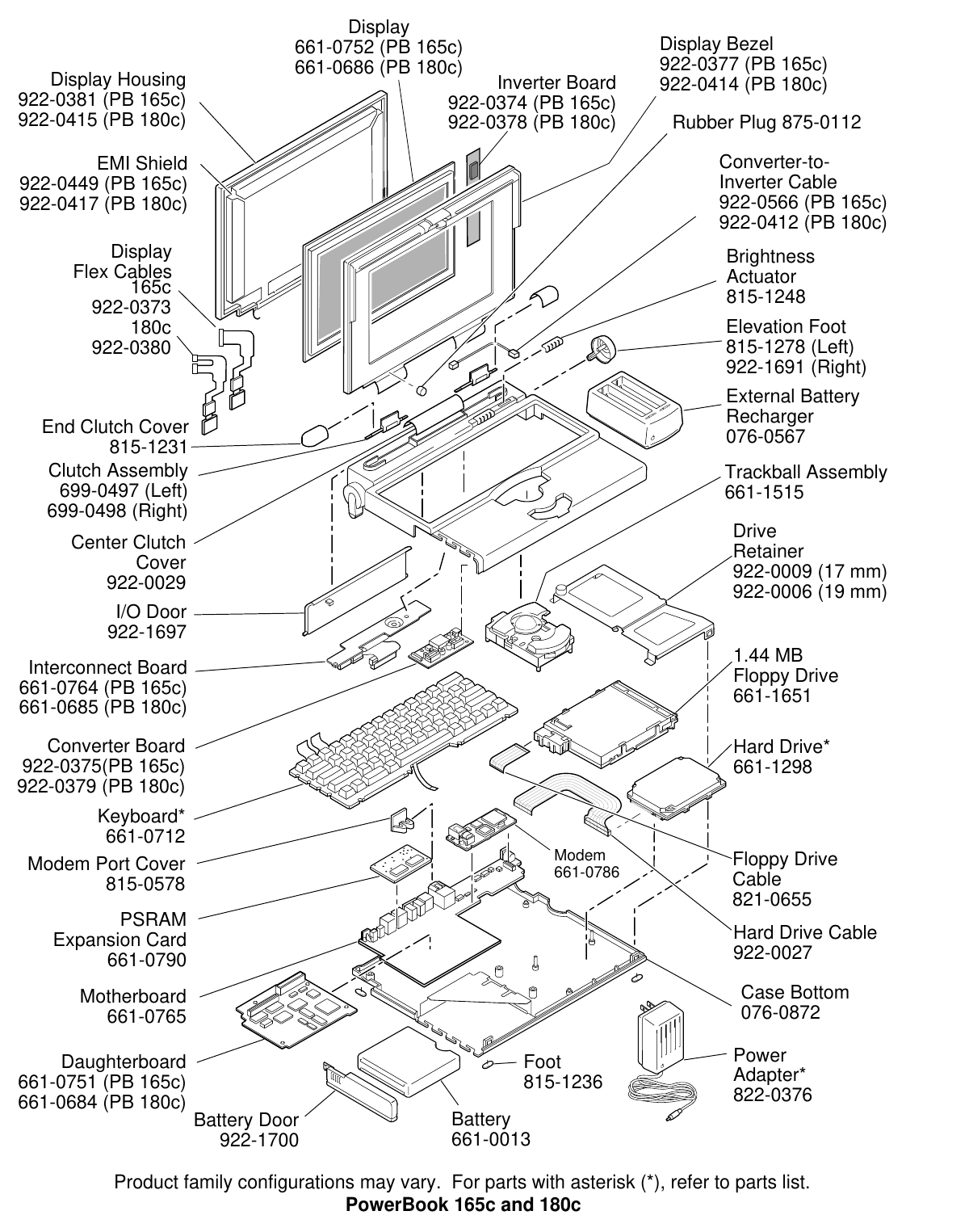

Apple's exploded view of the PowerBook 165c and 180c with service part numbers, including the display (661-0752 and 661-0686), inverter board (922-0374 and 922-0378), converter board (922-0375 and 922-0379), interconnect board, daughterboard, motherboard 661-0765 and power adapter 822-0376. Rendered from File:PowerBook 165c and 180c Service Source.pdf (Apple Computer, PowerBook 165c/180c Service Source), PDF p. 150.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered at 200 dpi from the hosted PDF.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed. Reproduced from the service manual to identify parts and procedures for repair.
