File:PowerBook 5300 power supply board (Service Source).png
Size of this preview: 699 × 600 pixels. Other resolution: 833 × 715 pixels.
Original file (833 × 715 pixels, file size: 302 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

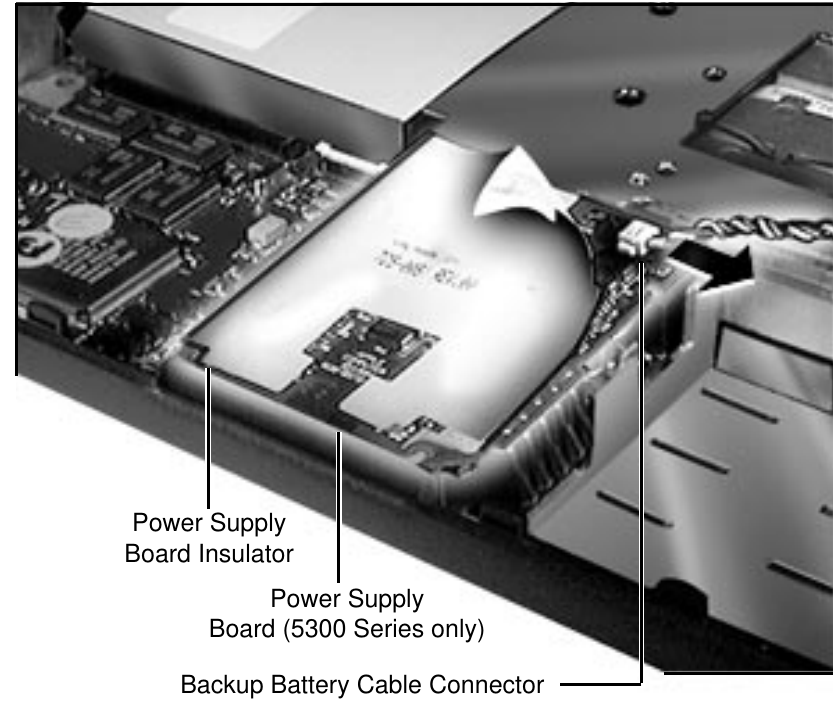

Apple's photograph of the PowerBook 5300 power supply board in place, with the board insulator and the backup battery cable connector labelled. Rendered from File:PowerBook 190 and 5300 Series Service Source.pdf (Apple Computer, PowerBook 190/5300 Series Service Source), PDF p. 118.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered at 200 dpi from the hosted PDF.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed. Reproduced from the service manual to identify parts and procedures for repair.
