File:PowerBook Duo 200 Series exploded view (Service Source).png
Size of this preview: 463 × 599 pixels. Other resolution: 1,292 × 1,672 pixels.
Original file (1,292 × 1,672 pixels, file size: 243 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

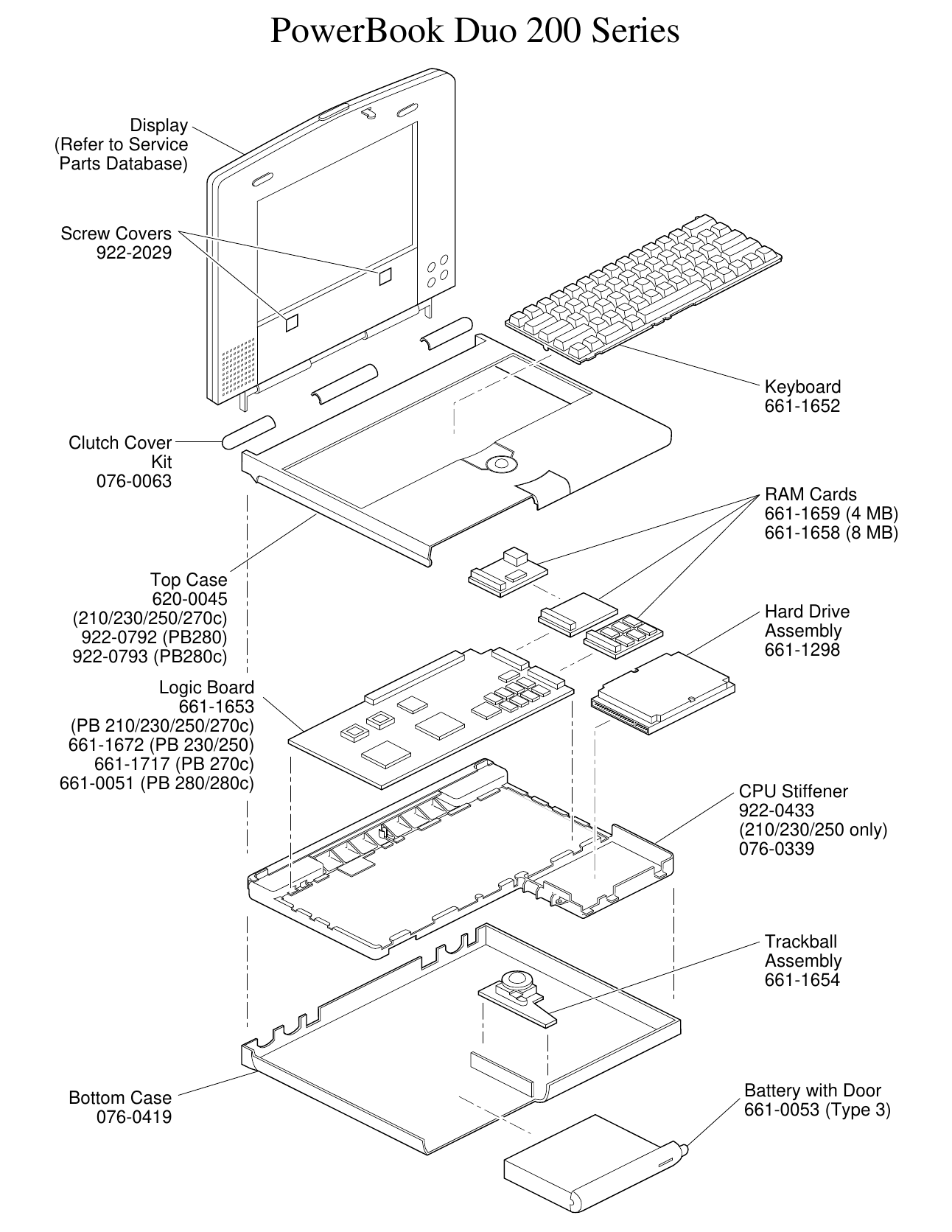

Apple's exploded view of the PowerBook Duo 200 Series with service part numbers for the keyboard, clutch cover kit, top case, RAM cards, logic boards, hard drive, CPU stiffener, trackball, bottom case and Type 3 battery (Exploded View p. 1, PDF p. 266).
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered at 200 dpi from Apple's PowerBook 200 Series Service Source, hosted here as File:PowerBook Duo 200 Series Service Source.pdf (see PowerBook Duo 200 Series Service Source), PDF p. 266.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
