File:PowerBook Duo 2300c exploded view (Service Source).png
Size of this preview: 474 × 599 pixels. Other resolution: 1,462 × 1,848 pixels.
Original file (1,462 × 1,848 pixels, file size: 420 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

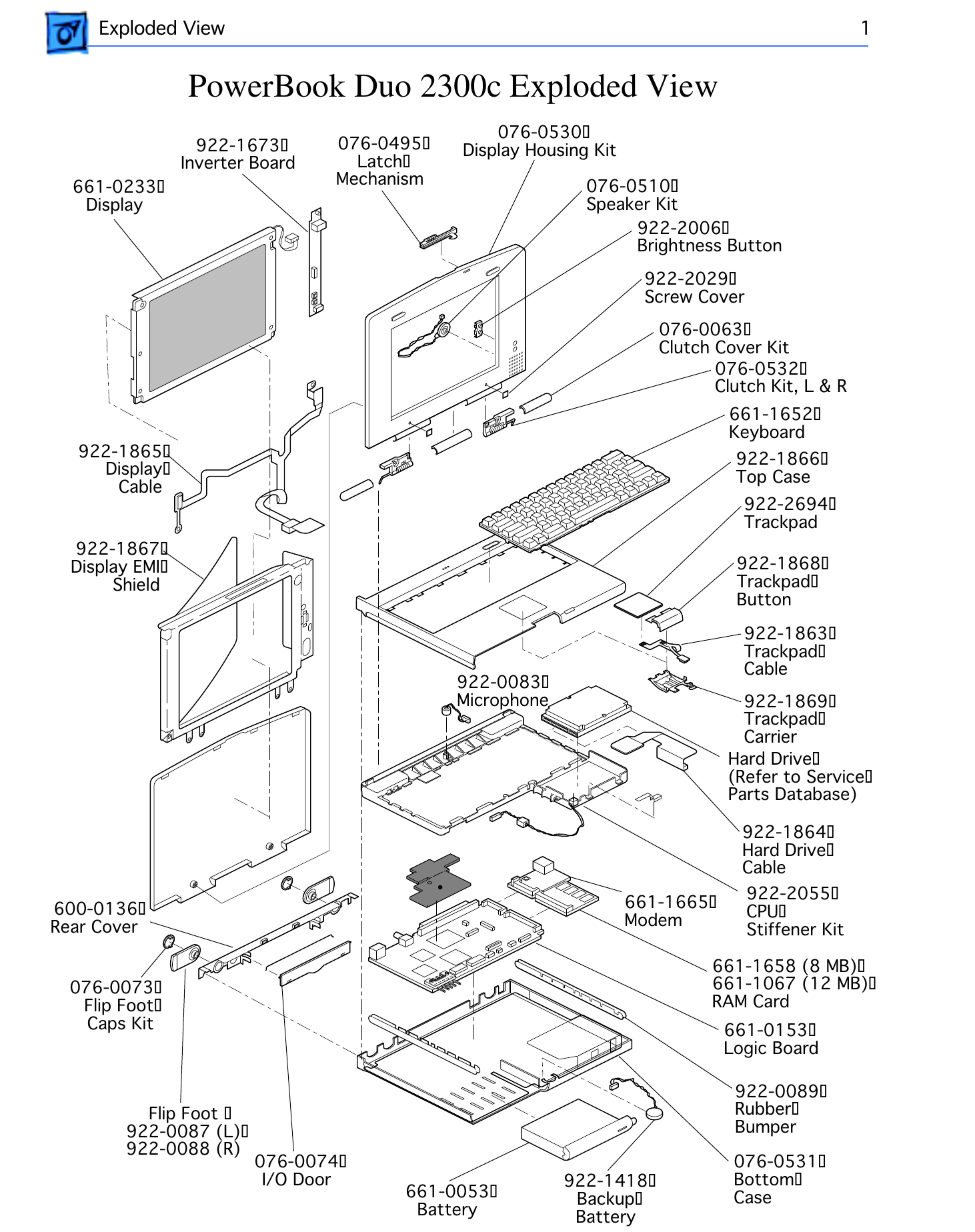

Apple's exploded view of the PowerBook Duo 2300c with service part numbers (Exploded View p. 1, PDF p. 210).
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered at 200 dpi from Apple's PowerBook 2300 Series Service Source, hosted here as File:PowerBook Duo 2300c Service Source.pdf (see PowerBook Duo 2300c Service Source), PDF p. 210.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
