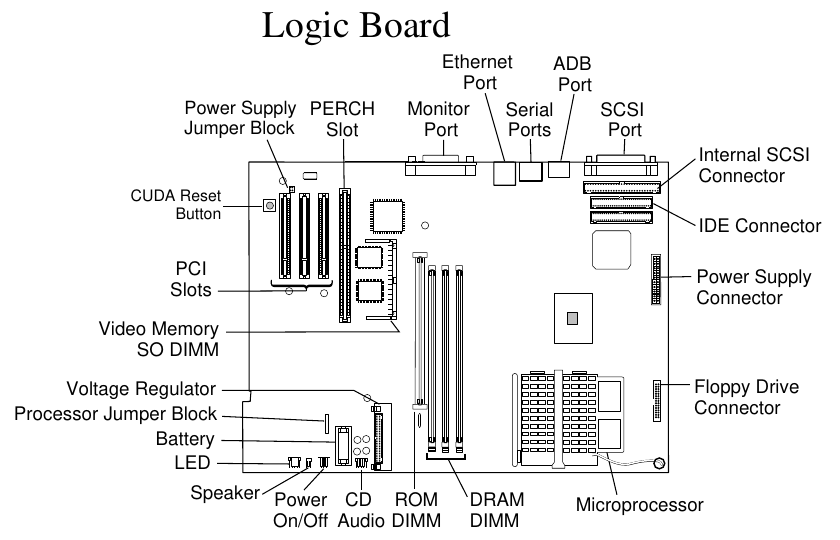

Apple's labelled diagram of the beige Power Macintosh G3 logic board (shared by the desktop, minitower and All-In-One): Cuda reset button, power supply jumper block (J28), PERCH slot, PCI slots, video memory SO-DIMM, voltage regulator, processor jumper block (J16), battery, ROM and DRAM DIMMs, processor, IDE, SCSI, floppy and power supply connectors.
