File:Sega Mega CD main board 837-8015-01 parts location.png
Summary
[edit | edit source]

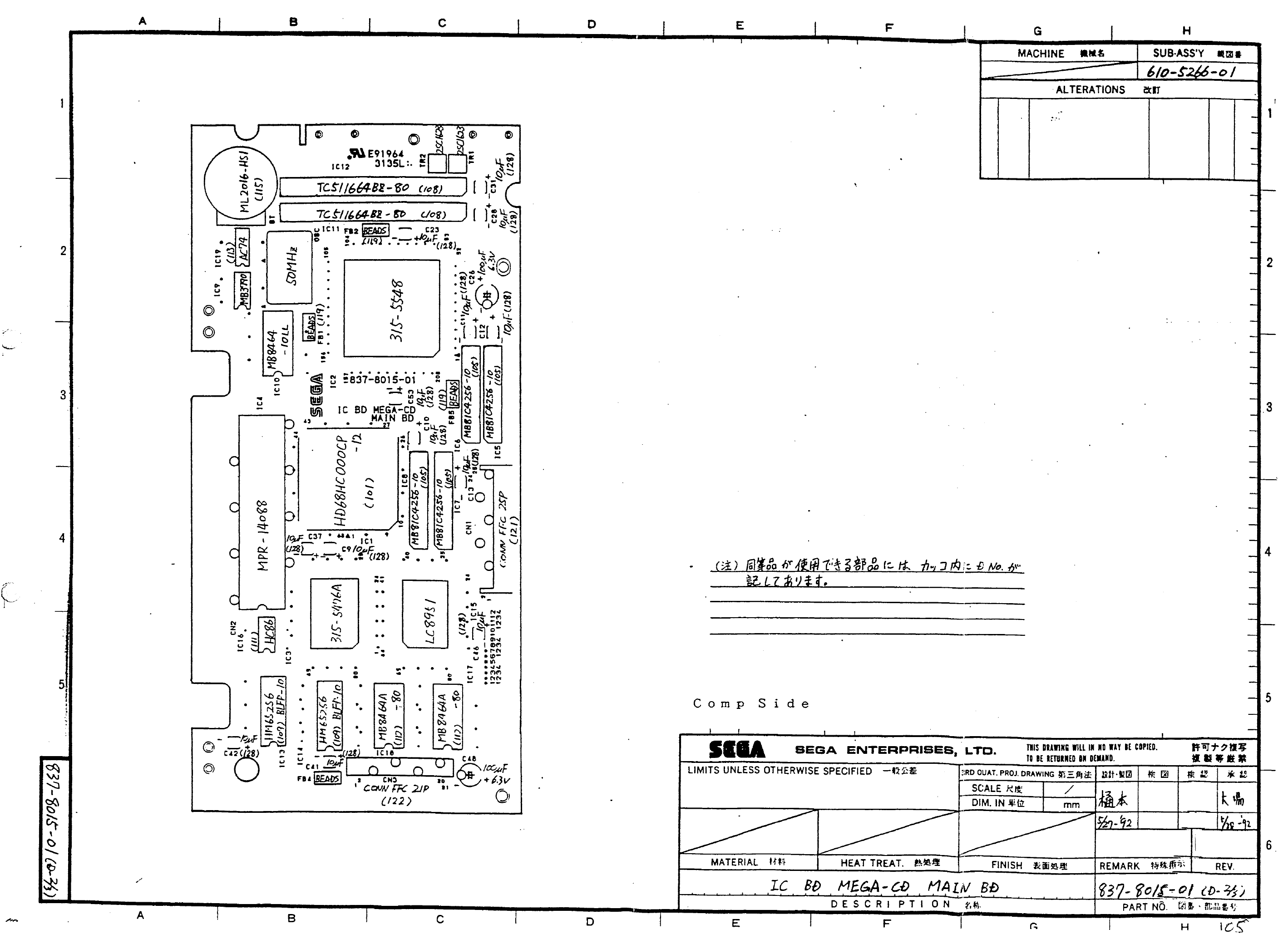

Sega's mount diagram (component side) for the 837-8015-01 IC BD MEGA-CD MAIN BD of the front-loading Sega CD (Model 1), with each part's value written beside it. Landmarks include the ML2016 backup cell, the two TC511664BZ-80 word RAMs, the 315-5548 gate array and 50 MHz oscillator, the HD68HC000CP-12 and MPR-14088 boot ROM, the LC8951 and 315-5476A, and CN1 and CN3. The same manual's parts list covers the later export boards 837-8952 and 837-8953, whose designators differ.
Source
[edit | edit source]
Rendered from page 105 of the MEGA-CD Maintenance Manual, Export, August 1992, Rev. A of File:Sega CD Service Manual.pdf, converted to greyscale PNG. Nothing else is altered.
Author
[edit | edit source]
Sega Enterprises, Ltd.
Licence
[edit | edit source]
Copyright Sega Enterprises, Ltd. Not freely licensed. A single page from a Sega service manual, hosted on the same basis as the complete manual.
