File:Sega Saturn VA0 PAL main board parts location.png

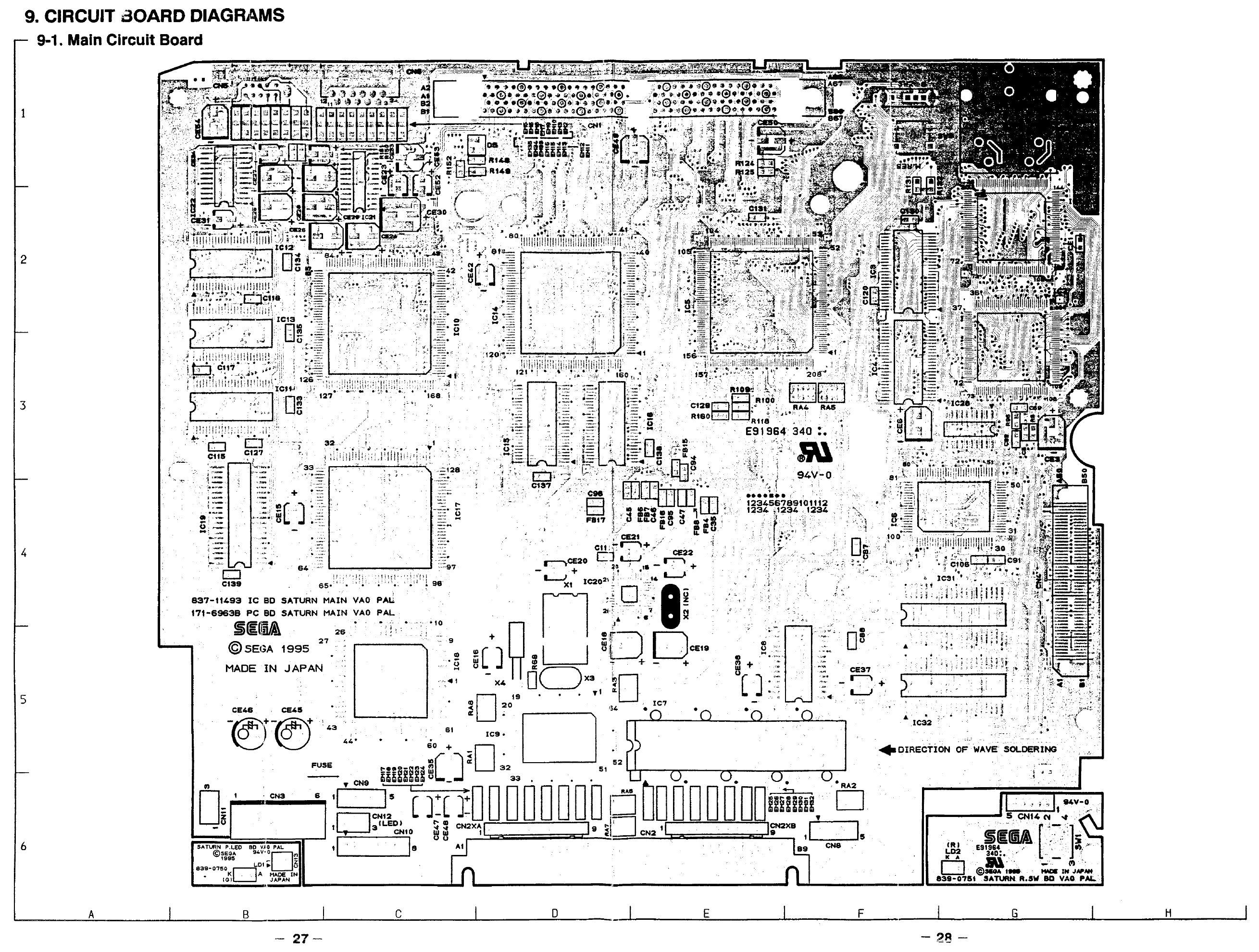

Sega's own 9-1 Main Circuit Board diagram for the 837-11493 IC BD SATURN MAIN VA0 PAL / 171-6963B PC BD SATURN MAIN VA0 PAL board of the Sega Saturn (Model 1).

This drawing is also the clearest published proof of Sega's designator convention on the Saturn: ceramic chip capacitors carry plain C numbers (C115, C117, C127, C137, C139 …) while every aluminium electrolytic carries a CE number (CE15, CE16, CE19–CE22, CE24–CE30, CE35–CE37, CE45, CE46, CE47, CE48 …). A capacitor list that gives consecutive plain-C designators as electrolytics does not describe this board.

Landmarks: CE45 and CE46 (the two 330 µF cans) at the lower left beside the marked FUSE; the controller ports CN2XA and CN2XB along the bottom with CN8 beside them; the cartridge connector at the right-hand edge; IC10 (VDP1) and IC14 (VDP2) in the upper half; IC17 (SCSP) at the left; the crystals X1–X4 in the centre; the two small satellite boards 839-0750 SATURN P.LED BD VA0 PAL and 839-0751 SATURN R.SW BD VA0 PAL.

Page 27 of Service Manual — Sega Saturn (PAL), No. 013-1, June 1995, Sega Enterprises, Ltd. — the copy already hosted on this wiki at File:Sega service manual - sega saturn pal - no. 013-1 june 1995.pdf. Rendered from that PDF to greyscale PNG. No content has been altered, added or removed.

© Sega Enterprises, Ltd. This is a single page extracted from a Sega service manual, reproduced here for identification and repair of machines that are long out of support and out of production. It is not released under a free licence, and no claim of ownership is made. It is hosted on the same basis as the complete manual, which this wiki already carries.
