File:VT100 Ball monitor board adjustments (EK-VT100-TM-003 Figure 5-6).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

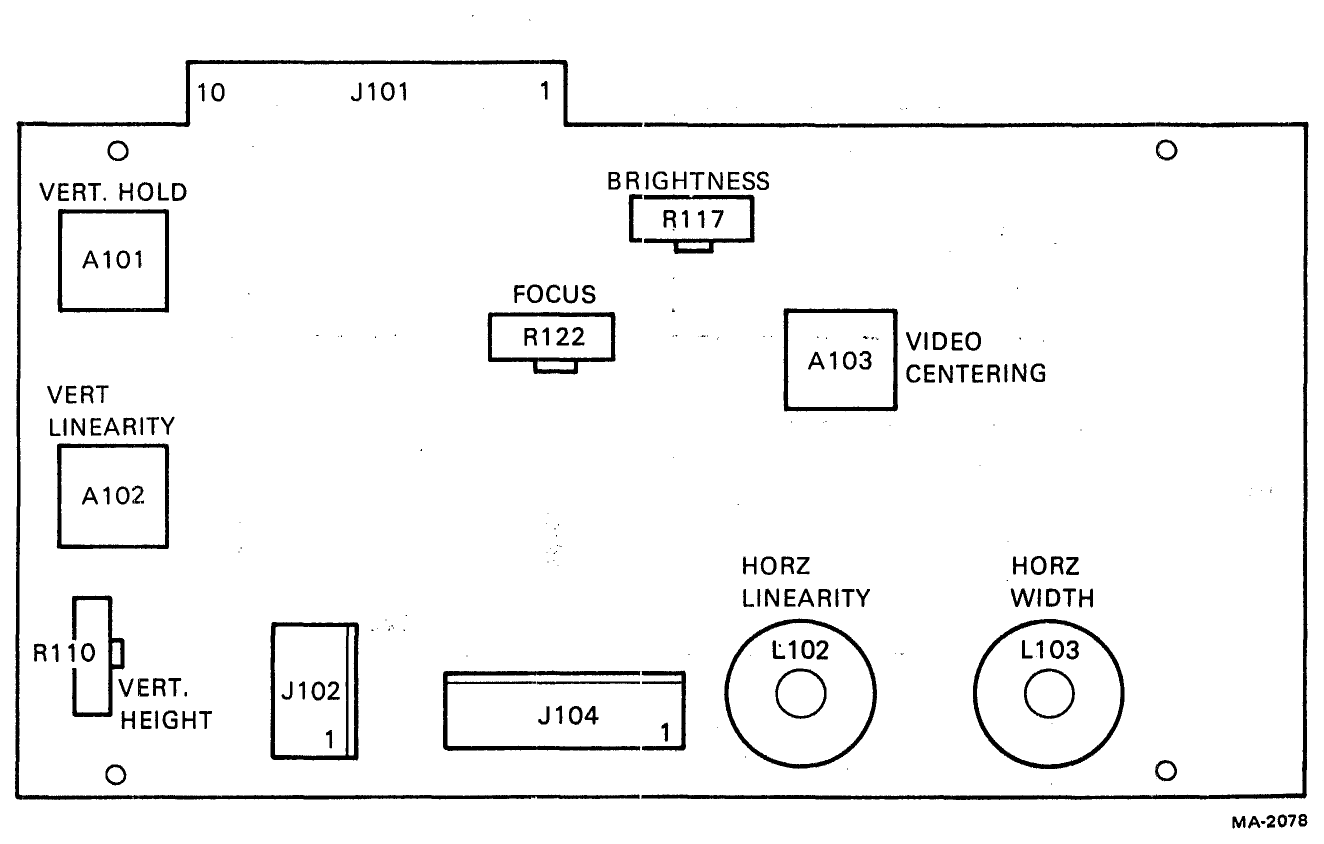

DEC's layout of the adjustment controls on the Ball Brothers video monitor board used in early VT100s: vertical hold A101, vertical linearity A102, video centring A103, vertical height R110, brightness R117, focus R122, horizontal linearity coil L102 and horizontal width coil L103. Figure 5-6 of the VT100 Series Technical Manual, EK-VT100-TM-003, p. 5-28, rendered from the scan.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:VT100 Series Technical Manual (EK-VT100-TM-003).pdf, p. 5-28 (PDF page 195).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Digital Equipment Corporation.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Digital Equipment Corporation. Manufacturer documentation, used to identify the product and for repair reference.
