File:VT220 video adjustment locations, models D to F (EK-VT220-PS-003 Figure 4-1b).png
Size of this preview: 408 × 599 pixels. Other resolution: 879 × 1,290 pixels.
Original file (879 × 1,290 pixels, file size: 81 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

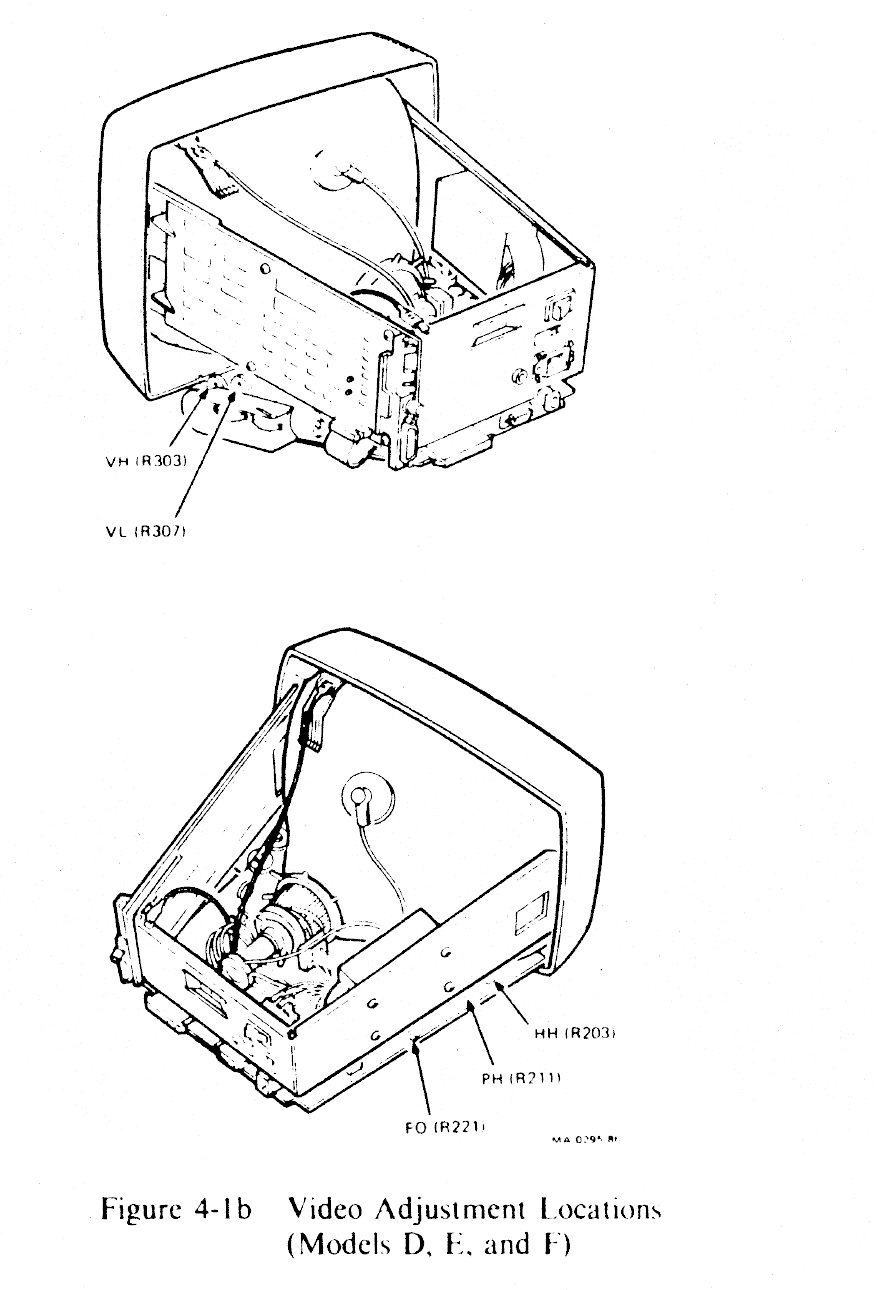

DEC's drawings of a VT220 model D, E or F with the cover off, marking the vertical height R303, vertical linearity R307, horizontal hold R203, horizontal centring R211 and focus R221 controls. Figure 4-1b of the VT220 Pocket Service Guide, EK-VT220-PS-003, p. 59, rendered from the scan.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:VT220 Pocket Service Guide (EK-VT220-PS-003).pdf, p. 59 (PDF page 71).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Digital Equipment Corporation.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Digital Equipment Corporation. Manufacturer documentation, used to identify the product and for repair reference.
