File:VT320 DC OK indicator and keyboard LEDs (EK-VT320-PS-001 Figure 1-1).png
Size of this preview: 592 × 599 pixels. Other resolution: 744 × 753 pixels.
Original file (744 × 753 pixels, file size: 50 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

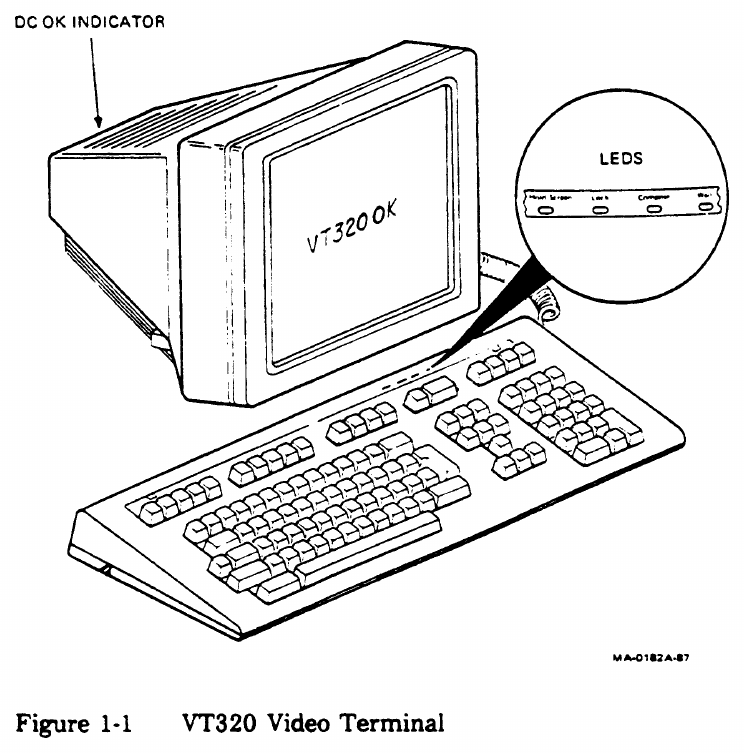

DEC's drawing of the VT320 and LK201 keyboard, marking the DC OK indicator seen through the top ventilation slots and the four keyboard LEDs. Figure 1-1 of the VT320 Pocket Service Guide, EK-VT320-PS-001, p. 2, rendered from the scan.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:VT320 Pocket Service Guide (EK-VT320-PS-001).pdf, p. 2 (PDF page 8).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Digital Equipment Corporation.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Digital Equipment Corporation. Manufacturer documentation, used to identify the product and for repair reference.
