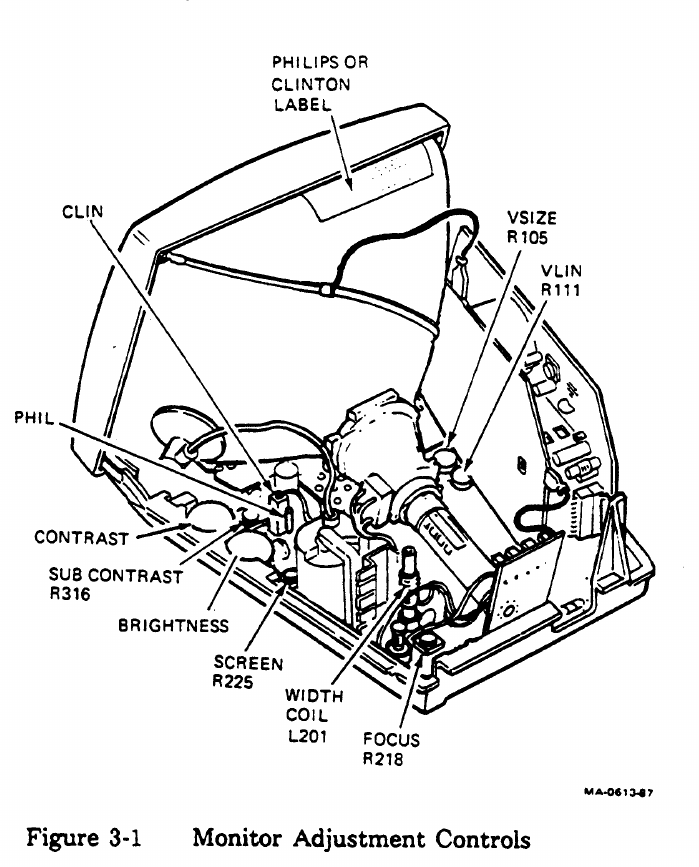

DEC's drawing of the VT320 with the access cover removed, marking the CRT maker's label, the CLIN and PHIL jumpers, the contrast and brightness controls, sub-contrast R316, screen R225, width coil L201, focus R218, vertical size R105 and vertical linearity R111. Figure 3-1 of the VT320 Pocket Service Guide, EK-VT320-PS-001, p. 35, rendered from the scan.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:VT320 Pocket Service Guide (EK-VT320-PS-001).pdf, p. 35 (PDF page 41).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Digital Equipment Corporation.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Digital Equipment Corporation. Manufacturer documentation, used to identify the product and for repair reference.
