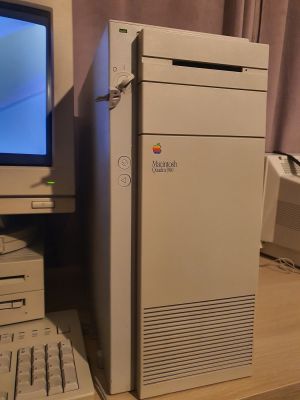

[[File:Macintosh Quadra 900 (photo).jpg|thumb|right|300px|Macintosh Quadra 900. Source: Wikimedia Commons.]] | |||
{| class="wikitable styled-table" style="width:100%; text-align:center;" | {| class="wikitable styled-table" style="width:100%; text-align:center;" | ||
|+ '''Power Issues & Basic Startup Diagnostics''' | |+ '''Power Issues & Basic Startup Diagnostics''' | ||
| Line 220: | Line 221: | ||
If the system won't power on or peripherals don't work, check the key-lock position. | If the system won't power on or peripherals don't work, check the key-lock position. | ||
== ⚠️ PRAM battery — remove it now == | |||
The Quadra 900 carries a 3.6 V 1/2AA lithium PRAM battery. These leak and can '''burst''', spraying corrosive electrolyte across the logic board and destroying nearby components — often while the machine simply sits in storage. '''Remove the PRAM battery from any un-serviced unit.''' If one has leaked, neutralise and clean the residue and repair corroded traces and vias before troubleshooting.<ref name="mac2_batt">[https://68kmla.org/bb/threads/warning-exploding-maxell-pram-batteries.25169/ "Warning! Exploding Maxell PRAM Batteries"], 68kMLA; and [https://macdat.net/macintosh/macii/macintosh_iicx.html MacDat — Macintosh II family]. Source for the leaking/exploding lithium PRAM battery that destroys nearby components.</ref> | |||
== Logic board (tantalum capacitors) == | |||
Unlike the LC and Mac II surface-mount-electrolytic boards, the 68040-family Quadra 900 logic board uses '''tantalum''' capacitors, which do not leak with age — the '''logic board does not normally need recapping'''. If the board misbehaves, look to leaked-PRAM-battery corrosion, socket/connector contacts and the power supply rather than to board capacitors.<ref name="quadra_tant">[https://retroviator.com/2021/09/02/apple-macintosh-quadra-650/ "Apple Macintosh Quadra 650"], Retro Viator; and the Apple Macintosh Quadra/Centris 650 Service Source. Source for the 68040-family logic boards using tantalum capacitors (no logic-board recap needed) while the power supply uses electrolytics that do need replacing.</ref> | |||
== Power supply == | |||
The power supply uses electrolytic capacitors that fail with age (fails to power on, unexpected power-off, clicking when plugged in). '''Recap the power supply''' and confirm the rails.<ref name="mac2_psu">[https://68kmla.org/bb/threads/compact-desktop-power-supply-capacitor-lists-by-make-and-model.35890/ "Compact/Desktop Power Supply Capacitor Lists (by make and model)"], 68kMLA; and [https://www.bigmessowires.com/2016/04/21/capacitor-replacement-in-a-vintage-power-supply/ "Capacitor Replacement in a Vintage Power Supply"], Big Mess o' Wires. Source for the shared desktop PSU form factor (IIci/IIcx/IIvi/IIvx/Performa 600/Quadra 650/Quadra 700), the electrolytic failure symptoms and the PSU capacitor lists.</ref> | |||
== References == | |||
<references /> | |||
== Component-level faults (deep dive) == | |||
=== Surface-mount capacitor leakage === | |||
The Macintosh Quadra 900 logic board uses surface-mount electrolytic capacitors whose electrolyte turns corrosive with age and creeps across the board, eating through traces, pads and IC pins. Typical signatures are a machine that will not chime, chimes but shows no video, plays distorted or missing audio, or shows a garbled or checkerboard screen. Wash the affected area and replace every electrolytic with a tantalum or polymer part, then repair any lifted traces. Apple fitted tantalum capacitors on the Macintosh Quadra 900 logic board, so board-level leakage is unusual on this model, but the electrolytic supply still needs it. The switch-mode power supply (ASTEC or TDK on the LC-family machines) holds its own electrolytics and fails the same way, so recap it alongside the board.<ref name="caps">Mac84, [https://mac84.net/web/macintosh-lc-series-lc-lc-ii-lc-iii-power-supply-recapping-guide-astec-usa/ Macintosh LC series power-supply recapping guide]; the [http://www.maccaps.com/MacCaps/Capacitor_Reference/Capacitor_Reference.html MacCaps capacitor reference]; and iFixit. Source for surface-mount electrolytic leakage eating traces, pads and pins, the ASTEC/TDK LC power-supply cap failures, and Apple's use of tantalum (non-leaking) capacitors on the Quadra 700/900 logic boards.</ref> | |||
=== PRAM battery === | |||
The Macintosh Quadra 900 backs up its clock and Parameter RAM from a 3.6 V ½AA lithium cell. These cells — red Maxell parts especially — leak or burst and corrode the board, so remove an aged one on sight. A flat cell can also stop a soft-power machine booting or disturb the video; left plugged in, trickle power preserves the settings, but a machine switched off at the wall with a dead cell loses them. Clean the area and fit a fresh 3.6 V cell.<ref name="pram">[https://68kmla.org/bb/threads/warning-exploding-maxell-pram-batteries.25169/ Warning! Exploding Maxell PRAM batteries], 68kMLA; and [https://www.macdat.net/repair/kb/batteries_macintosh.html Mac Battery Leaks], MacDat. Source for the 3.6 V ½AA lithium PRAM cell, the Maxell leak/explosion board damage, and soft- versus hard-power PRAM retention.</ref> | |||
=== Boot chime and Sad Mac === | |||
Read the start-up sound first: a normal chime with a black screen points to the display path or the monitor, an absent chime or a "chord of death" points to RAM or a core fault, and a Sad Mac shows a numeric code — see [[Sad Mac Error Codes]]. | |||
== Related Pages == | == Related Pages == | ||
Latest revision as of 13:21, 16 July 2026
Troubleshooting is essential for diagnosing and resolving issues with your Macintosh Quadra 900. This guide covers the most common problems encountered with this tower workstation.
The Quadra 900 shares its case design and many components with the Quadra 950. Most troubleshooting procedures apply to both systems.
Preliminary Checks and Power Supply Basics
[edit | edit source]Before detailed troubleshooting:
- Verify the power cable is securely connected
- Check that the key-lock switch is in the "On" position (not "Off")
- Test with a known-good power outlet
- Disconnect all external peripherals except keyboard and monitor
- Remove all NuBus and PDS cards temporarily
Power supply specifications:
- Input: 100-240V AC, 50-60 Hz
- Maximum output: 303W
- +5V rail: 4.85V – 5.15V
- +12V rail: 11.9V – 12.7V
No Power (Unit Dead)
[edit | edit source].jpg)
| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| No response when power button pressed | Key-lock in "Off" position | Turn key-lock to "On" position |
| No response, key-lock is "On" | Failed power supply | Test power supply outputs; replace if necessary |
| No response | PRAM battery dead or leaking | Replace PRAM battery, check for corrosion |
| No response | Failed power button or front panel cable | Check front panel connections, test power button continuity |
| Fans spin briefly then stop | Power supply capacitor failure | Recap or replace power supply |
| Ticking or clicking sound | Power supply overload or short | Remove all cards and drives; test with minimal configuration |
Chime but No Video
[edit | edit source]| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Chime, no video, drive activity normal | Monitor not connected properly | Check DB-15 video cable connection |
| Chime, no video | Monitor incompatible or failed | Test with known-good monitor |
| Chime, no video | VRAM failure | Reseat or replace VRAM SIMMs |
| Chime, no video | NuBus video card conflict | Remove NuBus video cards, test built-in video |
| Chime, scrambled or distorted video | VRAM failure | Replace VRAM SIMMs |
| Chime, rolling or unstable picture | Monitor sync issues or analog board problem | Try different monitor; check video cable |
Sad Mac Error Codes
[edit | edit source]See the Sad Mac Error Codes page for a complete reference.
| Error Code | Meaning | Recommended Action |
|---|---|---|
| 0000000F | ROM test failed | May indicate logic board failure |
| 0001xxxx | RAM test failure | Reseat or replace RAM SIMMs |
| 0002xxxx | RAM addressing error | Check RAM configuration (must be in groups of 4) |
| 0003xxxx | RAM write/read error | Replace failed SIMM group |
| 0005xxxx | ROM checksum error | May indicate logic board failure |
| 000Exxxx | Data bus test failed | Check for shorts; may indicate logic board failure |
Intermittent Booting or Freezing
[edit | edit source]| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Random crashes during use | Failing capacitors | Inspect and recap logic board and power supply |
| Crashes during heavy load | Insufficient power or overheating | Check power supply voltages; verify fan operation |
| Crashes after warmup | Thermal-related component failure | Check for cold solder joints; inspect capacitors |
| Freezes with disk activity | SCSI chain issues | Check termination and ID conflicts |
| Intermittent boot failures | Dirty or corroded contacts | Clean RAM sockets, NuBus slots, and connectors |
| System hangs at startup | PRAM corruption | Reset PRAM (Cmd+Option+P+R at startup) |
| Erratic behavior | Bad PRAM battery | Replace 3.6V lithium battery |
RAM Issues
[edit | edit source]| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| System reports less RAM than installed | SIMM not seated properly | Reseat all SIMMs |
| System reports less RAM | Mismatched SIMM group | SIMMs must be installed in matched groups of 4 |
| Crashes when accessing large amounts of memory | Failing SIMM | Test by removing SIMM groups one at a time |
| RAM errors on boot | Wrong speed SIMMs | Use 80 ns or faster 30-pin SIMMs |
| Intermittent RAM errors | Dirty SIMM contacts | Clean SIMM contacts with isopropyl alcohol |
SCSI Device Issues
[edit | edit source]| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| SCSI devices not recognized | SCSI ID conflict | Verify each device has unique ID (0-6) |
| Drives not found | Missing termination | Terminate at both ends of SCSI chain |
| System hangs during SCSI scan | Cable or connector issue | Check cables; clean connectors |
| Intermittent drive access | Failing drive or cable | Test with known-good drive and cable |
| Floppy icon with blinking question mark | No bootable system found | Check hard drive, reinstall system software |
Floppy Drive Issues
[edit | edit source]See Macintosh Floppy Drive Maintenance for detailed procedures.
| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Disk not recognized | Dirty read/write heads | Clean heads with isopropyl alcohol |
| Disk stuck in drive | Failed eject mechanism | Manual eject via paperclip hole |
| Disk ejects immediately | Disk unreadable or wrong format | Try different disk; may need head alignment |
| Grinding noise during read | Worn or dirty mechanism | Clean and lubricate drive mechanism |
| Floppy disabled (Secure mode) | Key-lock in "Secure" position | Turn key-lock to normal "On" position |
Audio Issues
[edit | edit source]| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| No startup chime | Speaker disconnected | Check internal speaker connection |
| No sound, chime works | Sound output muted in software | Check Sound control panel settings |
| Distorted audio | Failing capacitors | Recap logic board |
| Crackling or popping | Bad solder joints | Inspect and reflow audio circuit solder joints |
NuBus Card Issues
[edit | edit source]| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Card not recognized | Poor contact | Reseat card; clean edge connector |
| System crashes with card installed | IRQ or resource conflict | Try card in different slot |
| Card works intermittently | Oxidized contacts | Clean card and slot contacts with DeoxIT |
| Multiple cards conflict | Power limitations | Some slots provide only 15W; high-power cards need 25W slots |
Capacitor Failure Symptoms
[edit | edit source]| Symptom | Location | Recommended Action |
|---|---|---|
| No power or immediate shutdown | Power supply | Recap power supply capacitors |
| System instability under load | Power supply | Check and replace filter capacitors |
| Video distortion | Logic board | Inspect and recap VRAM area |
| Audio issues | Logic board | Recap audio section |
| Random crashes | Logic board or power supply | Full recap recommended |
See the Macintosh Quadra 900 Capacitor Replacement Guide for detailed instructions.
Key-Lock Security System
[edit | edit source]The three-position key-lock can cause confusion:
- Off – System will not power on at all
- On – Normal operation
- Secure – System operates but floppy drive and ADB ports are disabled
If the system won't power on or peripherals don't work, check the key-lock position.
⚠️ PRAM battery — remove it now
[edit | edit source]The Quadra 900 carries a 3.6 V 1/2AA lithium PRAM battery. These leak and can burst, spraying corrosive electrolyte across the logic board and destroying nearby components — often while the machine simply sits in storage. Remove the PRAM battery from any un-serviced unit. If one has leaked, neutralise and clean the residue and repair corroded traces and vias before troubleshooting.[1]
Logic board (tantalum capacitors)
[edit | edit source]Unlike the LC and Mac II surface-mount-electrolytic boards, the 68040-family Quadra 900 logic board uses tantalum capacitors, which do not leak with age — the logic board does not normally need recapping. If the board misbehaves, look to leaked-PRAM-battery corrosion, socket/connector contacts and the power supply rather than to board capacitors.[2]
Power supply
[edit | edit source]The power supply uses electrolytic capacitors that fail with age (fails to power on, unexpected power-off, clicking when plugged in). Recap the power supply and confirm the rails.[3]
References
[edit | edit source]- ↑ "Warning! Exploding Maxell PRAM Batteries", 68kMLA; and MacDat — Macintosh II family. Source for the leaking/exploding lithium PRAM battery that destroys nearby components.
- ↑ "Apple Macintosh Quadra 650", Retro Viator; and the Apple Macintosh Quadra/Centris 650 Service Source. Source for the 68040-family logic boards using tantalum capacitors (no logic-board recap needed) while the power supply uses electrolytics that do need replacing.
- ↑ "Compact/Desktop Power Supply Capacitor Lists (by make and model)", 68kMLA; and "Capacitor Replacement in a Vintage Power Supply", Big Mess o' Wires. Source for the shared desktop PSU form factor (IIci/IIcx/IIvi/IIvx/Performa 600/Quadra 650/Quadra 700), the electrolytic failure symptoms and the PSU capacitor lists.
Component-level faults (deep dive)
[edit | edit source]Surface-mount capacitor leakage
[edit | edit source]The Macintosh Quadra 900 logic board uses surface-mount electrolytic capacitors whose electrolyte turns corrosive with age and creeps across the board, eating through traces, pads and IC pins. Typical signatures are a machine that will not chime, chimes but shows no video, plays distorted or missing audio, or shows a garbled or checkerboard screen. Wash the affected area and replace every electrolytic with a tantalum or polymer part, then repair any lifted traces. Apple fitted tantalum capacitors on the Macintosh Quadra 900 logic board, so board-level leakage is unusual on this model, but the electrolytic supply still needs it. The switch-mode power supply (ASTEC or TDK on the LC-family machines) holds its own electrolytics and fails the same way, so recap it alongside the board.[1]
PRAM battery
[edit | edit source]The Macintosh Quadra 900 backs up its clock and Parameter RAM from a 3.6 V ½AA lithium cell. These cells — red Maxell parts especially — leak or burst and corrode the board, so remove an aged one on sight. A flat cell can also stop a soft-power machine booting or disturb the video; left plugged in, trickle power preserves the settings, but a machine switched off at the wall with a dead cell loses them. Clean the area and fit a fresh 3.6 V cell.[2]
Boot chime and Sad Mac
[edit | edit source]Read the start-up sound first: a normal chime with a black screen points to the display path or the monitor, an absent chime or a "chord of death" points to RAM or a core fault, and a Sad Mac shows a numeric code — see Sad Mac Error Codes.
