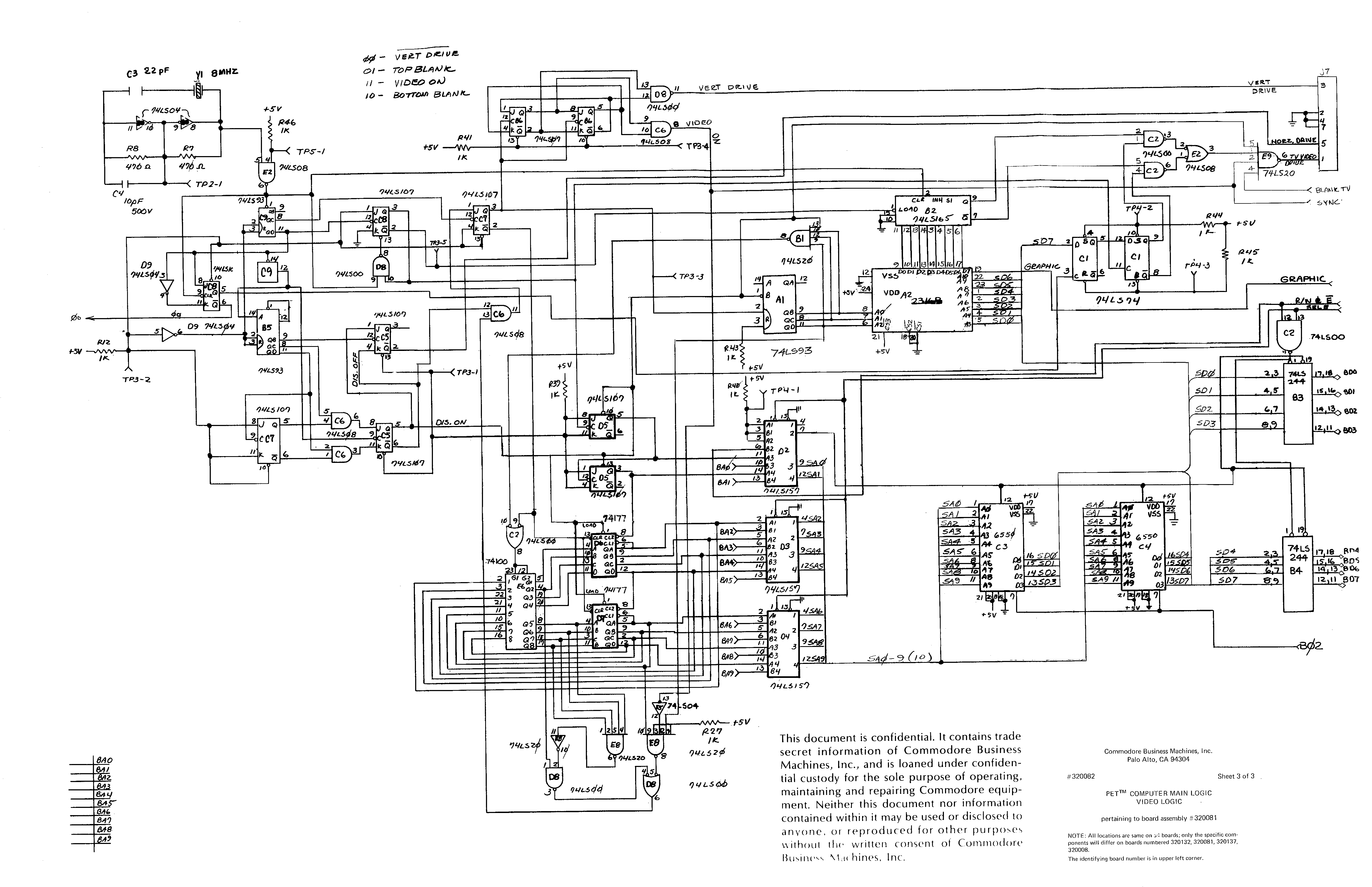

Schematic 320082 (Sheet 3 of 3, Board 320081)

Revision as of 15:38, 17 April 2025 by Josh (talk | contribs) (Auto-created Commodore PET 2001 schematic page)

(diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)

Download the file here: 320081-3.gif
