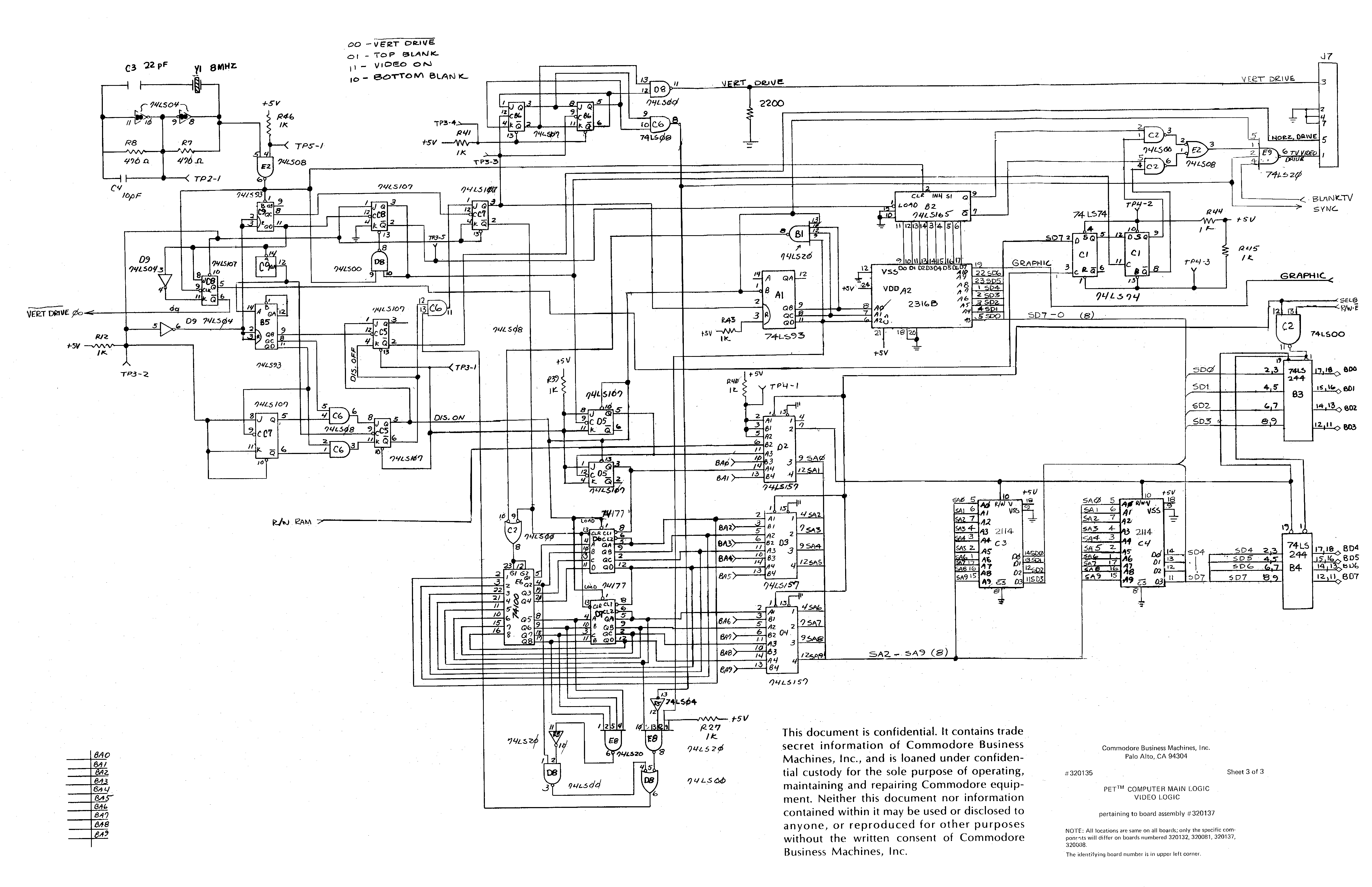

Schematic 320135 (Sheet 3 of 3, Board 320137)

From RetroTechCollection
Revision as of 15:39, 17 April 2025 by Josh (talk | contribs) (Auto-created Commodore PET 2001 schematic page)
(diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)

Download the file here: 320137-3.gif
