Commodore PET 4000 Series Maintenance Guide

Proper maintenance of the Commodore PET 4000 Series is essential to preserve functionality and prevent age-related failures. This guide covers cleaning, keyboard servicing, capacitor replacement, power supply care, and CRT-specific issues unique to these systems.
Regular Cleaning
[edit | edit source]The PET 4000 Series features a hinged metal chassis for easy internal access. Dust buildup and oxidized contacts are common in these systems.
Internal Cleaning
[edit | edit source]- Disconnect the PET from mains power.

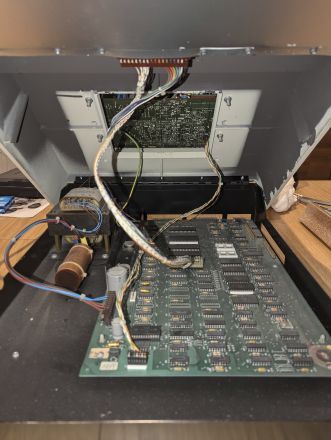

- Carefully lift the PET's top panel to access the motherboard and CRT.
- Use compressed air and an anti-static brush to clean:
- The motherboard (especially under ROM/RAM sockets)
- Power supply area
- CRT yoke and anode cup region
- Cassette deck area (if present)
- Use isopropyl alcohol (>90%) and cotton swabs to clean stubborn areas, but avoid soaking.
External Case and CRT
[edit | edit source]- Wipe the painted metal case with a mild soap solution on a damp microfiber cloth.
- CRT screen can be cleaned using a lint-free cloth and glass cleaner sprayed onto the cloth.
- Avoid aggressive rubbing of the screen label ("Commodore") which may degrade over time.
Power Supply Maintenance
[edit | edit source]The PET 4000 Series uses an unregulated linear power supply. While these PSUs are reliable, they require inspection:
Inspection Checklist
[edit | edit source]- Check transformer and rectifier board for heat stress and corrosion.
- Examine all RIFA X2 safety capacitors — these are known to fail with age. Replace immediately if original.
- Check solder joints around bridge rectifier and voltage regulators (7812, 7805, etc).
- Confirm voltages at the edge connector:
- +5V, -5V, and +12V should be within 5% tolerance.
Capacitor Replacement (Recapping)
[edit | edit source]Like many vintage electronics, the PET contains aging electrolytic capacitors.
Symptoms of Failing Capacitors
[edit | edit source]- Vertical hold issues on CRT
- Unstable startup or flickering screen
- Noise in cassette audio playback/record
- Random freezes or garbled text
Recommended Areas to Recap
[edit | edit source]- Mainboard decoupling capacitors (especially around RAM chips)
- CRT analog section (for power filtering)
- Power supply (main filter caps, axial types)
Refer to the Commodore PET 4000 Series Capacitor Replacement Guide for a full list.
Keyboard Maintenance
[edit | edit source]The PET 4000 Series typically features a full-travel keyboard, which may suffer from key bounce, non-responsive keys, and deterioration.
Cleaning Procedure
[edit | edit source]- Remove keyboard from the chassis.
- Disassemble keycaps and springs (carefully photograph layout).
- Clean contact pads on the PCB using isopropyl alcohol.
- Polish carbon contact domes if applicable.
- Inspect for lifted traces or oxidized vias.
Repair Tips
[edit | edit source]- Use conductive paint to restore worn-out pads.
- Replace deteriorated foam/copper domes with modern equivalents (keyboard repair kits exist).
- For permanently dead rows/columns, trace the keyboard matrix and check solder joints or connector oxidation.
CRT Maintenance
[edit | edit source]The CRT in the PET 4000 Series may experience issues over time.
Common Issues
[edit | edit source]- Cold solder joints on CRT neck board or deflection board.
- CRT brightness/focus may drift — use internal trimpots for focus and brightness (accessible on deflection board).
- If the CRT fails to light up:
- Check filament voltage
- Verify flyback transformer and HV section
Safety Warning: CRT displays contain high voltage and can retain a charge even when powered off. Proper discharge procedures must be followed before servicing.
Diagnostics and Burn-In
[edit | edit source]Diagnostic Tools
[edit | edit source]- Use a PET tester ROM (e.g., dead test cartridge or test harness) for RAM and ROM diagnostics.
- Use a logic probe or oscilloscope to check clock (phi2) and reset behavior.
Burn-In Tips
[edit | edit source]- Leave PET running on test pattern for several hours to identify marginal components.
- Monitor voltage regulators for excessive heat.
Voltage Test Points
[edit | edit source]Use a multimeter to check:
- +5V at 6502 Vcc (Pin 8)
- +12V on cassette motor supply
- CRT filament voltage (typically ~6.3VAC)
- Mains side capacitors should not show leakage or bulging.
Tools You’ll Need
[edit | edit source]- ESD-safe screwdriver set
- Chip puller or spudger
- Isopropyl alcohol (99%)
- Contact cleaner (e.g., DeoxIT)
- Soldering iron with fine tip
- Capacitor tester (optional)
- Logic probe or oscilloscope (advanced)
