File:Amstrad PC3286 processor board removal (user manual p. 7-5).png
Size of this preview: 480 × 600 pixels. Other resolution: 1,322 × 1,652 pixels.
Original file (1,322 × 1,652 pixels, file size: 415 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

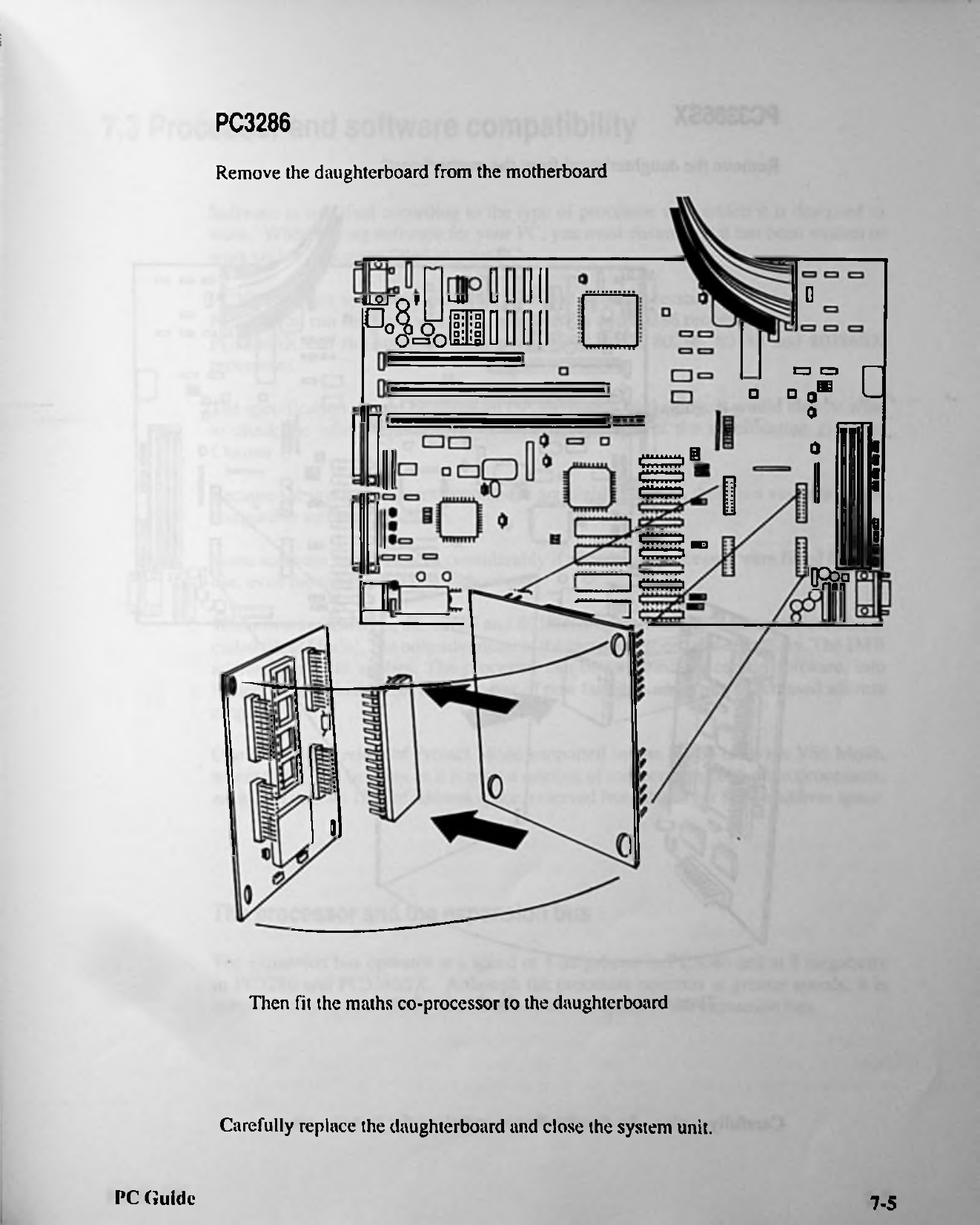

Amstrad's drawing of the PC3286 processor daughterboard being lifted out of the main board to fit a maths co-processor, page 7-5 of the PC3086/PC3286/PC3386SX user manual.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered at 200 dpi from PDF page 123 of the hosted File:Amstrad PC3086 PC3286 PC3386SX User Manual.pdf.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Amstrad plc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Amstrad plc. Hosted for preservation and repair reference, with the source cited.
