Amstrad PC3286 Maintenance Guide
The Amstrad PC3286 and Amstrad PC3386SX use the same main board with different processor daughterboards, and Amstrad's user manual gives one set of option links for both. The sections below cover that board: the daughterboard, memory, cache, links, video switches and drives. Safety, opening the case, the clock chip and head parking are the same on all three Generation 3 models and are described in the Amstrad PC3086 Maintenance Guide. Model-specific points for the 386SX are in the Amstrad PC3386SX Maintenance Guide, and faults in the Amstrad PC3286 Troubleshooting Guide.[1][2] Amstrad's service manual (SM-PC3000) has not been published online.[3]
Before starting
[edit | edit source]- Follow the safety notes and the lid procedure in the PC3086 guide: unplug the machine, check the voltage selector, slide the lid forward about three inches only and rest it on the front panel.[1]
- Keep one hand on the metal cabinet while working on the board.[1]
- After changing memory, the co-processor or the video adaptor, run SETUP so that the CMOS RAM matches the hardware.[4]
Processor daughterboard and co-processor
[edit | edit source].png)
The co-processor socket is on the processor daughterboard: an 80287 on the PC3286, an 80387SX on the PC3386SX. No links need changing.[2]
- Open the system unit.
- Remove the daughterboard from its connector on the main board.
- Fit the co-processor in the empty socket on the daughterboard.
- Refit the daughterboard carefully, close the case and record the co-processor in SETUP.[2][4]

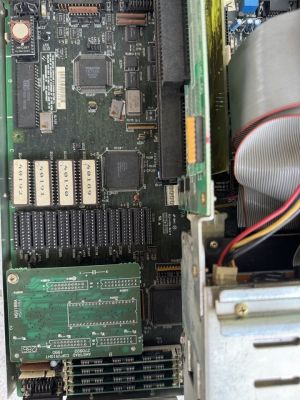

The PC3286 board seen on Vogons is marked MS0188A, "286", "Amstrad copyright 1990" and Z70922.[5]
Memory
[edit | edit source].png)
Memory goes in four SIMM sockets on the main board, to a maximum of 16 MB. A 256 KB SIMM holds nine bits per byte, the ninth for parity, and may be built from nine 256 Kbit chips or from two 1 Mbit chips and one 256 Kbit chip.[6]
- The PC3286 takes one or two pairs. A single pair goes in the outer two sockets (SKT156).
- The PC3386SX must have four identical SIMMs, giving 1, 4 or 16 MB, because it reads memory 32 bits wide.
- Set links LK19 to LK22 for the total fitted, and LK23 and LK24 for the slowest SIMM.[6]
| Total | SKT156 | SKT157 | LK22 | LK21 | LK20 | LK19 |
|---|---|---|---|---|---|---|
| 512 KB | 2 × 256 KB | Empty | In | In | In | Out |
| 640 KB | 2 × 256 KB | 2 × 64 KB | In | In | Out | In |
| 1 MB* | 2 × 256 KB | 2 × 256 KB | In | In | Out | Out |
| 2 MB | 2 × 1 MB | Empty | In | Out | Out | In |
| 2.5 MB | 2 × 256 KB | 2 × 1 MB | Out | In | In | In |
| 4 MB* | 2 × 1 MB | 2 × 1 MB | Out | In | In | Out |
| 8 MB | 2 × 4 MB | Empty | Out | In | Out | Out |
| 16 MB* | 2 × 4 MB | 2 × 4 MB | Out | Out | Out | Out |
* The only sizes allowed on the PC3386SX.[6]
| DRAM speed | LK23 | LK24 |
|---|---|---|
| 80 ns | Out | Out |
| 100 ns | In | Out |
| 120 ns | Out | In |
| 150 ns | In | In |
Cliff Lawson of Amstrad confirms that the PC3286 and PC3386SX use the same memory links as the PC2386, with the PC3286 also taking the intermediate sizes.[7]
To fit a SIMM, insert it into the socket at about 45° and turn it upright, as Amstrad's drawing shows. With the case closed, switch on and run SETUP to set the base and extended memory; extended memory is set in 64 KB steps, and what is left over is available as LIM expanded memory through MEMM.SYS.[6][4][8]
Cache
[edit | edit source]Amstrad lists 64 KB of 35 ns cache RAM as optionally fitted; where the cache sockets are empty, chips can be added. Links LK42 and LK37 are both in for 35 ns chips. LK36 sets whether memory on expansion cards is cached; turn it off if a card with bank-switched memory, such as a LIM expanded memory card, is fitted. The DEVICE command shows and changes which areas are cached.[6][1][9]
Option links
[edit | edit source].png)
| Link | Out (no jumper) | In (jumper fitted) |
|---|---|---|
| 9, 10, 11, 12 | Mouse interrupt; fit one only: LK9 IRQ 5 (default), LK10 IRQ 4, LK11 IRQ 9, LK12 IRQ 3 | |
| 13 | 256 KB base memory when LK29 is out | 512 KB base memory when LK29 is out |
| 14 | External video adaptor is monochrome (built-in VGA disabled) | External video adaptor is colour |
| 17, 18 | Do not change | |
| 19 to 22 | Memory size; see the table above | |
| 23, 24 | DRAM speed; see the table above | |
| 25, 26 | Do not change; pins 1 and 2 | |
| 27 | On-board hard disk adaptor disabled | Enabled |
| 28 | On-board VGA disabled | Enabled |
| 29 | Base memory as set by LK13 | 640 KB base memory |
| 30 | Mouse adaptor disabled | Enabled |
| 31 | Parallel port disabled | Enabled |
| 32 | Floppy controller disabled | Enabled |
| 33 | Serial port (COM1) disabled | Enabled |
| 34 | Power-on self test disabled | Enabled |
| 36 | Cache on expansion bus disabled | Enabled |
| 37, 42 | Cache RAM is 35 ns; do not change | |
| 38, 41, 43, 47 | Do not change; pins 1 and 2 | |
| 500, 501 | Do not change; pins 1 and 2 on the PC3386SX (if present), pins 2 and 3 on the PC3286 | |
| 720 | PC3386SX daughterboard: pipelining disabled | Pipelining enabled |
Amstrad describes LK34 as for engineering diagnostics and advises users not to change it. The base memory and video links (LK13, LK14, LK29) only matter when the CMOS RAM is blank, for example just after a new clock chip.[1] Lawson's list of links for the "1/2/3xxx" machines uses the same numbers for the built-in devices.[7]
To use a serial mouse in place of the Amstrad mouse, remove LK30 to disable the built-in mouse adaptor; Lawson notes that the /C switch of MOUSE.COM is not enough on its own.[10][1]
Video DIP switches
[edit | edit source]| Switch | On | Off |
|---|---|---|
| 1 | Multi-frequency monitor attached | Fixed-frequency VGA monitor (default) |
| 2 | PS/2 mode (default) | AT mode |
| 3 | Reserved | |
| 4 | 16-bit bus interface to the VGA | 8-bit bus interface |
Amstrad's manual says switch 4 is normally on, but the same paragraph calls 8-bit mode the default, chosen for compatibility; 16-bit mode can be faster. Lawson suggests switches 1, 2 and 4 on.[11][7]
Drives
[edit | edit source]- The built-in hard disk adaptor is AT-type IDE. SETUP holds the drive type; the 40 MB drive is type 17 in Amstrad's example, and types 50 and 51 are user-defined for drives not in the table on pp. 9-2 to 9-3.[12][4]
- Park the heads with PARK.COM before moving the machine (see the PC3086 guide).[13]
- A 3.5-inch 1.44 MB or 5.25-inch 1.2 MB floppy drive was fitted as standard; the internal cabling supports two floppy drives and two IDE hard disks.[9]
- LK27 disables the on-board hard disk adaptor and LK32 the floppy controller, for use with controllers in expansion slots.[1]
See Hard Drive Maintenance and Repair and Floppy Drive Repair.
Capacitors
[edit | edit source]No capacitor values have been published for this board or its power supply: the service manual is not online and no community recap list exists.[3][14] See Capacitor Failure Symptoms.
Tools
[edit | edit source]- Cross-head screwdrivers and an anti-static strap
- Jumper links, and SIMMs of the speed set on LK23 and LK24
- Digital multimeter
- See Recommended Tools.
