Recommended Tools for Repairing Vintage Electronics
Equipment for retro technology repair and maintenance
These are tools in common use for vintage computer and console repair. Named products are examples that can still be bought, not endorsements; equivalents from other makers do the same job. Most repairs need only a temperature-controlled soldering iron, a multimeter, a good set of screwdrivers and isopropyl alcohol. Where a specification matters, it is cited.
Old boards are easily damaged by heat: pads and tracks lift when a joint is held too hot for too long. Examples: Hakko FX-888D, Weller WE1010, Pinecil, Miniware TS100
A range of tips
Matching the tip to the joint

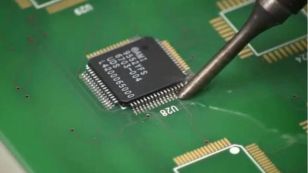

A larger chisel tip transfers heat faster, so the joint is made sooner; fine conical tips are for fine-pitch work
Leaded solder, Sn63Pb37 or Sn60Pb40
Vintage boards
Kester's alloy chart gives Sn63Pb37 as eutectic at 183 °C, Sn60Pb40 as 183-190 °C, and lead-free SAC305 (Sn96.5Ag3Cu0.5) as 217-220 °C.[2] Leaded solder works at lower temperatures on original leaded joints
Flux
Wetting and removing oxide
A no-clean gel or a flux pen covers most work; clean residue off afterwards
Desoldering pump
Single through-hole joints
Example: Engineer SS-02
Desoldering braid
Clearing pads, removing surface-mount parts
Use fresh braid with flux
Desoldering gun or vacuum station
Multi-pin through-hole work
For removing 28- and 40-pin chips or fitting sockets. Examples: Hakko FR-301, ZD-915
Hot-air rework station
Surface-mount removal
Examples: Quick 861DW, Yihua 858D. Used to lift surface-mount electrolytics without tearing pads; see Capacitor Failure Symptoms
Bandwidth sets how fast an edge it can show, so a scope for logic signals needs far more bandwidth than the machine's clock frequency
Logic probe
High, low, floating or pulsing
Quick checks on digital pins
ESR meter
Electrolytic capacitor condition
Compare with the datasheet or a known-good identical part. Examples: MESR-100, DER EE DE-5000 LCR meter
Bench power supply with current limit
Powering a board without its own supply; finding shorts
Current limiting stops a short drawing unlimited current. Nichicon's voltage treatment for long-stored capacitors (charging to rated voltage through about 1 kΩ for about 30 minutes) needs an adjustable supply; see Nichicon Application Guidelines for Aluminium Electrolytic Capacitors
Thermal camera or IR thermometer
Finding a shorted part on a dead board
A shorted part warms up first
EPROM and GAL programmer
Reading and writing ROMs and programmable logic
Examples: XGecu TL866II Plus and T48, GQ-4X. The 2708, 2716, 2532 and 2732 EPROMs need programming voltages that current programmers no longer supply[3]
Retro Chip Tester Professional
Testing RAM, ROM and logic chips out of circuit
A standalone tester from 8Bit-Museum.de, not a programmer. It tests SRAMs, DRAMs, (E)(P)ROMs and over 1,200 TTL and CMOS logic chips, saves ROM contents to a memory card and identifies known ROMs from a database of 400,000 entries. Adapters dump C64, VIC-20, Atari VCS and MSX cartridges, and a programming adapter writes 2708, 2716, TMS2716, 2532, 2732 and 2564 EPROMs[3]
The cord must contain a current-limiting resistor; never connect yourself straight to mains earth. ANSI/ESD S1.1 calls for enough resistance to keep the current below 0.5 mA at the highest voltage likely to be met: about 800 kΩ is enough up to 240 V AC, and 1 MΩ is specified because it is a standard value. The resistor sits near the cuff end of the cord[4]
ESD mat and earth cord
A static-safe bench surface
The mat's earth cord also includes a current-limiting resistor[4]
Nichicon recommends alcohol-based cleaning agents for boards carrying its aluminium electrolytics and advises against halogen-based ones[6]
Soap and water
Electrolyte on skin
Nichicon's first aid for electrolyte on skin is washing with soap and water[6]
Contact cleaner
Oxidised edge connectors, switches and potentiometers
A product made for electronics, such as DeoxIT D5, applied sparingly to the contact
Compressed air or a blower
Dust
Canned air held at an angle can spray liquid propellant; a bulb blower avoids this
Lint-free swabs and cloths
Precision cleaning
For floppy drive heads, follow the drive maker: Apple's Disk II procedure uses alcohol on a cotton swab, while Tandon forbids hand-cleaning its heads; see Floppy Drive Repair
BlueSCSI and SCSI2SD for SCSI machines; Gotek-type emulators for floppy interfaces; IDE-to-CF and IDE-to-SD adapters
Floppy imaging hardware
Reading and writing original media
Greaseweazle and KryoFlux read flux transitions, and can check a repaired drive against known-good images; see Floppy Drive Repair
Floppy alignment diskette
Radial track alignment
Tandon's checks for its TM100 drives need a dual-channel oscilloscope and a certified alignment diskette, Dysan 224/2A or equivalent; see Tandon TM100-2
ROM SIMM programmer
Writing replacement Macintosh ROM SIMMs
Doug Brown's open-source programmer writes ROM SIMMs for the SE/30, IIx, IIcx, IIci, IIfx and IIsi[7]
Apple's LaserWriter Printer Technical Procedures opens its Take-Apart section with "Equipment Needed for LaserWriter Service" and "Main Screw Types Used", followed by safety, electrostatic discharge and other precautions. It names the two adjustment procedures by Apple part number, 011-7052 (laser power) and 011-7051 (image skew), each of which needs specific test equipment.[8]
Apple's Service Source manuals for the all-in-one Macintoshes include a Light Meter Setup procedure covering three light meter models: the R77 (Apple part number 076-0310), the L-248 and the 246. The meter is used to set screen luminance in the video adjustments; see Macintosh LC 520/550/575 Service Source and Performa 500 Series Service Source.[9]
Apple TechStep User Guide: Apple's 1992 guide to TechStep, the hand-held tester Apple service providers used. It tested machines through their external ports with plug-in ROM packs for each product family, so Apple symptom charts that say "run the TechStep test" assume that hardware.
Chilton's Guide to Macintosh Repair and Maintenance: Gene B. Williams, Chilton Book Company, 1986, xii + 212 pages. A third-party book written for owners of the 128K and 512K Macintosh, working at the level of a multimeter and the board; its introduction lists the tools needed and chapter 1 covers safety, danger spots, measuring voltage and soldering. Where it and an Apple manual disagree, follow Apple.
Apple Color OneScanner 1200/30 Service Source: its symptom charts trace a chattering scanner that will not scan, and a lamp that lights while the drive motor does not move, to the optical assembly transport lock; Additional Procedures covers unlocking it.[10]
