Amstrad PC3286 Troubleshooting Guide
Fault-finding for the Amstrad PC3286, whose main board is shared with the Amstrad PC3386SX. The start-up sequence, the self-test dots and Amstrad's full lists of non-fatal and fatal messages are common to the three Generation 3 models and are set out in the Amstrad PC3086 Troubleshooting Guide; the sections below cover what is particular to the 286 and 386SX board. Links, SIMMs and switches are described in the Amstrad PC3286 Maintenance Guide.[1] Amstrad's service manual, with the schematics, has not been published online, so there are no official test points or voltage tables.[2]
Start-up messages
[edit | edit source]With no prepared hard disk, a working PC3286 or PC3386SX finishes its self test with:[3]
AMSTRAD PC3286 (or PC3386SX) (V2.0) (c) 1990 AMSTRAD plc 640Kb of BASE memory Insert a system disk into Drive A Press <F1> to change floppy type or press any other key to continue
| Message | Cause | Action |
|---|---|---|
| Please set user options-Run Setup | CMOS RAM contents invalid, for example after a new clock chip | Boot from the system disk and run SETUP[1] |
| Please check keyboard | Key held down or keyboard not connected | Clear the keyboard and check the plug[3] |
| Insert a SYSTEM disk into drive A, on a machine with a hard disk | The CMOS RAM does not hold the right hard disk type | Run SETUP and set the drive type (type 17 for Amstrad's 40 MB drive in the manual's example)[1][3] |
| Error: Faulty CACHE RAM | Cache chips faulty or wrongly fitted | Check the cache chips and that LK37 and LK42 are in for 35 ns chips; DEVICE CACHE OFF switches the cache off[1][4][5]
|

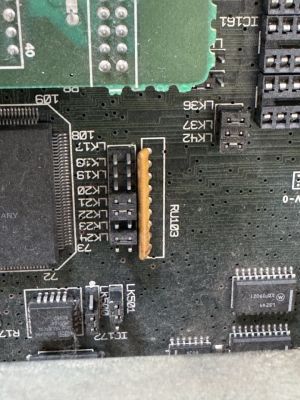

| Error: Faulty SYSTEM RAM, or parity error | SIMM fault, or SIMMs that do not match the links | Check the pairing rules and links LK19 to LK22; set LK23 and LK24 for the slowest SIMM[1][4] |
| WARNING: CMOS battery failed | Battery inside the clock module exhausted | Replace the clock module (see the PC3086 guide)[1][6] |
Setup and speed
[edit | edit source]- Amstrad's manual runs SETUP (version 2.0) from the PC's own system disk at the DOS prompt. Cliff Lawson of Amstrad gives Ctrl-Alt-S at the DOS prompt for the 3000 and 4000 series.[3][7]
- An owner who could not get Ctrl-Alt-S to work used the SETUP.EXE that Lawson provided for the older 1000 and 2000 series. It reported the machine as a PC2286 and offered no speed above 12 MHz, although a benchmark suggested the processor was running faster. Use the SETUP from the PC3286 or PC3386SX system disk.[8][7]
DEVICE SPEEDwith no number returns the speed as an errorlevel (16 for a 16 MHz 80286; 100 is added for an 80386SX).DEVICE SPEED nsets a lower speed, down to 4 MHz.[5]- A copy-protected game that rejects its own disk at full speed may load with
DEVICE SPEED 5 /F, which slows the processor only during floppy access.[5]
No display or no POST
[edit | edit source]A PC3286 described on Vogons in 2024 powered up but would not POST. The owner had measured the supply voltages as correct and had replaced the Dallas clock module with a Necroware nwX287, without effect. Another member suggested setting video DIP switches 1, 2 and 4 on, the setting Lawson recommends. The thread recorded no fix.[9][7] The owner's list of link positions on that board shows LK25, LK26 and LK47 on pins 2 and 3 and LK501 on pins 1 and 2, where Amstrad's table gives pins 1 and 2 for LK25, LK26 and LK47 and pins 2 and 3 for LK501 on a PC3286; whether this was a board revision or a fault was not established.[9][10]
Checks that follow from Amstrad's documentation:
- Count the self-test dots under "Please wait." to see how far the test got (see the PC3086 guide).[1][11]
- Check the video DIP switches; switch 1 on suits only a multi-frequency monitor, and switch 4 selects an 8 or 16-bit interface to the VGA.[12]
- To rule out the built-in VGA, remove LK28 and fit a video card in a slot.[10]
- Reseat the processor daughterboard and the SIMMs, and compare every link with Amstrad's table.[13][10]
Mouse and expansion cards
[edit | edit source]- The Amstrad mouse adaptor uses IRQ 5 by default (LK9); LK10, LK11 and LK12 move it to IRQ 4, 9 or 3. A network card or other adaptor on the same interrupt will conflict with it.[10]
- For a serial mouse, remove LK30 to disable the mouse adaptor; Lawson notes that the /C switch of MOUSE.COM does not do this on its own.[14]
- Free interrupts in Amstrad GmbH's table are IRQ 3, 10, 11, 12 and 15.[11]
- With a LIM expanded memory card fitted, turn off the expansion-bus cache with LK36, not with the DEVICE command.[5][10]
Video
[edit | edit source]| Symptom | Action |
|---|---|
| Software runs but the display is wrong | Turn DIP switch 2 off (AT mode), or try MODE MONO or MODE CO80; use DEVICE DISPLAY for CGA, MDA or Hercules emulation[12][5]
|
| Display or compatibility problems after switch 4 has been set on | Set it off again; Amstrad provides the 8-bit interface, in which the VGA behaves electrically like an XT card, for compatibility[12] |
| A second, monochrome adaptor is to be used | Only an MDA or Hercules card is allowed with the built-in VGA, and only in AT mode[12] |
Final notes
[edit | edit source]- For Windows/386, Novell, UNIX and OS/2, Amstrad recommends 640 KB of base memory and all the rest as extended memory.[15]
- See also Capacitor Failure Symptoms and Hard Drive Maintenance and Repair.
