File:AppleVision 1710AV and 1710 exploded view (Service Source).png
Size of this preview: 370 × 599 pixels. Other resolution: 1,033 × 1,672 pixels.
Original file (1,033 × 1,672 pixels, file size: 399 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

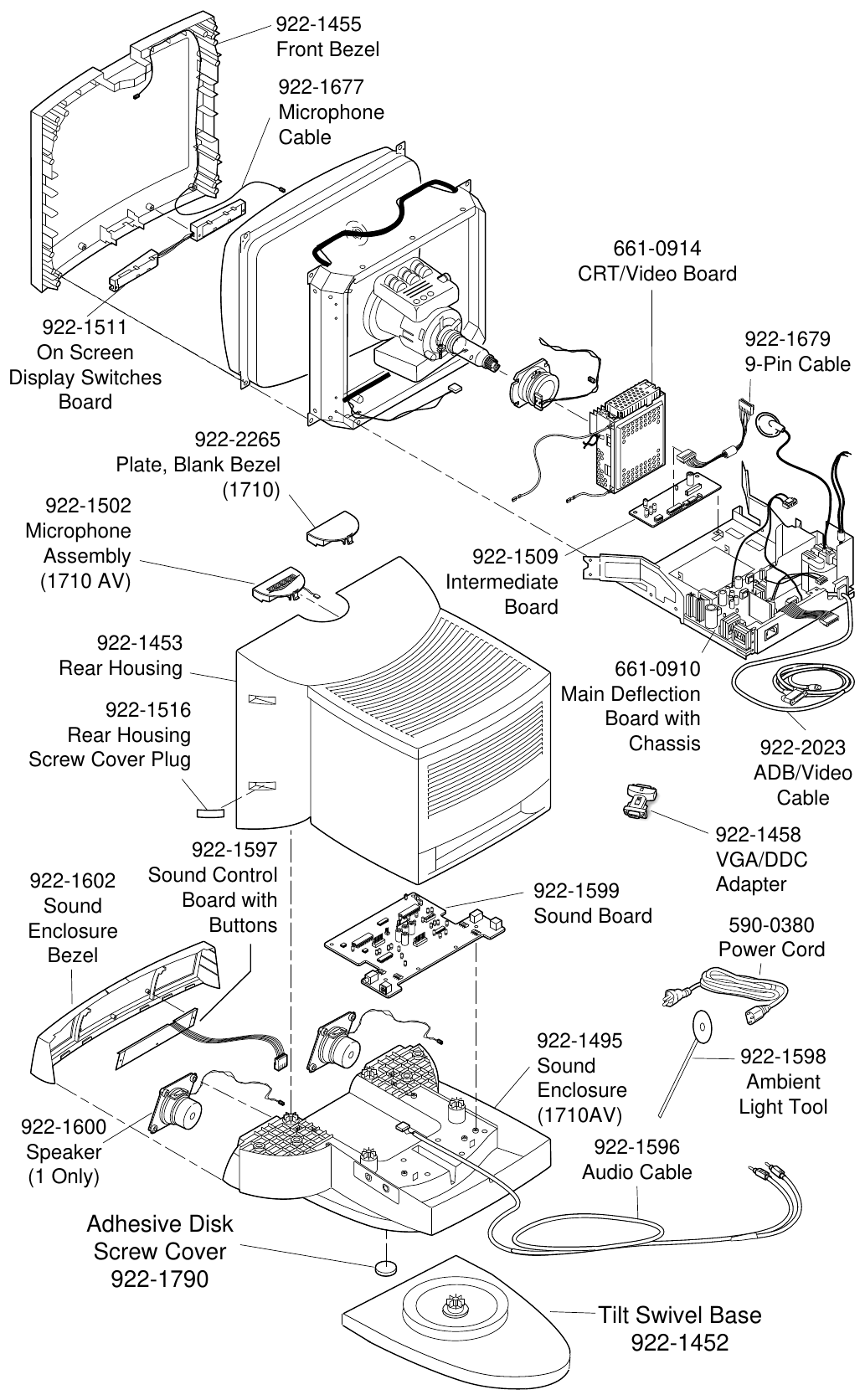

Exploded view of the AppleVision 1710AV and 1710 displays with Apple service part numbers. Rendered from page 181 of Apple's AppleVision 1710AV/1710 Display Service Source, hosted as File:Applevision 1710av display.pdf. Used on Apple AppleVision 1710 Display General Maintenance.
