File:Apple AudioVision 14 Display exploded view (Service Source).png
Size of this preview: 406 × 599 pixels. Other resolution: 1,027 × 1,515 pixels.
Original file (1,027 × 1,515 pixels, file size: 360 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

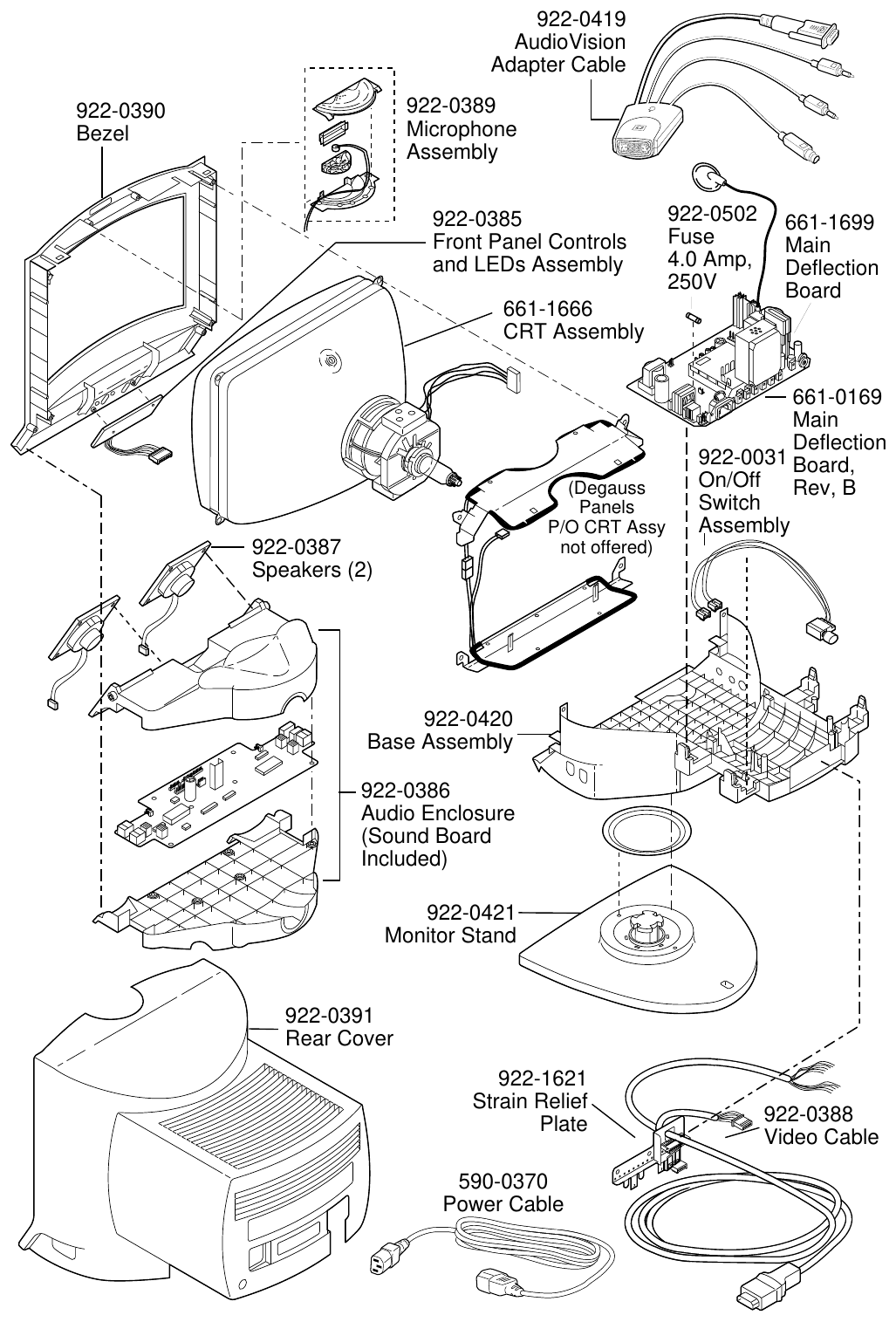

Exploded view of the Apple AudioVision 14 Display with Apple service part numbers, including the fuse (922-0502, 4.0 A 250 V). Rendered from page 121 of Apple's Apple AudioVision 14 Display Service Source, hosted as File:Audiovision 14 display.pdf. Used on Apple AudioVision 14 Display Troubleshooting Guide.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Apple Service Source (retrieved 2026-10-02).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed; used to identify the product and for repair reference, with the source cited.
