File:Apple LaserWriter Pro 600 IO board diagram.png
Summary
[edit | edit source]

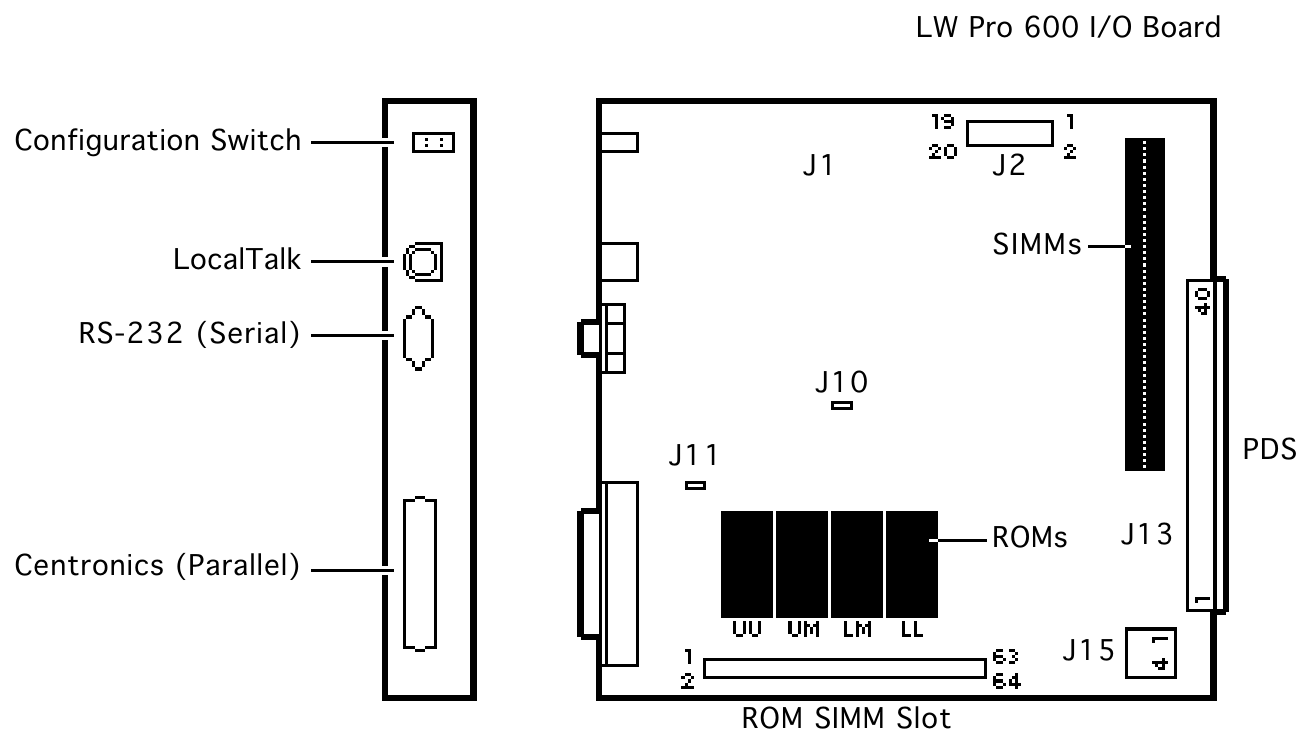

Apple's locator drawing of the LaserWriter Pro 600 I/O board and back panel: configuration switch, LocalTalk, RS-232, Centronics parallel, SIMM sockets, ROMs UU/UM/LM/LL, ROM SIMM slot, PDS connector J13 and connectors J1, J2, J10, J11 and J15. Rendered from the LaserWriter Pro 600/630 Service Source, Troubleshooting, Circuit Board Diagrams p. 26 (PDF p. 81), header and navigation arrow removed.
Source
[edit | edit source]
Apple Computer, Inc., LaserWriter Pro 600/630 Service Source (296 pp.), hosted on this wiki as File:Laserwriter pro 600.630.pdf (see LaserWriter Pro 600/630 Service Source), PDF p. 81. Rendered at 220 dpi on 2026-10-02.
Author
[edit | edit source]
Apple Computer, Inc.
Licence
[edit | edit source]
Copyright Apple Computer, Inc. Hosted for preservation and repair reference, with the source cited.
