File:Apple Modem 300-1200 exploded view (Apple Technical Procedures).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

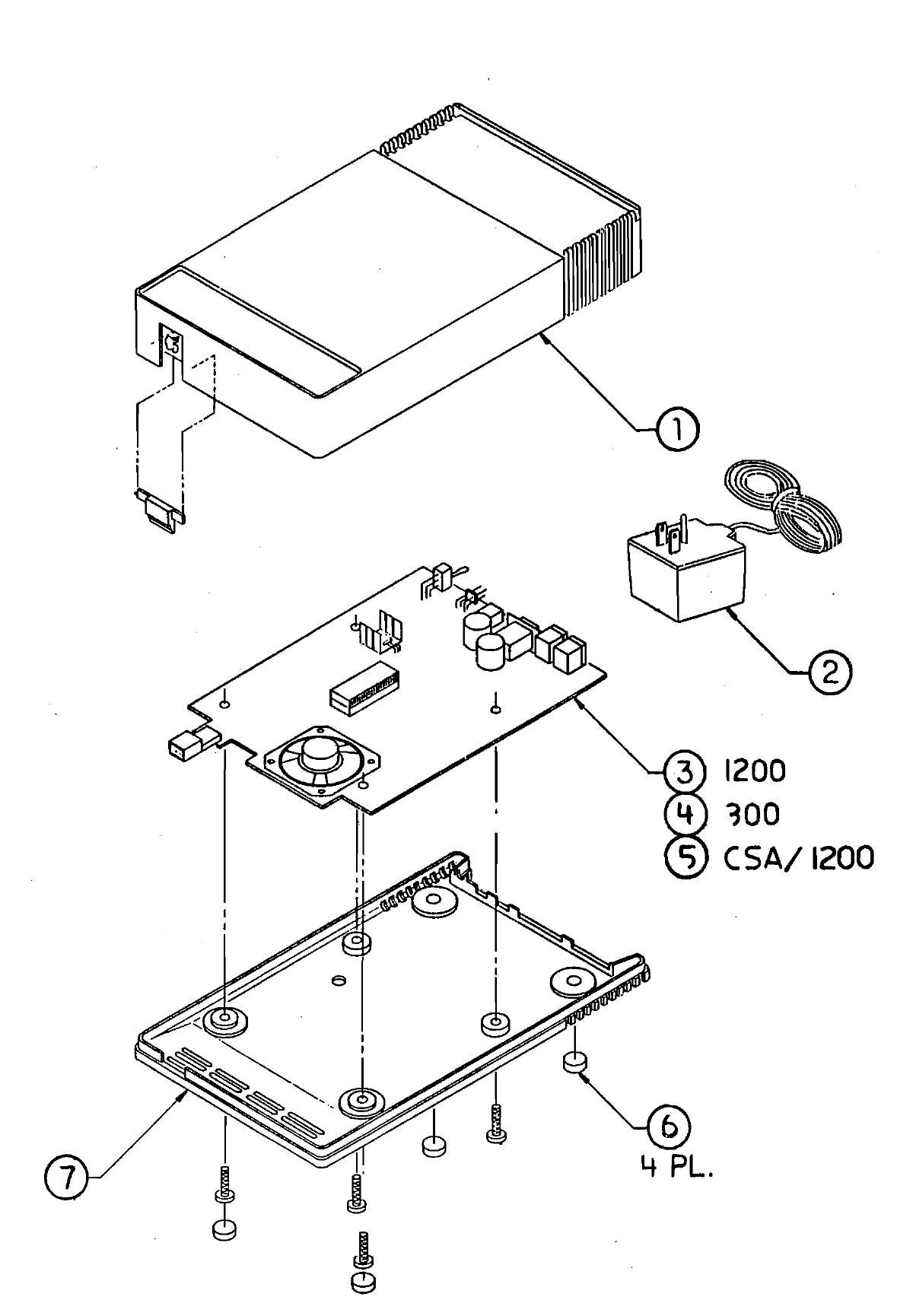

Apple's exploded view of the Apple 300/1200 modems (Figure 1, p. IPL.2 of the Modems tab of Apple Service Technical Procedures: Cross Family Peripherals, Volume One, Apr 1987 page): (1) top cover, (2) transformer, (3) Modem 1200 board, (4) Modem 300 board, (5) CSA/1200 board, (6) rubber feet, (7) bottom cover. Cropped from a 200 dpi render of the page.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:Apple Technical Procedures Modems (1991).pdf, from the archive.org item Apple_Service_Technical_Procedures_Cross_Family_Peripherals_Volume_1_April_1991 (retrieved 2026-10-02).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Manufacturer drawing used for repair reference.
