File:Apple Personal LaserWriter NT IO board (Apple service diagram).png
Size of this preview: 800 × 475 pixels. Other resolution: 827 × 491 pixels.
Original file (827 × 491 pixels, file size: 18 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

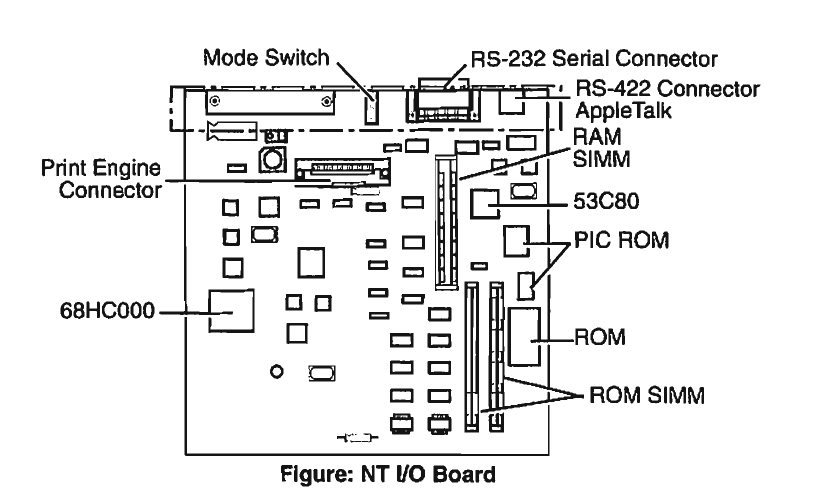

Apple service diagram of the Personal LaserWriter NT I/O board, showing the mode switch, RS-232 and RS-422 (AppleTalk) connectors, RAM SIMM, ROM and ROM SIMM sockets, 68HC000 processor and print engine connector.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Cropped from Apple Computer, Inc., Apple Service Guide for LaserWriter Printers, Volume I (072-0631-B, January 1992), Personal LaserWriter tab, I/O Board Identification, p. 8, hosted as File:Apple LaserWriter Printers Volume I.pdf (PDF p. 148). Rendered at 200 dpi.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Hosted for preservation and repair reference, with the source cited.
