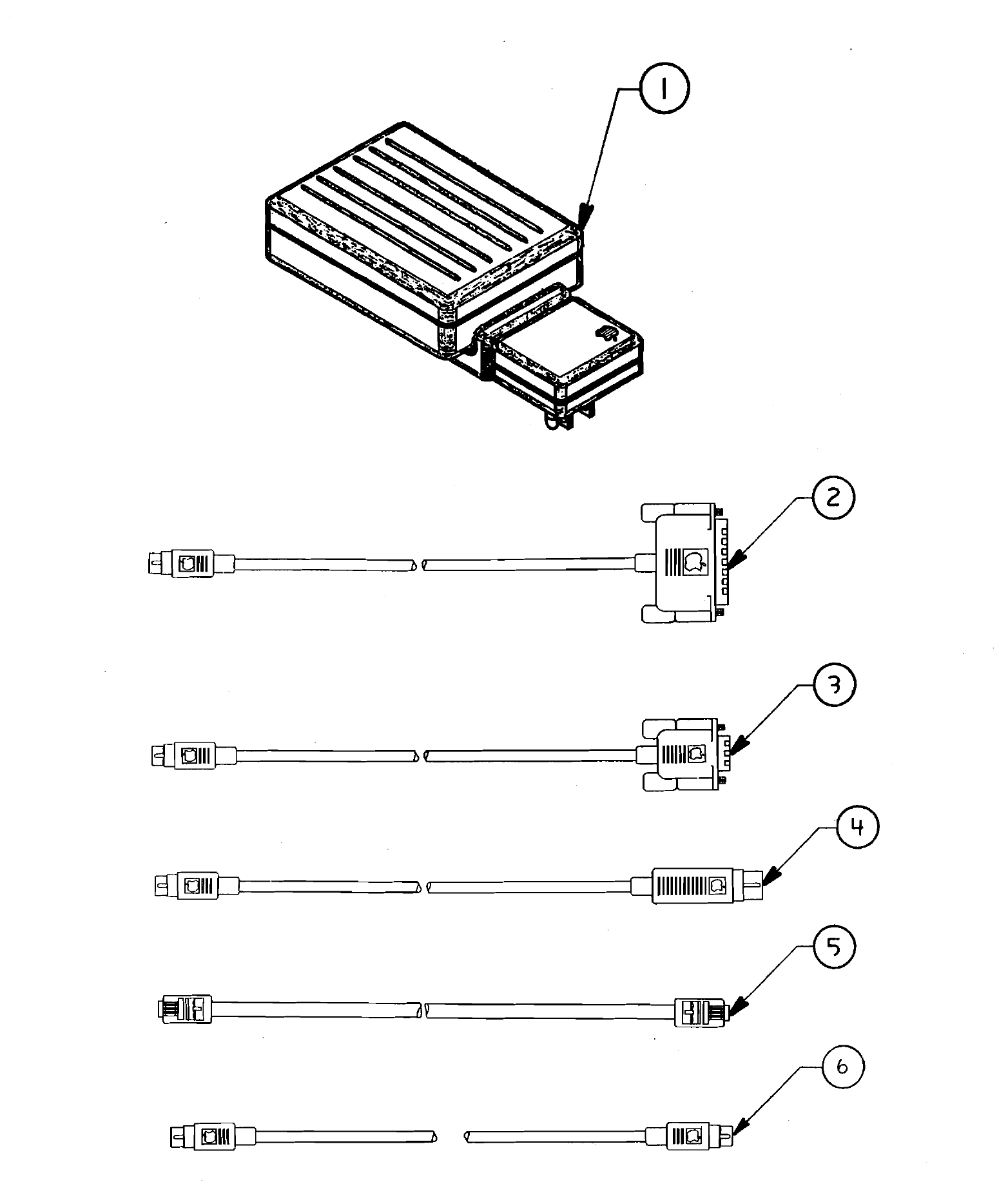

Figure 3 of the Illustrated Parts List in the Modems tab of Apple's Apple Service Technical Procedures: Cross Family Peripherals, Volume One (page IPL.6, rev. April 1987): (1) the Apple Personal Modem main body with its power connector plug head, 661-0313; (2) cable to Apple II, II Plus, IIe, Apple III and Macintosh XL, 590-0555; (3) cable to Macintosh, 590-0551; (4) cable to Apple IIc, 590-0554; (5) RJ-11 cable, 076-8075; (6) cable to Macintosh Plus, 590-0552. Part numbers are from the facing parts list (IPL.7, rev. December 1987). Rendered at 200 dpi from the hosted PDF and cropped.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:Apple Technical Procedures Modems (1991).pdf, PDF page 57.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Hosted for preservation and repair reference, with the source cited.
