File:Apple Scanner major assemblies (Apple Technical Procedures).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

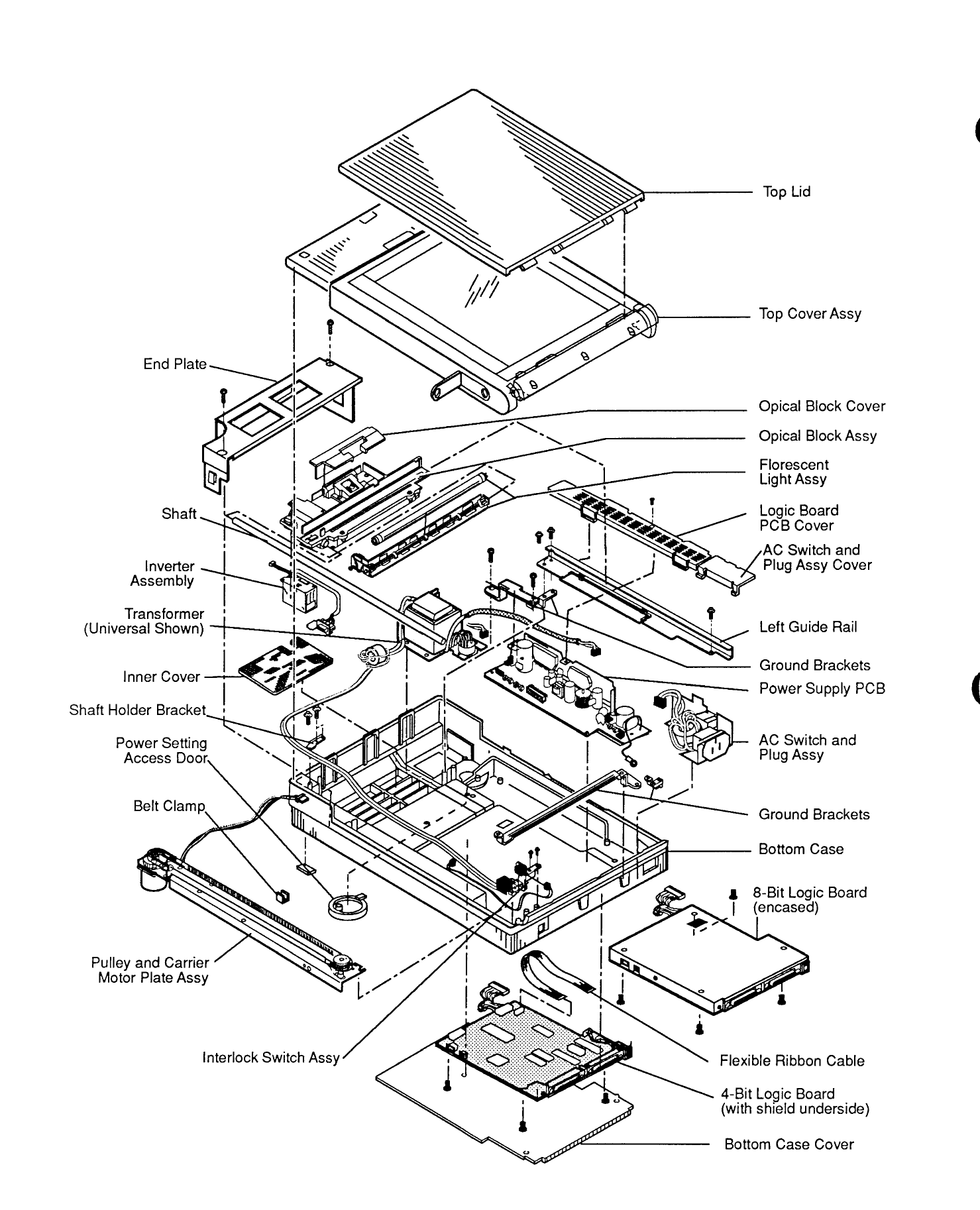

Figure 1-1, "Major Assemblies and Components of the Scanner", from Apple's Apple Scanner Technical Procedures (October 1991), page 1.4: an exploded view of the Apple Scanner and OneScanner showing the lid, top cover, optical block, fluorescent light assembly, inverter, transformer, power supply board, AC switch and plug assembly, pulley and carrier motor plate, interlock switch, and the 4-bit and 8-bit logic boards. Rendered at 200 dpi from the hosted PDF and cropped.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:Apple Scanner Technical Procedures (1991).pdf, PDF page 8.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Hosted for preservation and repair reference, with the source cited.
