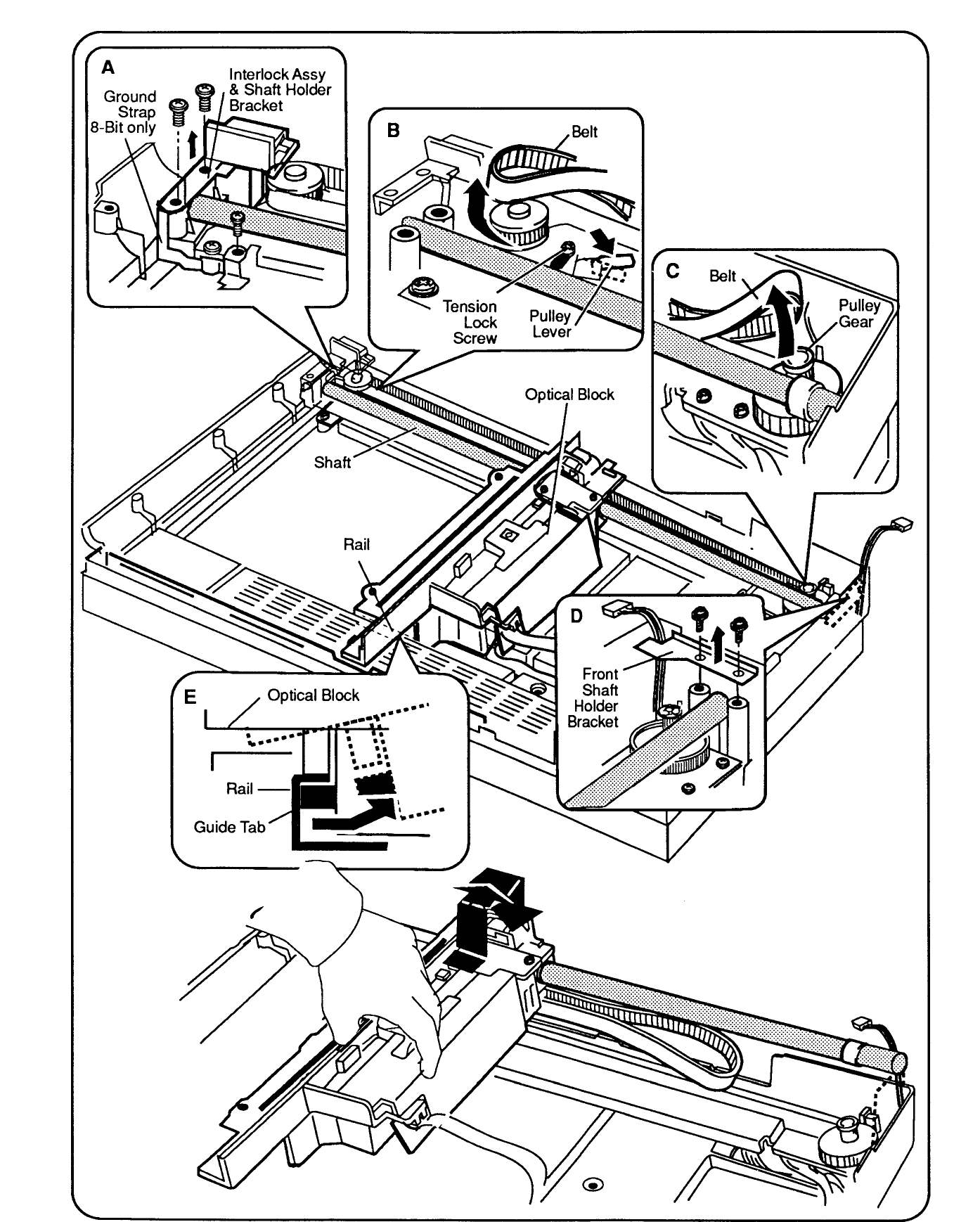

Figure 2-5, "Optical Block and Drive Belt", from Apple's Apple Scanner Technical Procedures (October 1991), page 2.9: the interlock and shaft holder bracket, the belt tension lock screw and pulley lever, the front pulley gear, the front shaft holder bracket and the optical block guide tab on its rail. Rendered at 200 dpi from the hosted PDF and cropped.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:Apple Scanner Technical Procedures (1991).pdf, PDF page 27.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Hosted for preservation and repair reference, with the source cited.
