File:Apple special tools index (Apple Service Guide, 1990).png
Summary
edit.png&action=edit§ion=1){kind=link}

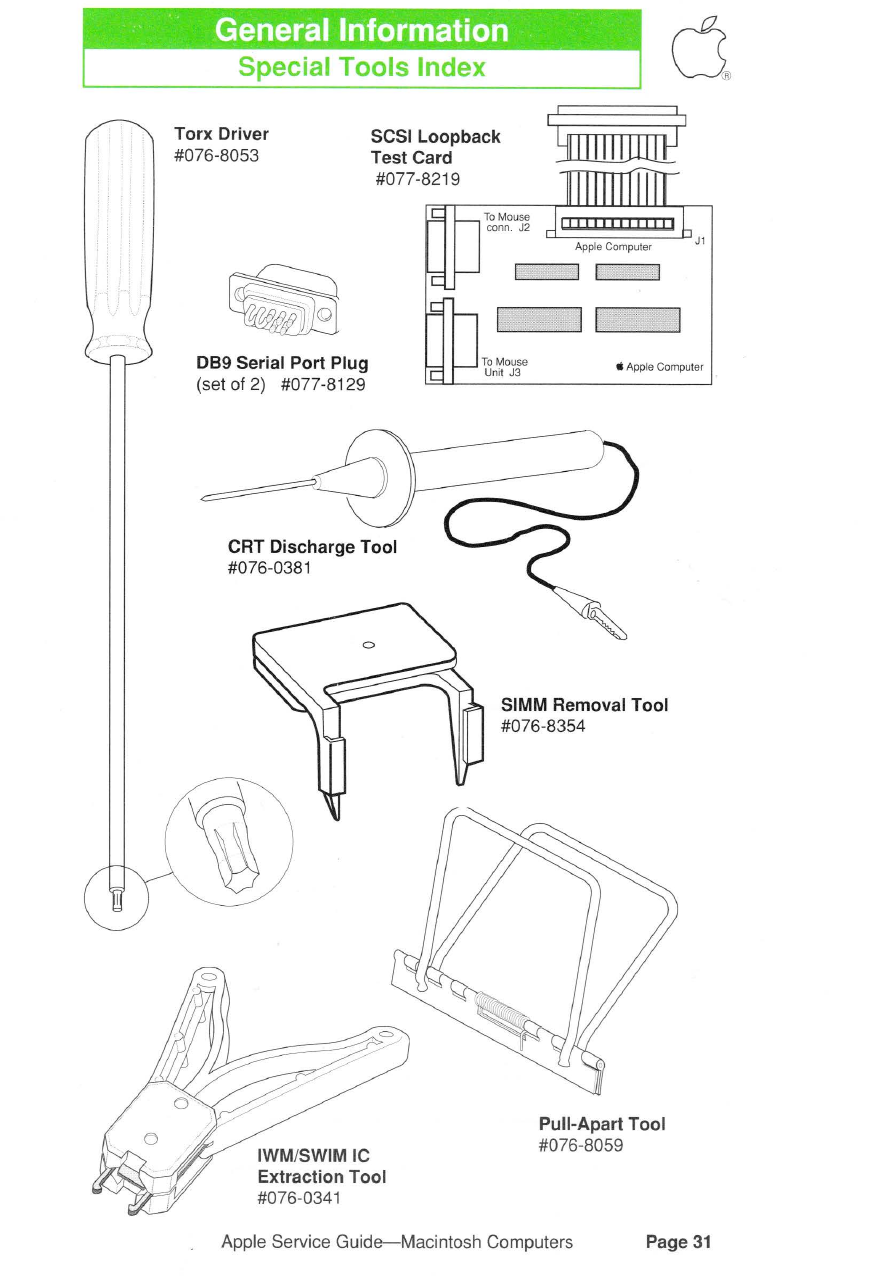

Page 31 of the General Information tab of Apple's Apple Service Guide for Macintosh Computers (1990), headed "Special Tools Index". It shows Apple's service tools with their part numbers: Torx driver 076-8053, SCSI loopback test card 077-8219, DB9 serial port plug (set of 2) 077-8129, CRT discharge tool 076-0381, SIMM removal tool 076-8354, pull-apart tool 076-8059 and IWM/SWIM IC extraction tool 076-0341. Rendered at 160 dpi from PDF page 125 of the hosted scan.
Source
edit.png&action=edit§ion=2){kind=link}
File:APPLE MACINTOSH SERVICE GUIDE VOL1 1990.pdf, PDF page 125; see Apple Macintosh Service Guide Volume 1 1990.
Author
edit.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
edit.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Hosted for preservation and repair reference, with the source cited.
