File:Macintosh 12-inch Monochrome Display exploded view (Service Source).png
Size of this preview: 417 × 599 pixels. Other resolution: 1,004 × 1,442 pixels.
Original file (1,004 × 1,442 pixels, file size: 209 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

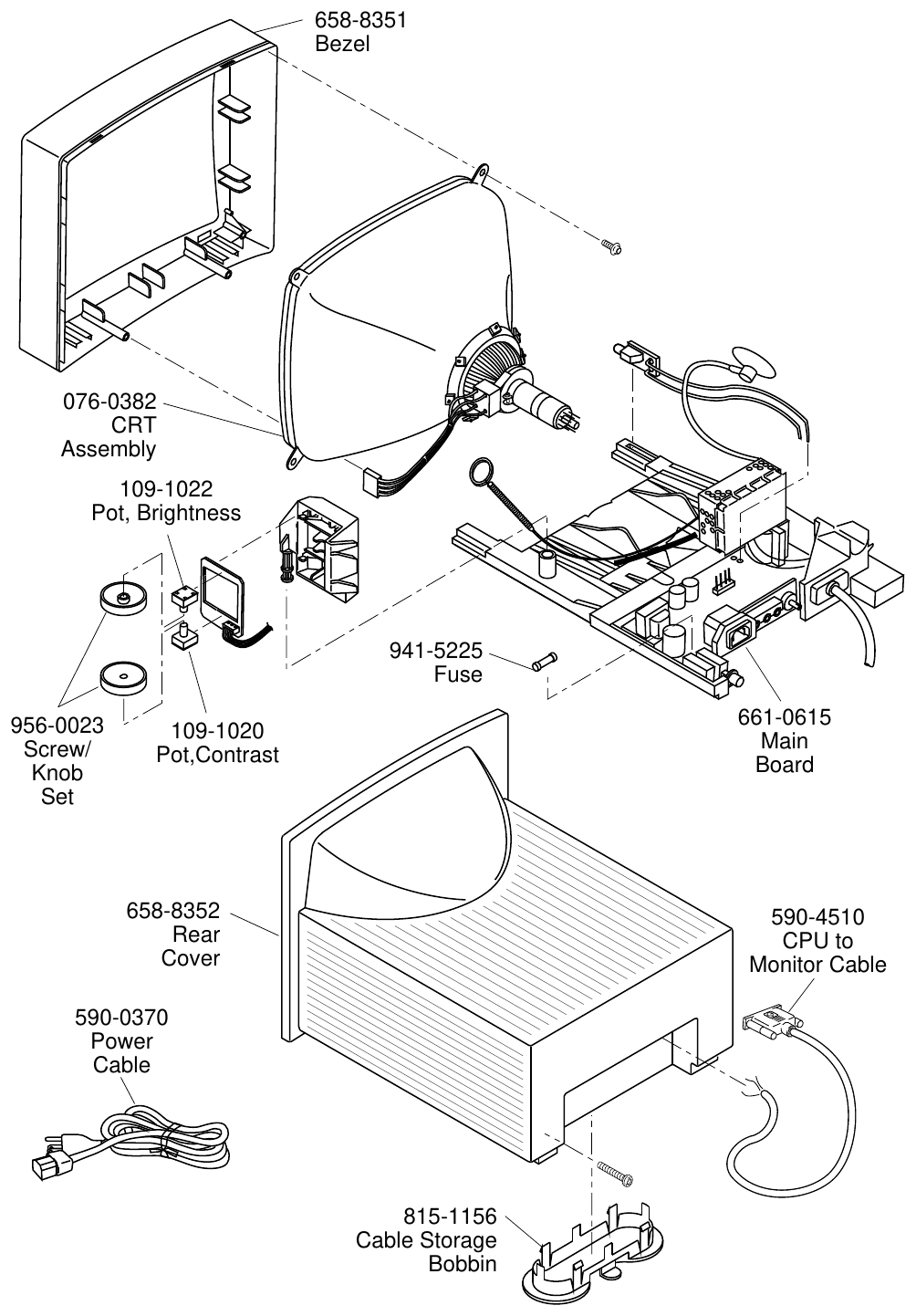

Exploded view of the Macintosh 12-inch Monochrome Display with Apple service part numbers. Rendered from page 61 of Apple's Macintosh 12" Monochrome Display Service Source, hosted as File:12 monochrome display.pdf. Used on Apple 12" Monochrome Display.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Apple Service Source (retrieved 2026-10-02).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed; used to identify the product and for repair reference, with the source cited.
