File:PowerBook 550c exploded view (Service Source).png
Size of this preview: 469 × 600 pixels. Other resolution: 1,445 × 1,848 pixels.
Original file (1,445 × 1,848 pixels, file size: 516 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

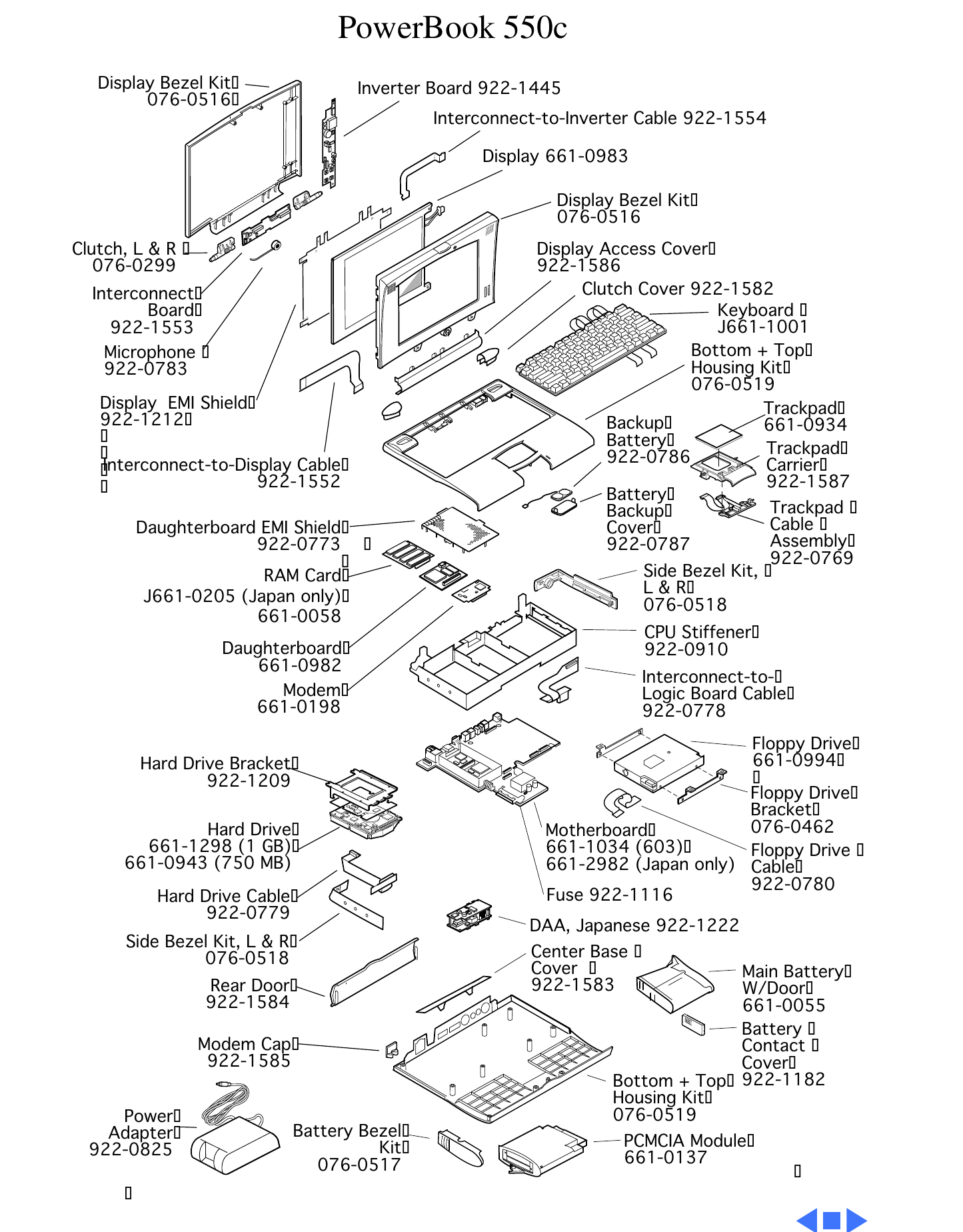

Apple's exploded view of the PowerBook 550c with service part numbers, including the daughterboard 661-0982, display 661-0983, inverter board 922-1445, motherboard fuse 922-1116 and main battery 661-0055 (Exploded View p. 1, PDF p. 175).
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered at 200 dpi from Apple's Macintosh PowerBook 550c Service Source, hosted here as File:PowerBook 550c Service Source.pdf (see PowerBook 550c Service Source), PDF p. 175.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
